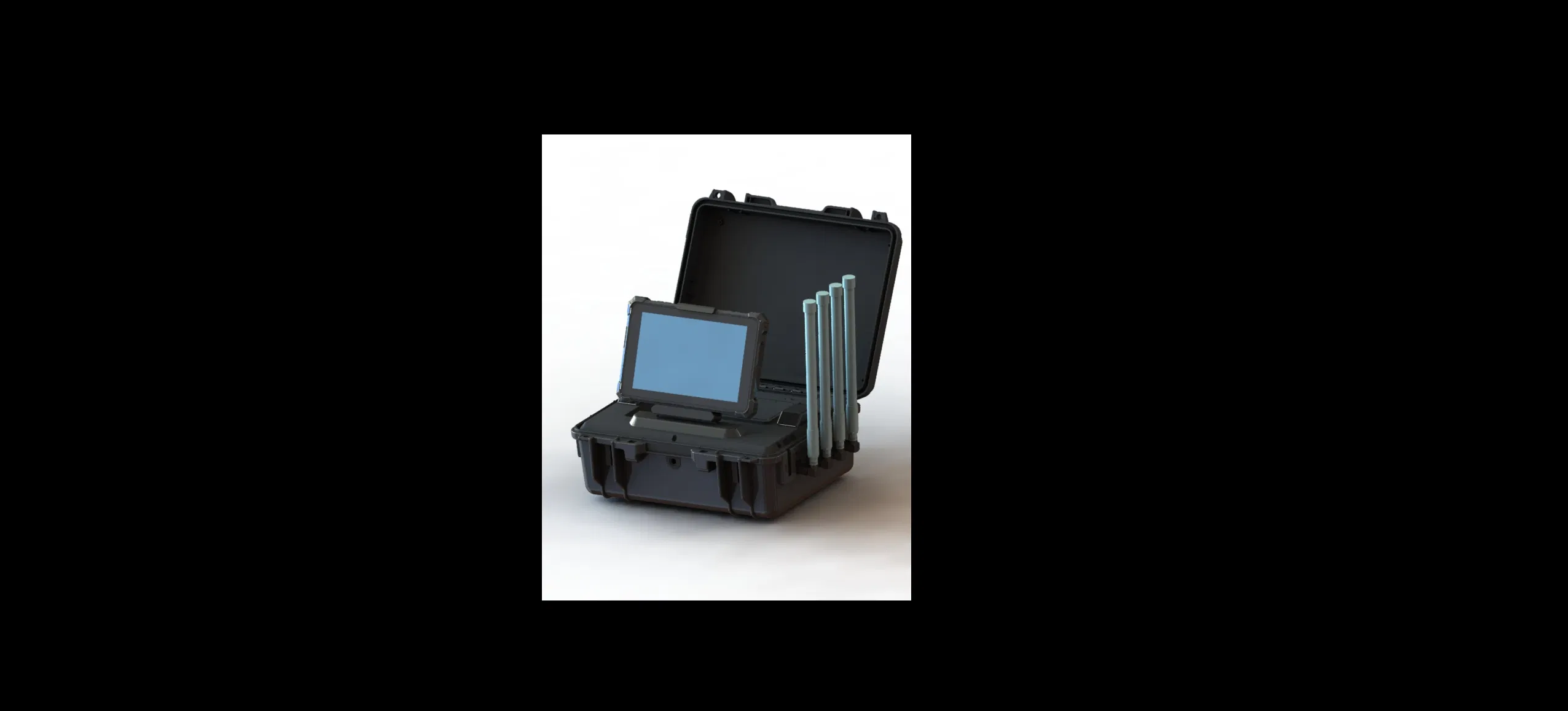

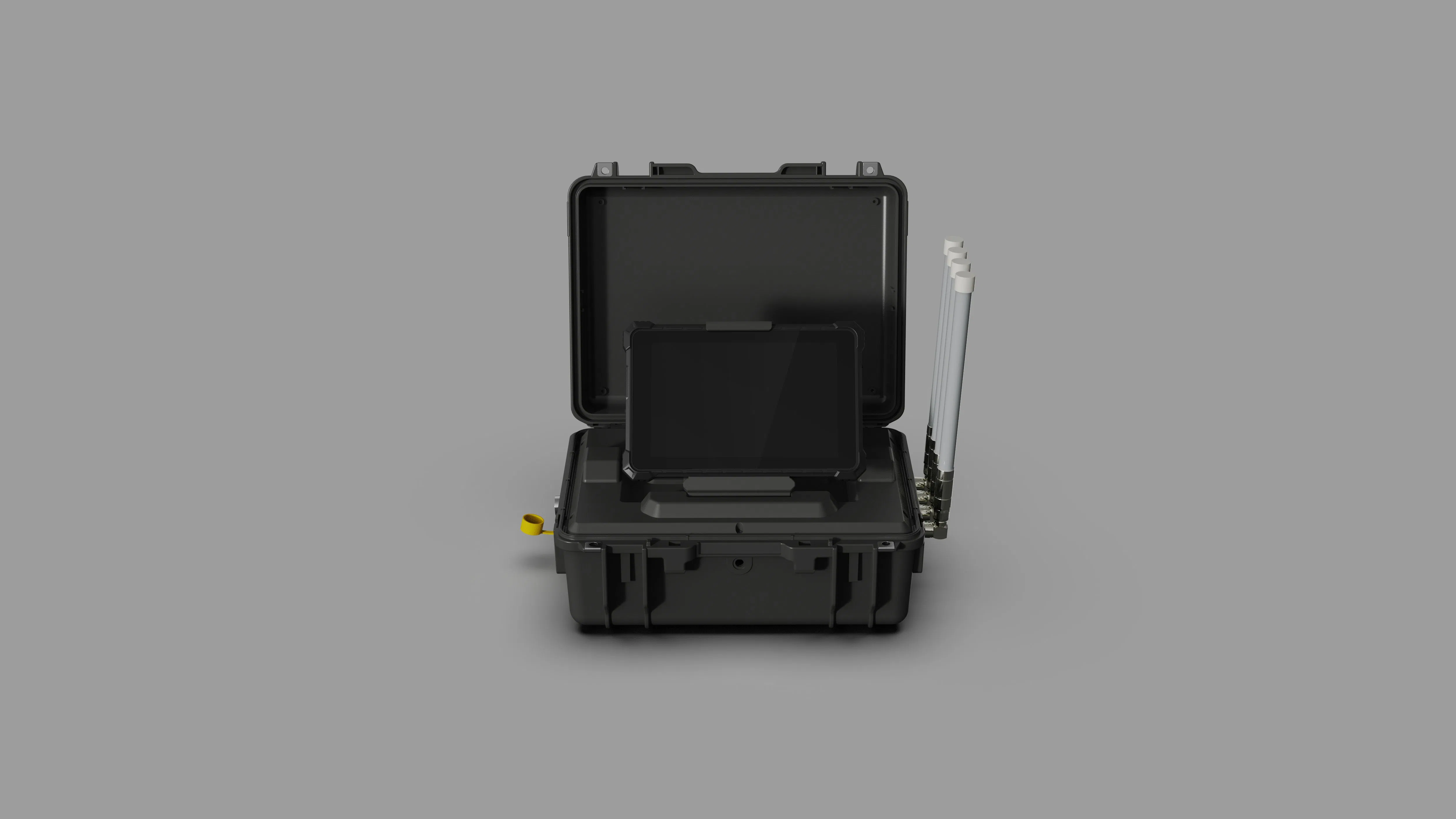

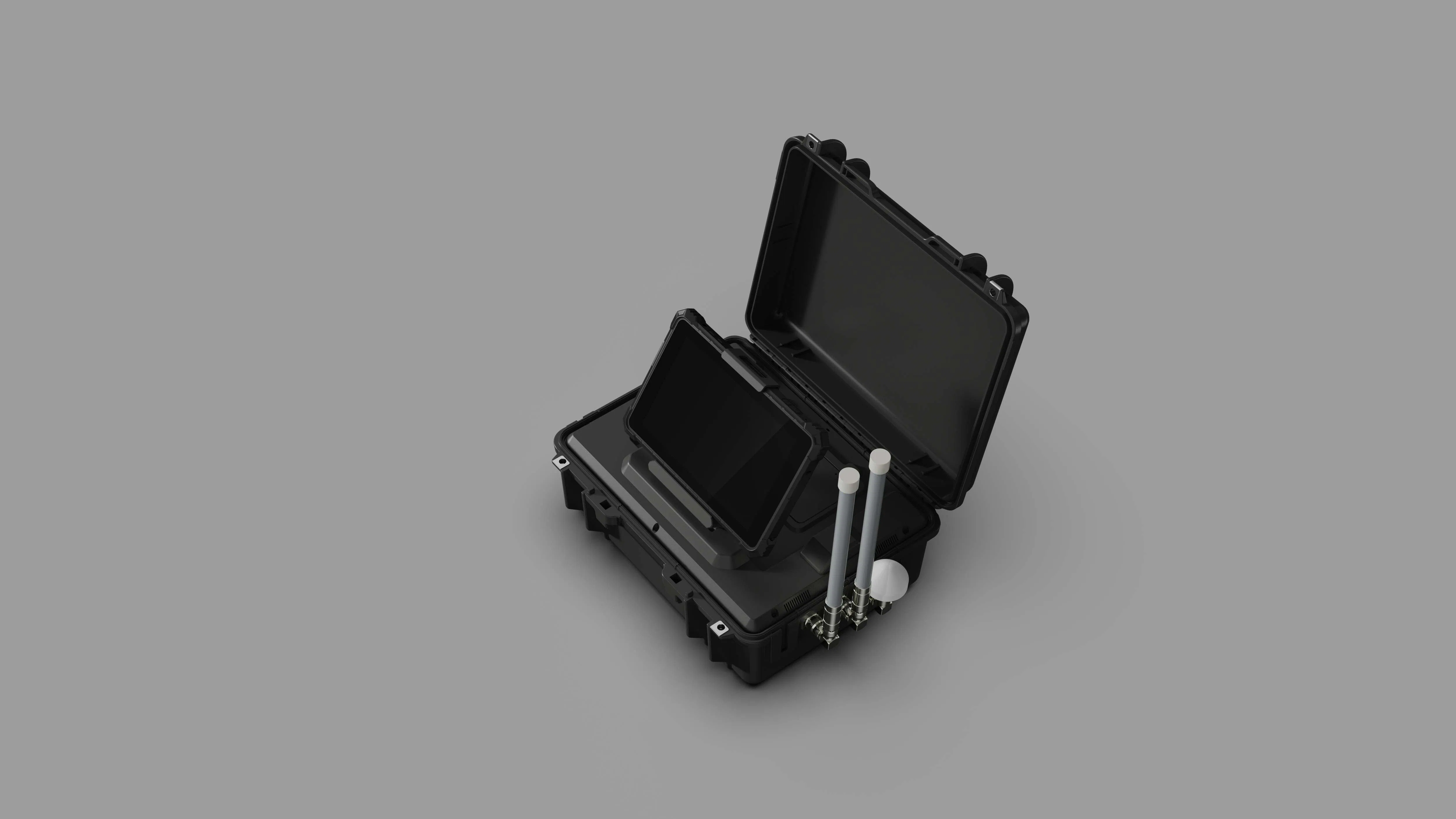

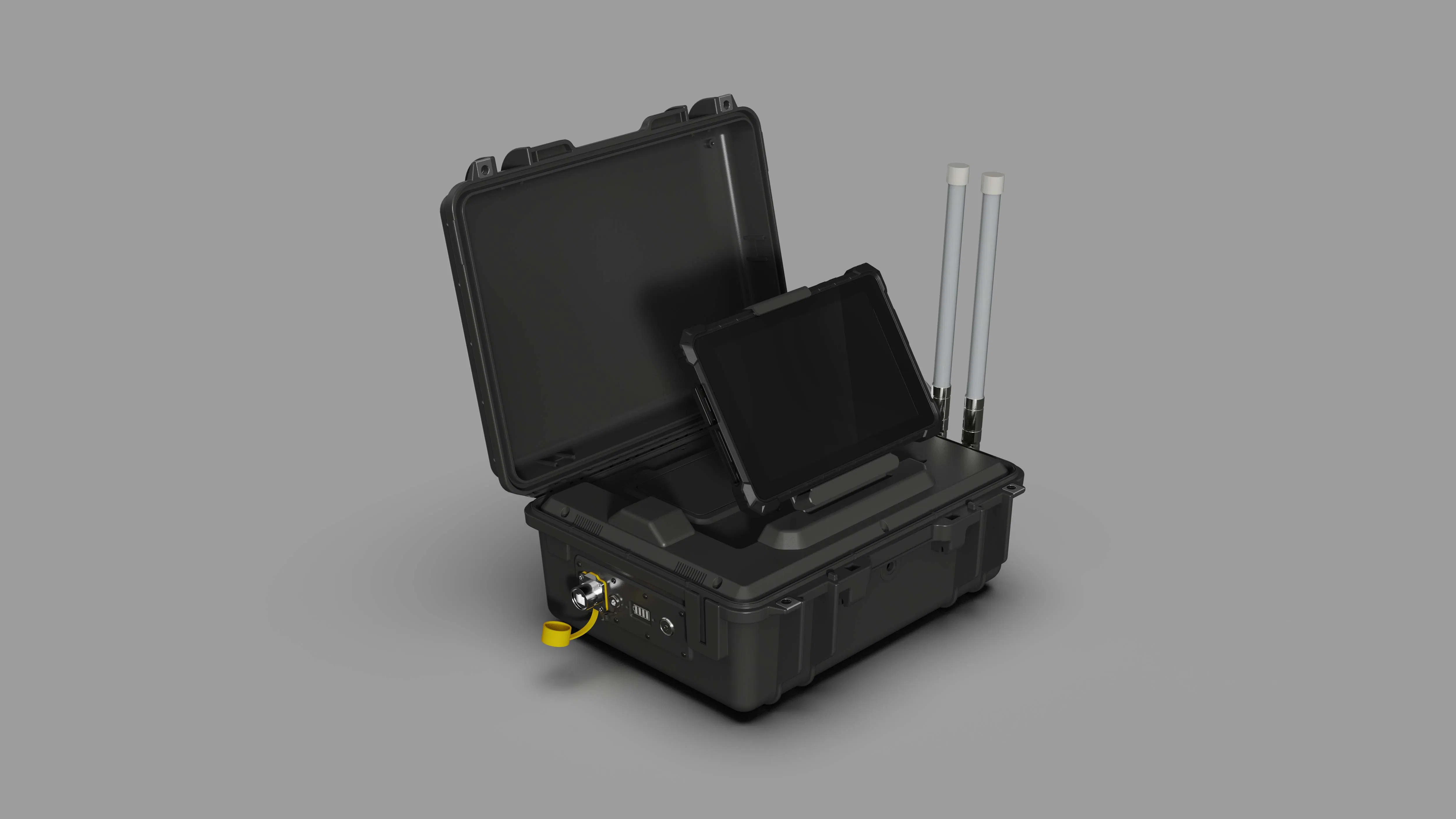

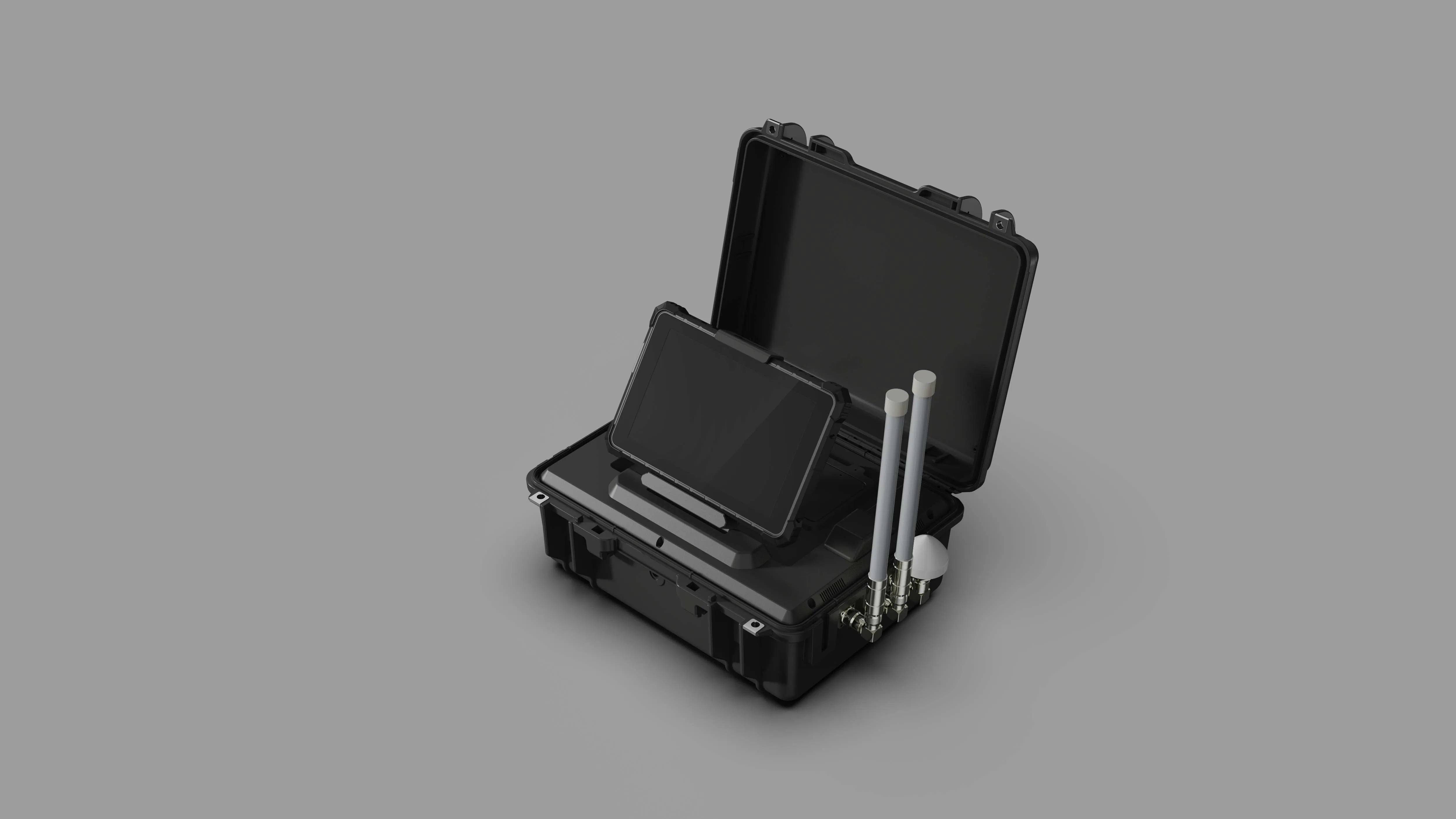

The 3km Range Single-Soldier Detector Device is a versatile, portable solution engineered to revolutionize long-range surveillance. Integrating advanced functionalities such as UAV detection & positioning, remote pilot detection & positioning, flight path display, and pre-set black-and-white list management, this device offers unparalleled precision. Through meticulous UAV signal analysis, it detects and decodes SN codes, models, positions, trajectories, time, distance, and other critical data of all UAVs within its effective range.
| Supported Frequencies | 900MHz, 1.5GHz, 2.4GHz, 5.8GHz (Expandable) |
| Operating Range | ≤ 3 km |
| Detectable UAVs | ≥ 10 sorties simultaneously |
| Screen Display | 13.3" (1920 × 1080) High Resolution |
| Battery Power | ≥ 4 h (built-in lithium battery) |
| Charging Method | DC12.6V/10A power adapter |
| Environmental Protection | IP 65 Rating |
| Power Consumption | ≤ 150 W |
| Operating Temp | -20ºC to 65ºC |
| Enclosure Size | 567 mm × 467 mm × 274 mm |
*Specifications are subject to change. Please confirm latest details with your provider.
Covering broad frequency bands, this device accommodates various drone types. Its expandable design ensures readiness for future updates. Capable of detecting over 10 drones simultaneously, it is ideally suited for environments with high air traffic.
Featuring a 13.3-inch screen with 1920×1080 resolution, this device offers crystal-clear, detailed displays. The large screen enhances operator situational awareness, while touch screen functionality and external keyboard support meet various operational demands.
The lightweight architecture (under 20kg) bolsters portability. Boasting an IP65 protection rating, it delivers superior dust and water resistance, guaranteeing reliable performance in harsh conditions from -20°C to 65°C.
