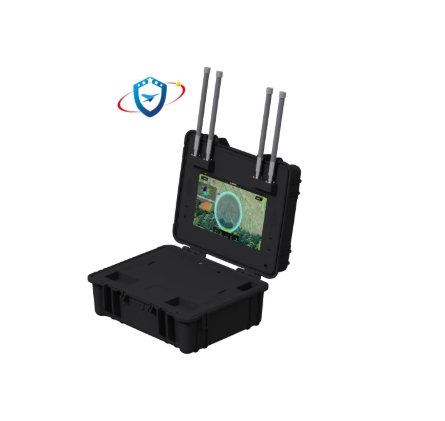

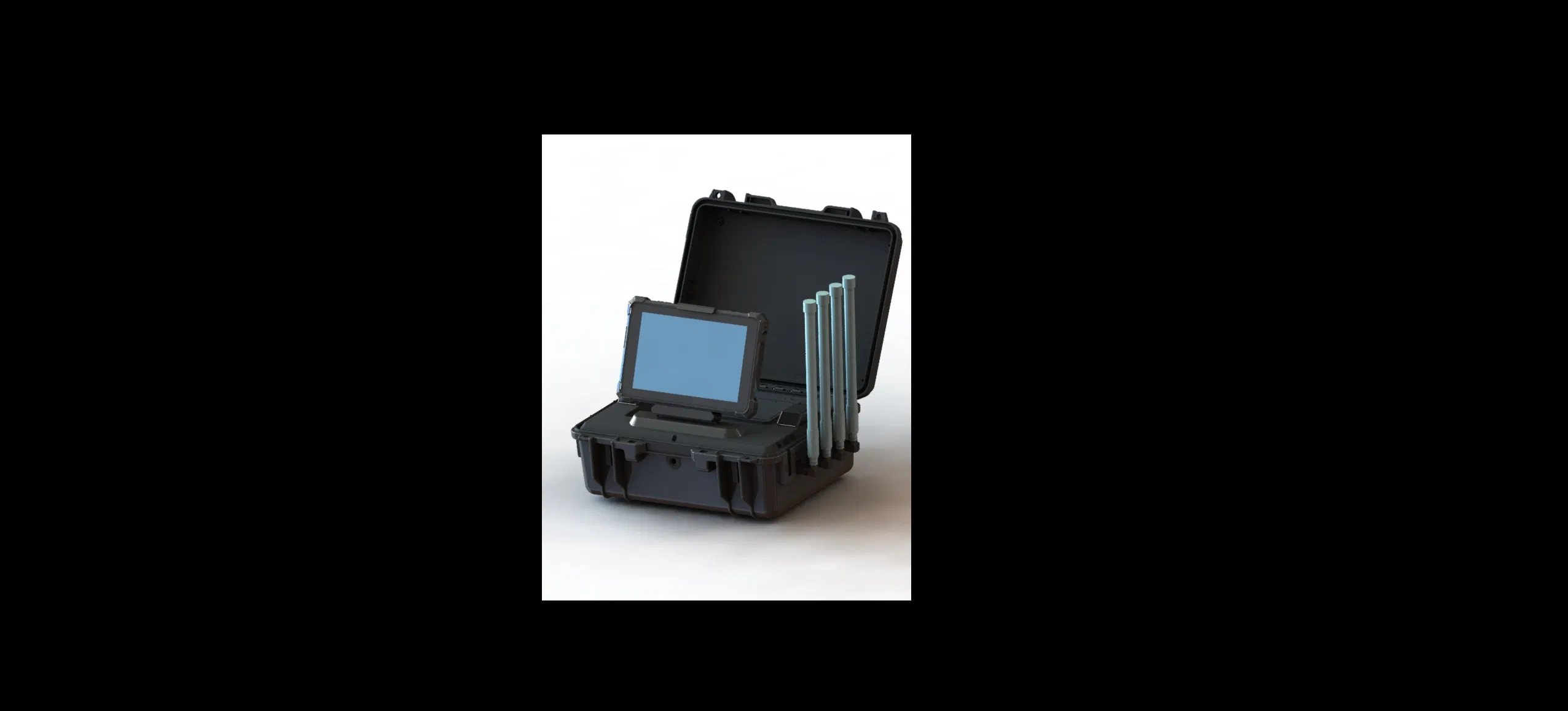

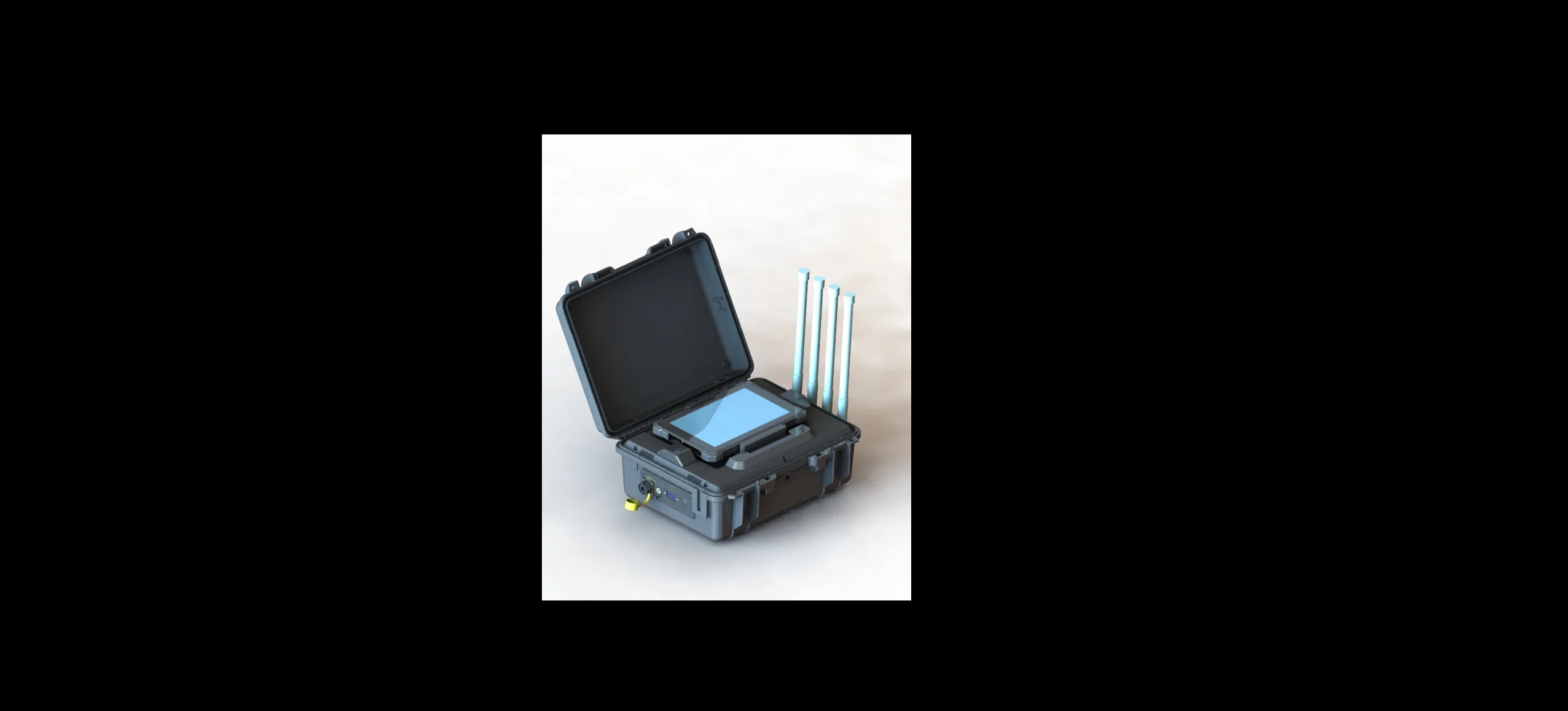

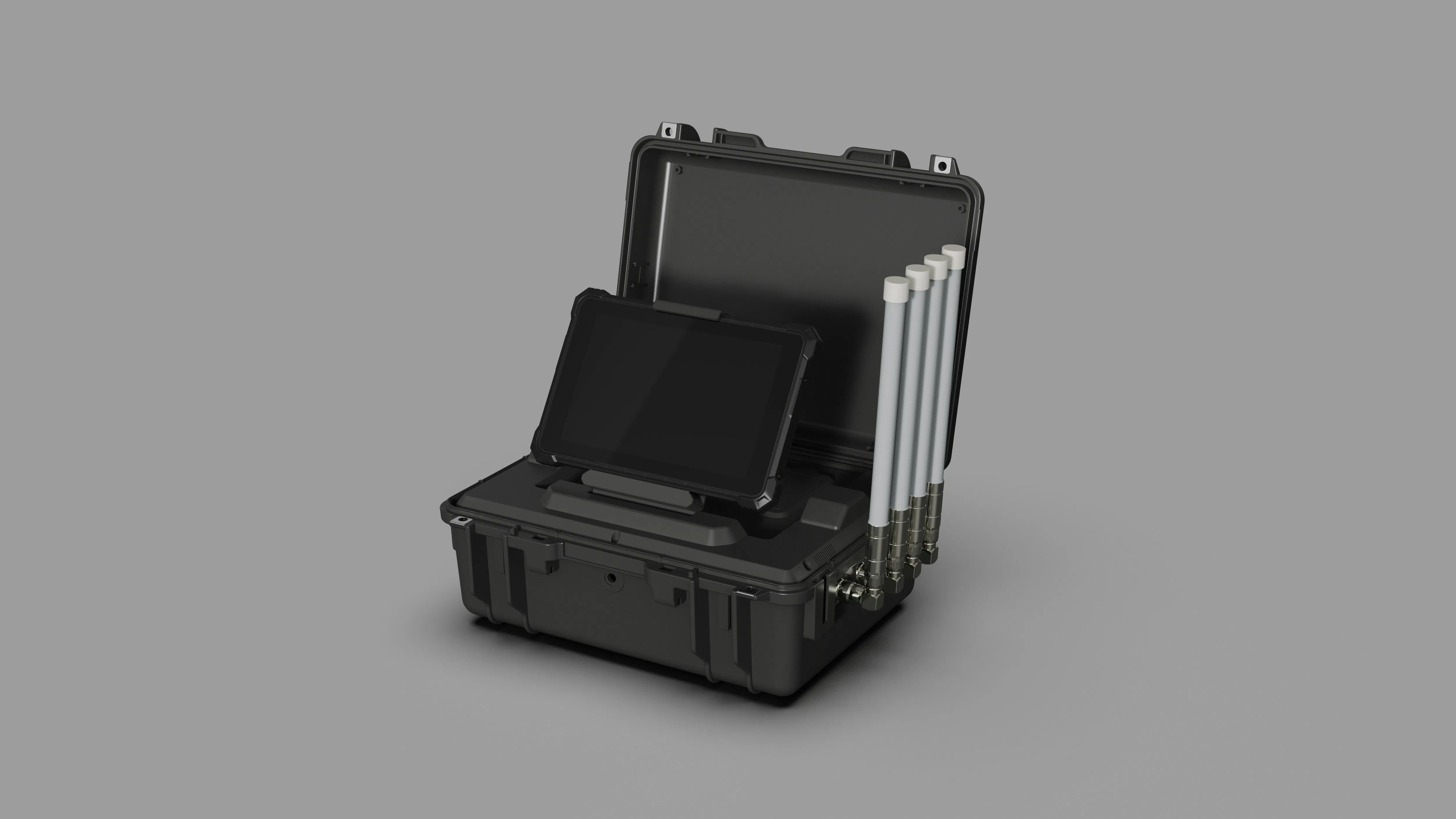

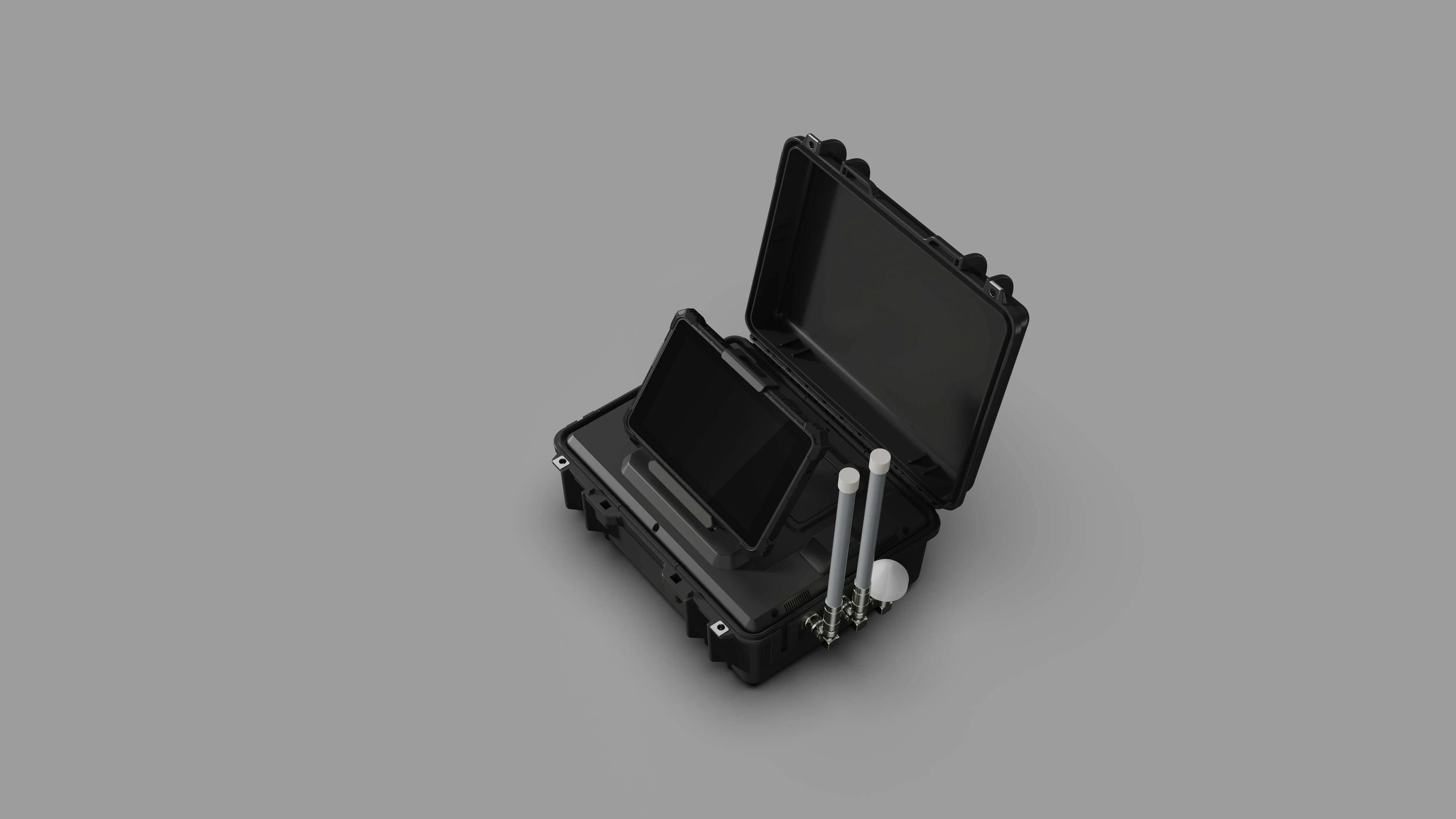

Low Altitude Detection and Defense System for Safety

Basic Specifications

Model NO.

R-Eye-370A

Application

Anti-Drone System/C-Uav

Operating Range

3km

Detectable Targets

10 Sorties Simultaneously

Screen Size

13.3" (1920 × 1080)

Battery Endurance

≥ 4 H (Built-in Lithium)

Protection Rating

IP 65 (Box Closed)

Power Consumption

≤ 150W

Weight

20 Kg (System Included)

Dimensions

567mm x 467mm x 274mm

Product Introduction

The Low Altitude Defense Positioning Detector stands as a pinnacle of portable surveillance technology, offering unparalleled long-range capabilities. This sophisticated device excels in multiple functions, including UAV detection and positioning, UAV remote pilot detection and positioning, flight path visualization, and comprehensive black-and-white list management.

Through meticulous analysis of UAV signals, it precisely identifies the SN code, model, location, trajectory, time, distance, and other critical data within its surveillance range. It also provides detailed location information of the UAV remote pilots.

Key Benefits

✓ Trackable Trajectories

✓ Black-and-white List Support

✓ Portable Deployment

✓ Superb Battery Endurance

Technical Specifications

Supported Frequency	900MHz, 1.5GHz, 2.4GHz, 5.8GHz (expandable)
Operating Range	≤ 3 km
Simultaneous Detection	≥ 10 sorties
Screen Resolution	13.3 inch (1920 × 1080)
Battery Capacity	≥ 4 h (built-in lithium battery)
Charging Method	DC12.6V/10A power adapter
Protection Level	IP 65 (box closed state)
Operating Temp	-20ºC to 65ºC
Enclosure Size	567 mm × 467 mm × 274 mm ± 5mm

*Note: Product specifications are subject to change. Please confirm details during consultation.

Performance Analysis

• Multiple Frequency Bands: Operates across 900MHz, 1.5GHz, 2.4GHz, and 5.8GHz. Its expandable design ensures future adaptability.

• Target Capacity: Designed for high-traffic airspaces, detecting over 10 drone sorties simultaneously.

• User Interface: High-resolution 13.3-inch screen with touch functionality and external keyboard support for various defense scenarios.

• Energy Efficiency: Power consumption below 150W aligns with modern sustainability goals.

Applications

▶ Oil & Petrochemical Security

▶ Power Industry Counter-terrorism

▶ Government & Security Agencies

▶ Civil Aviation & Logistics Bases

▶ Large-Scale Sporting Events

▶ Urban No-Fly Zone Airspace

Product Gallery

Professional Qualifications

Field Applications

Comprehensive Support for Partners

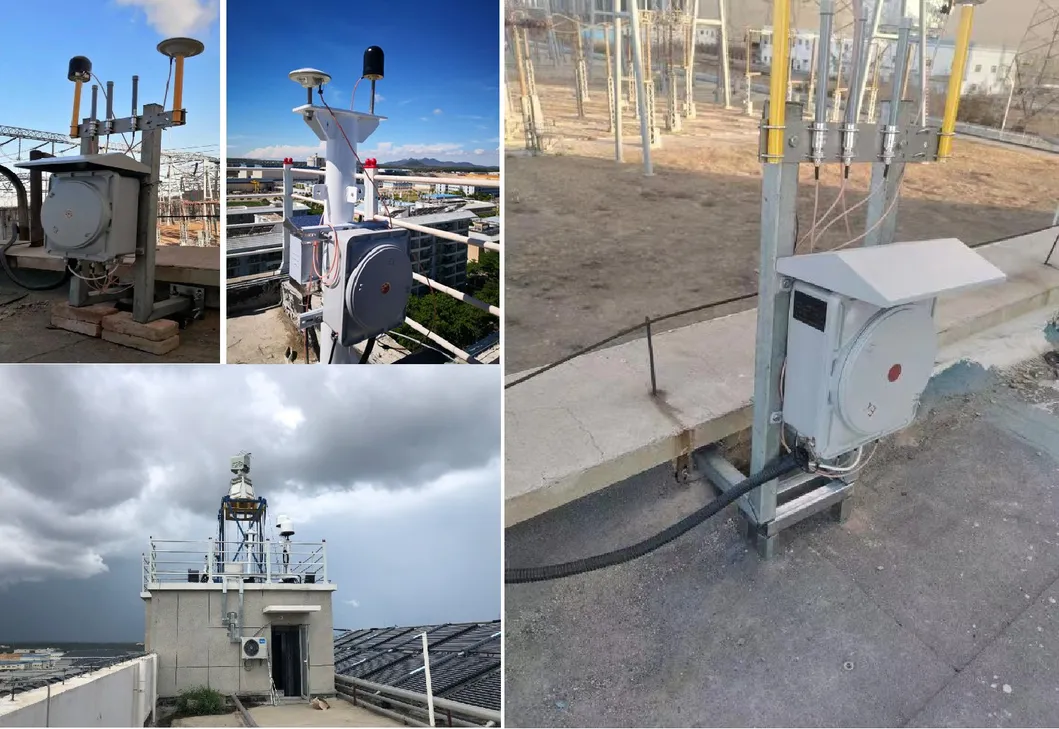

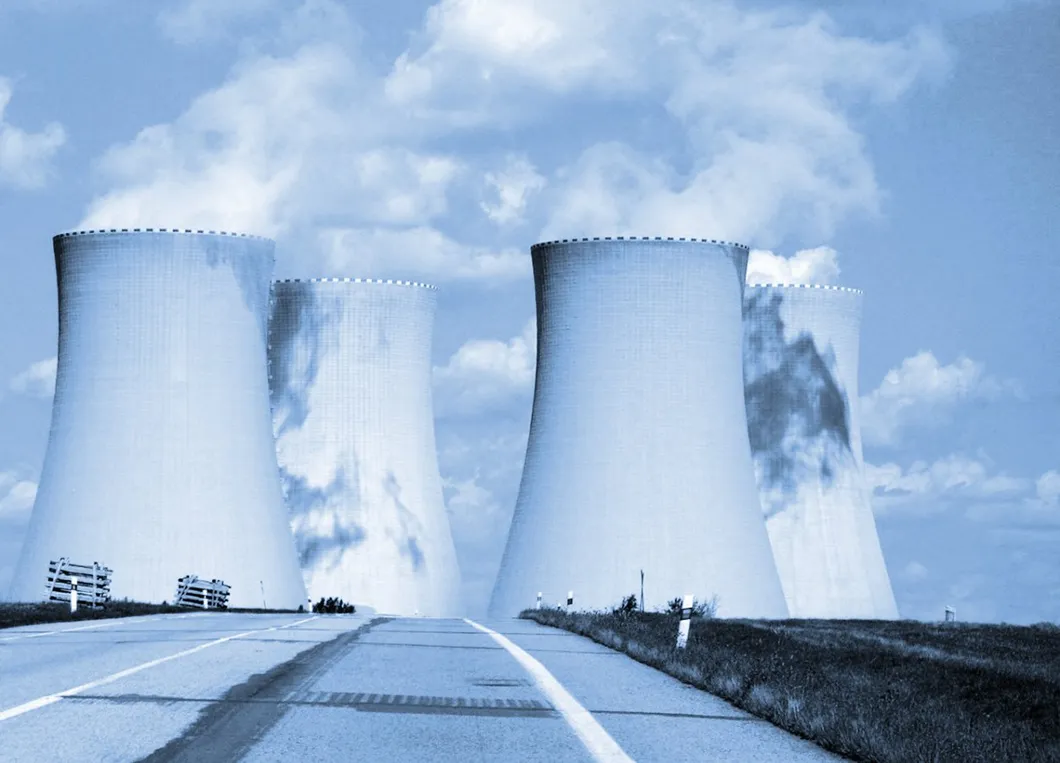

Ensuring Security in the Power Industry

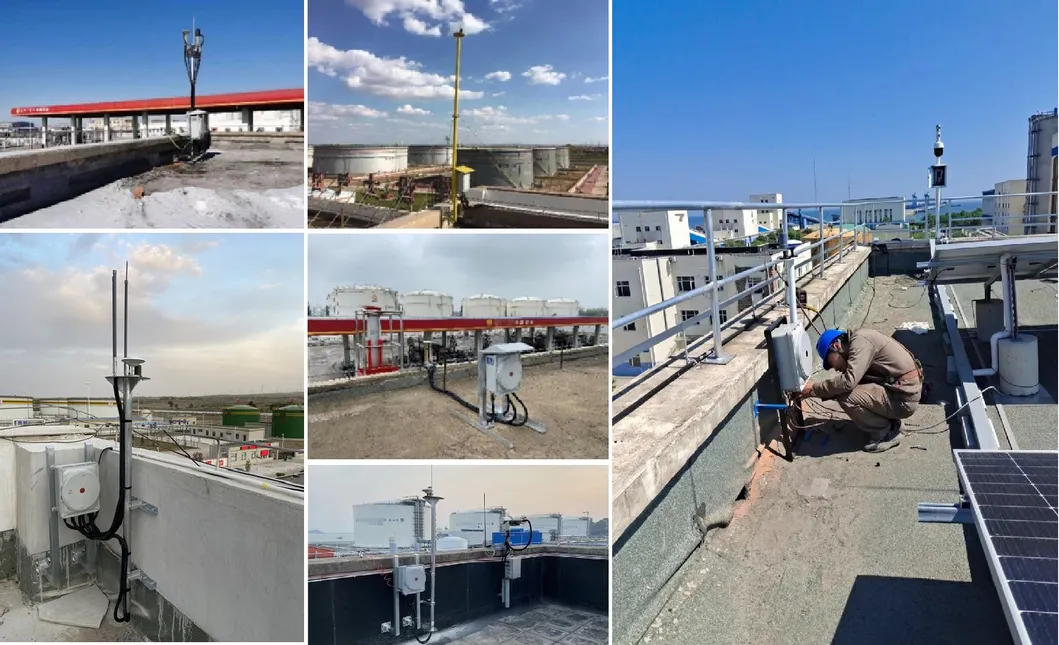

Security in Oil and Petrochemical Industry

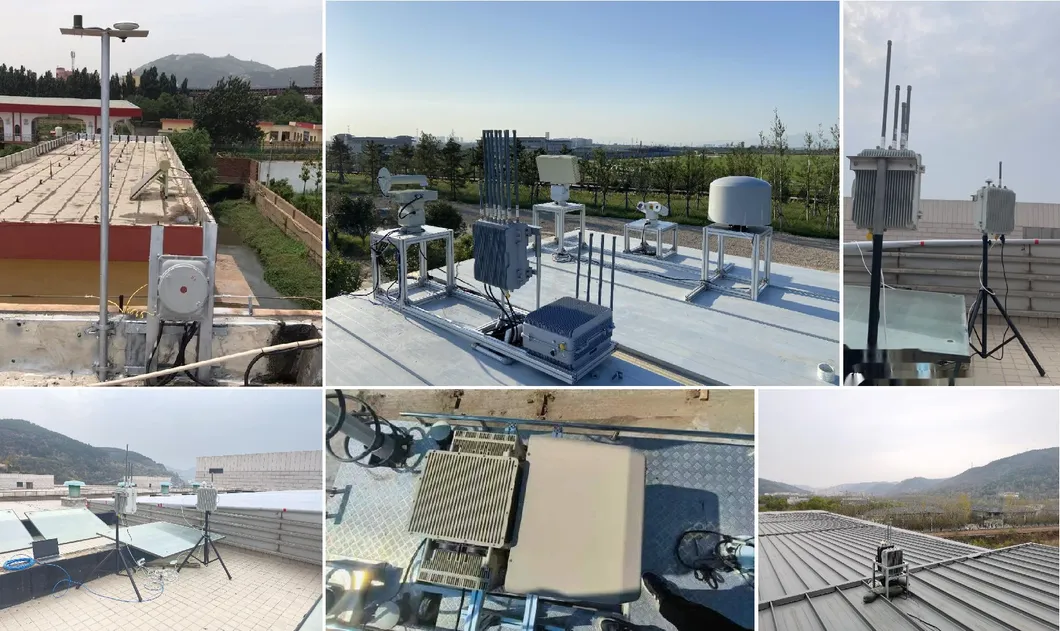

Border Defense and Large-Scale Event Security

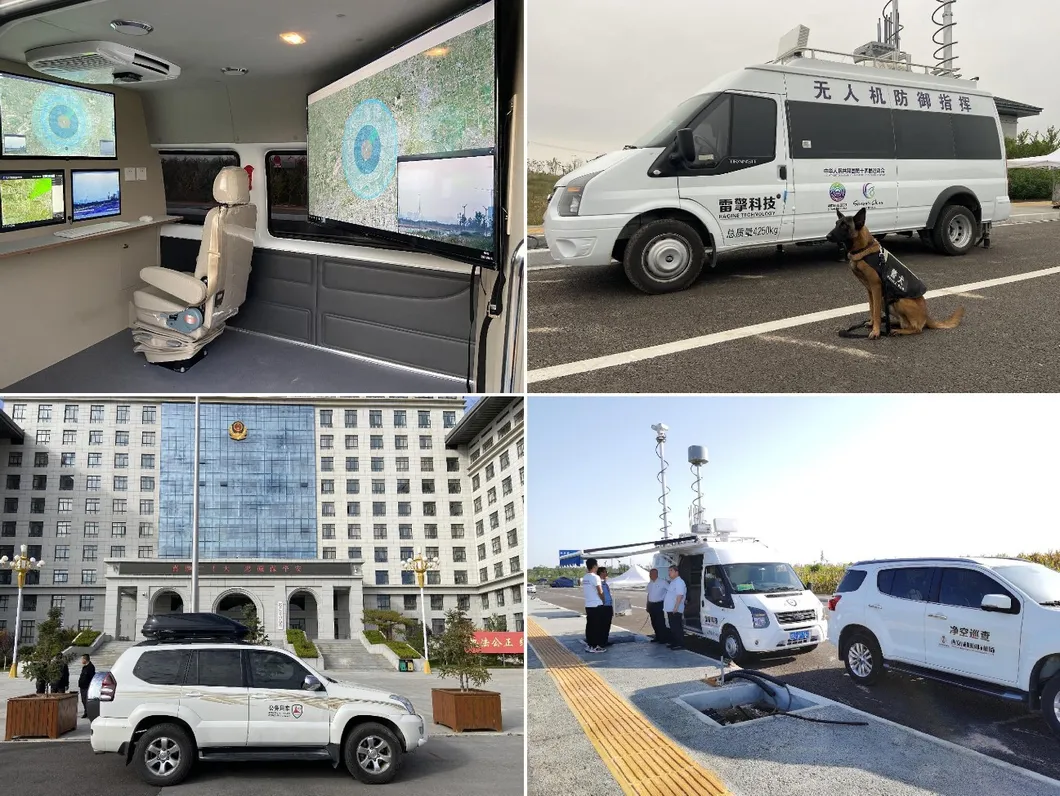

Countermeasure Vehicle Integration

FAQ

What types of drones can the system detect?

The system is capable of recognizing mainstream models including DJI, AUTEL, self-made DIY drones, WiFi drones, and FPV drones.

What is the detection range of the anti-drone system?

The detection range generally covers 1 to 5 kilometers depending on the environment and model. For R-Eye-370A specifically, it features an operating range of 3km.

Can the equipment be used in extreme weather?

Yes, our products are designed to operate in various weather conditions, including rain, snow, and high temperatures, with an IP65 protection rating when closed.

Is specialized training necessary to operate the device?

The systems are intuitively designed for ease of use. However, we provide comprehensive training and support to ensure all users can operate the equipment with maximum efficiency.

Do you support OEM/ODM customization?

Absolutely. We offer both ODM and OEM services, allowing customization of brand logos, enclosure colors, and specific frequency bands as per request.

What is the response time of the system?

Our systems boast an impressive response time, typically detecting and identified threats within mere seconds.
