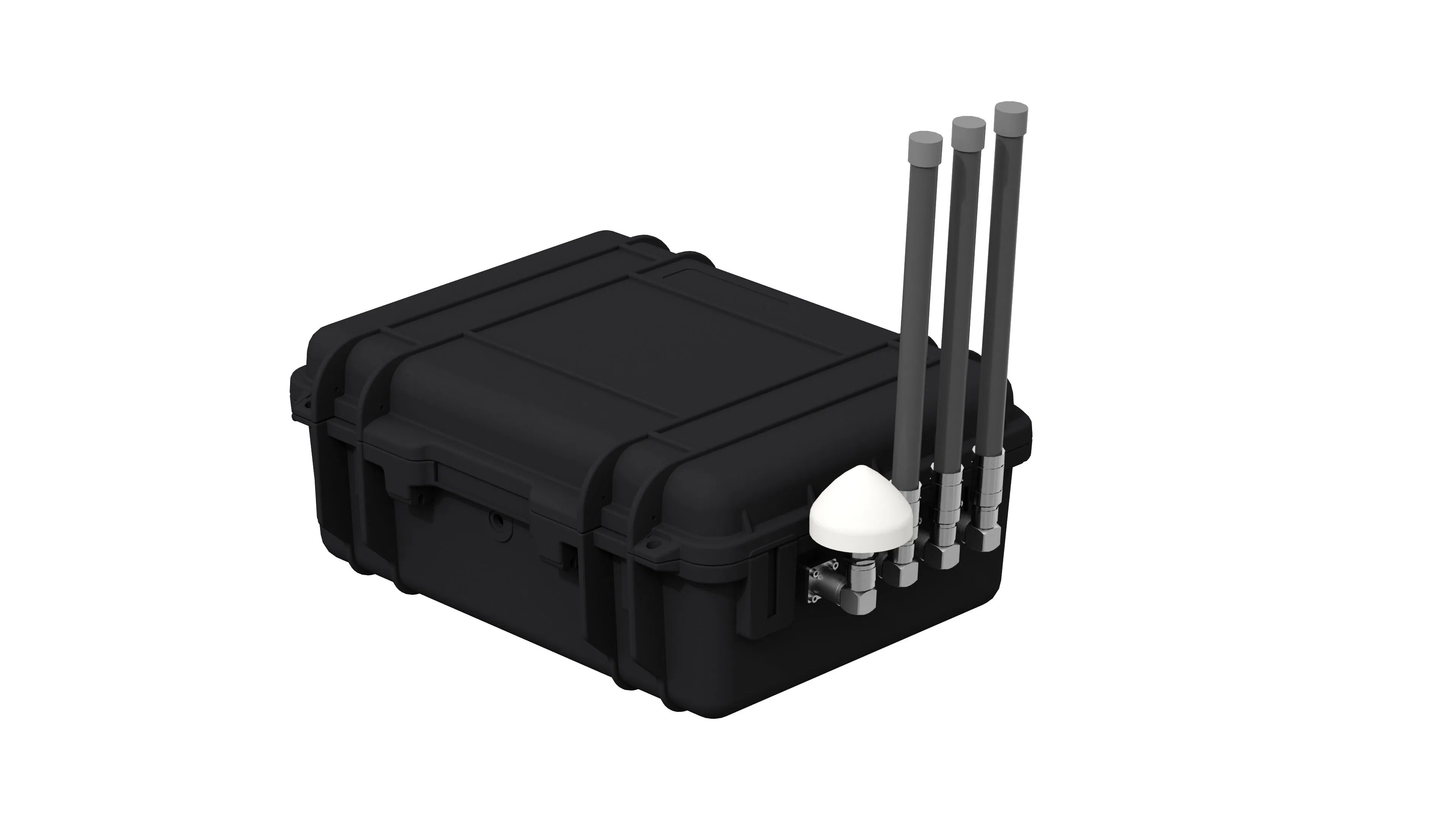

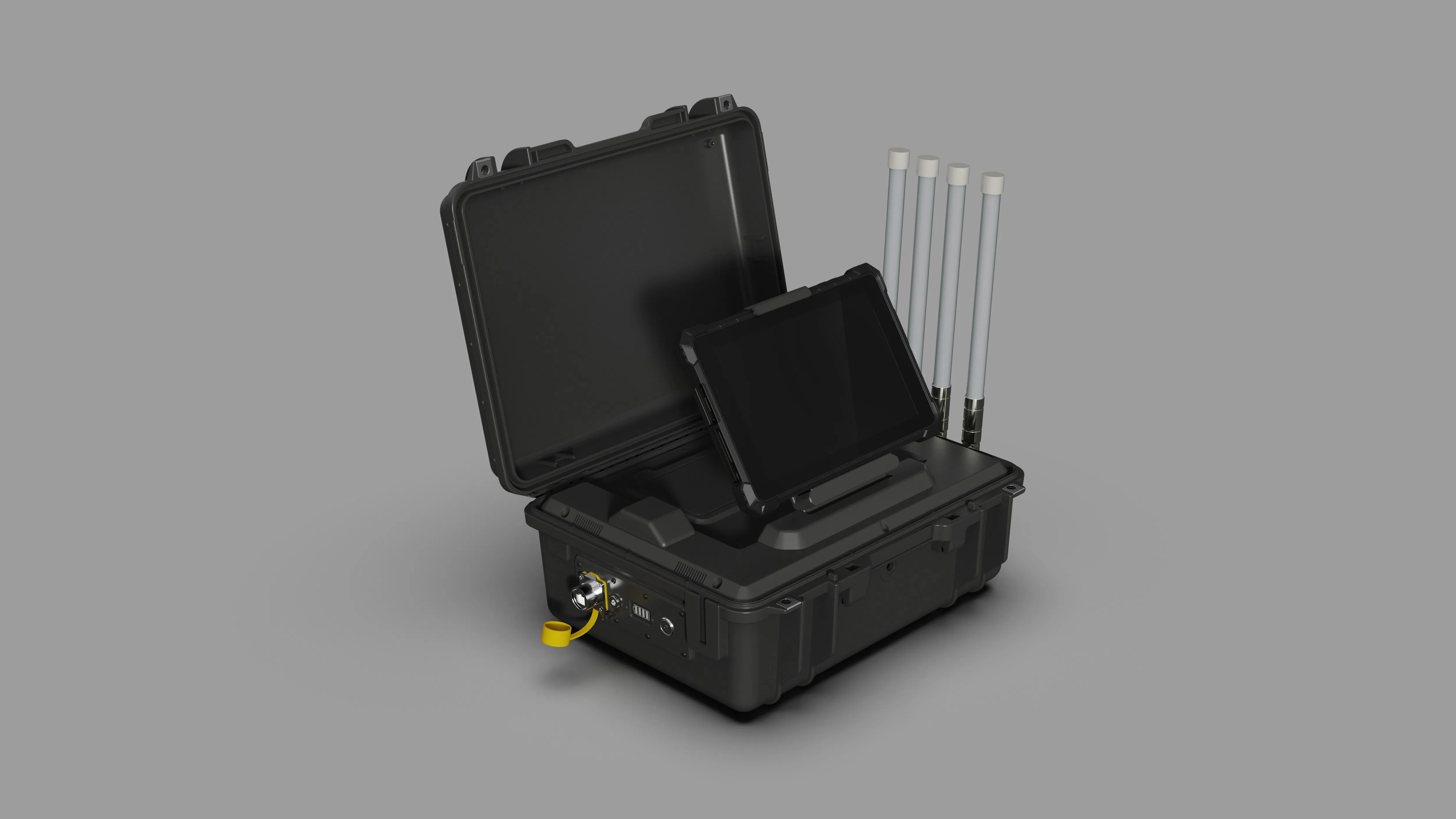

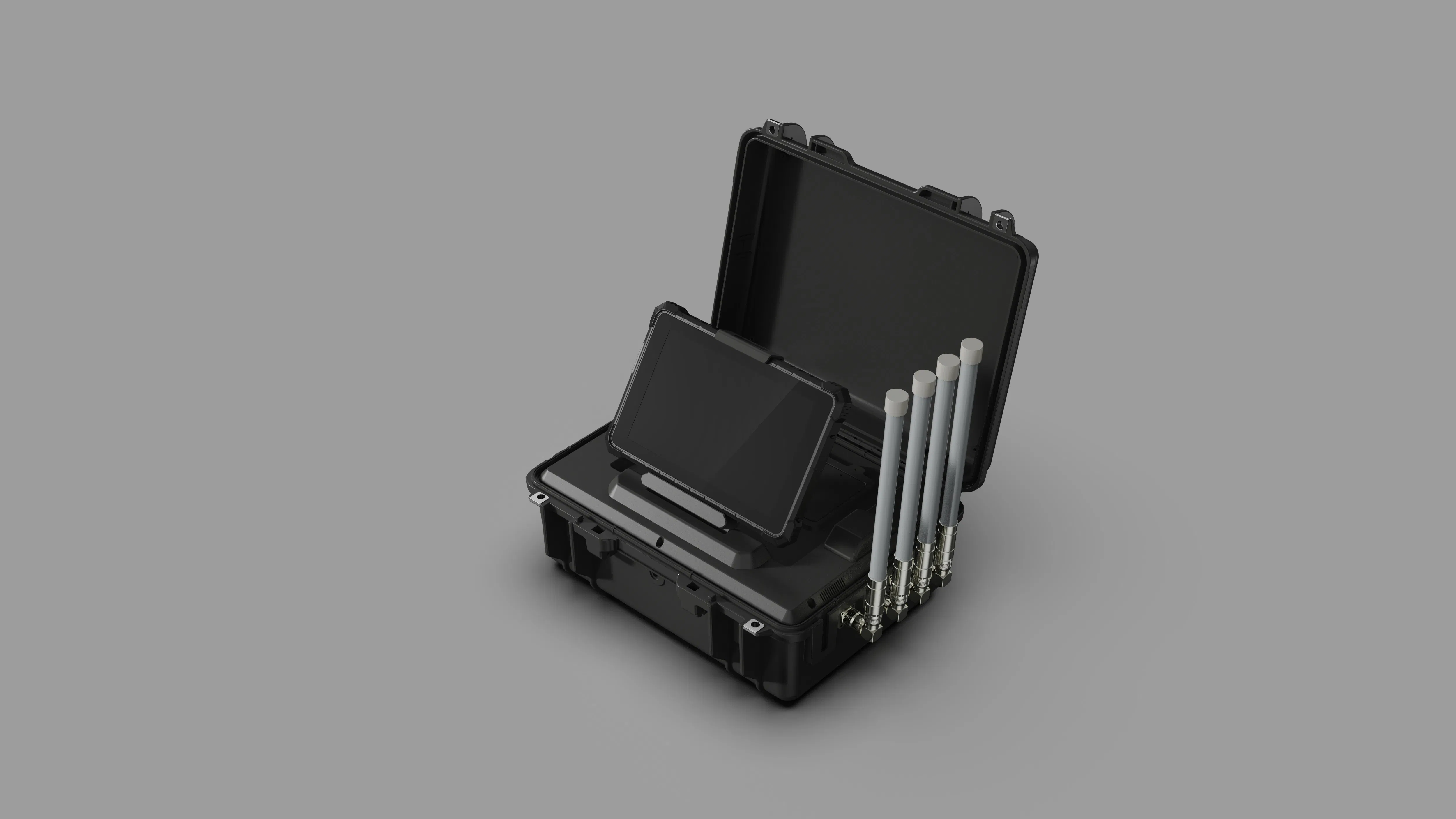

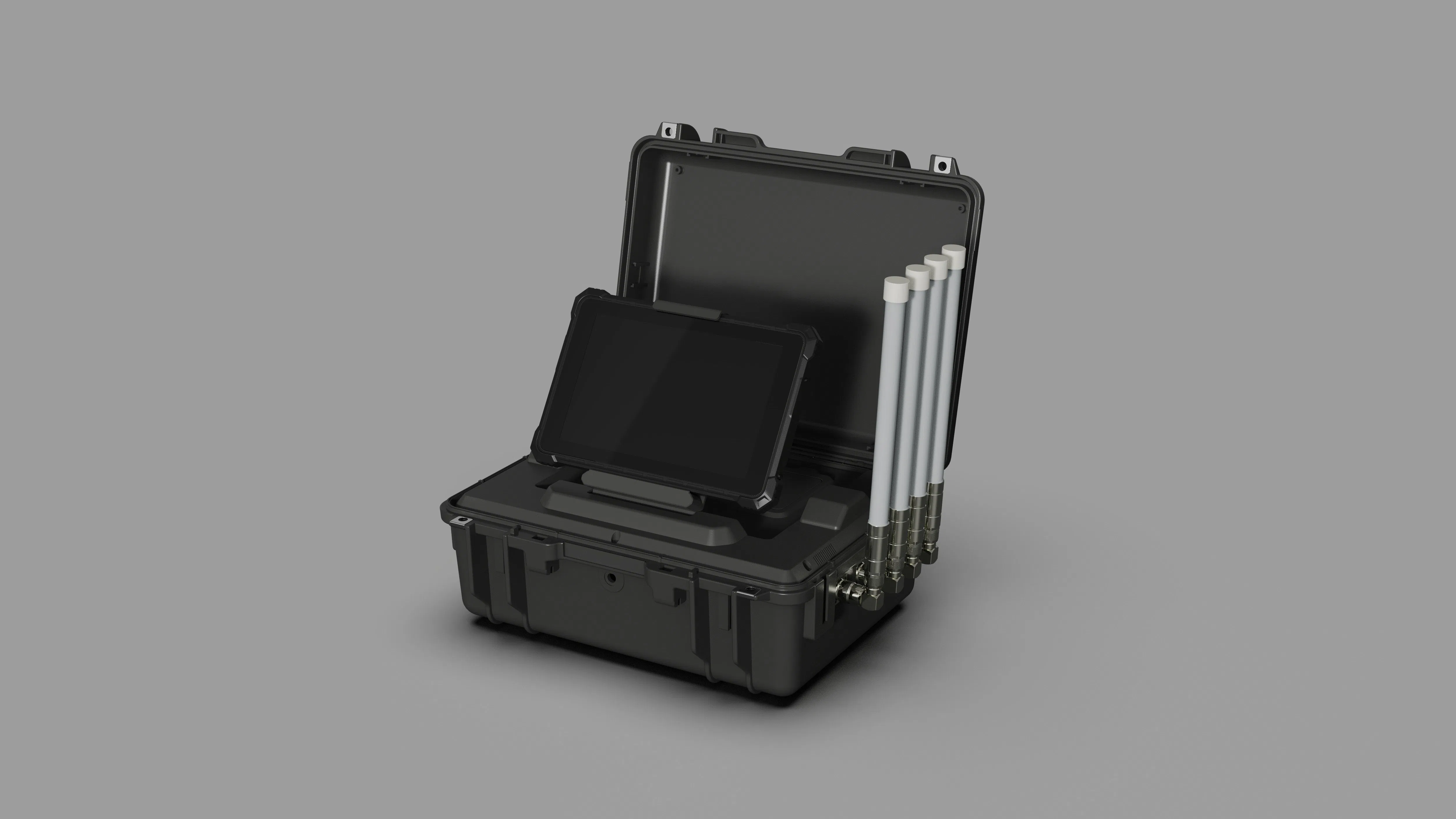

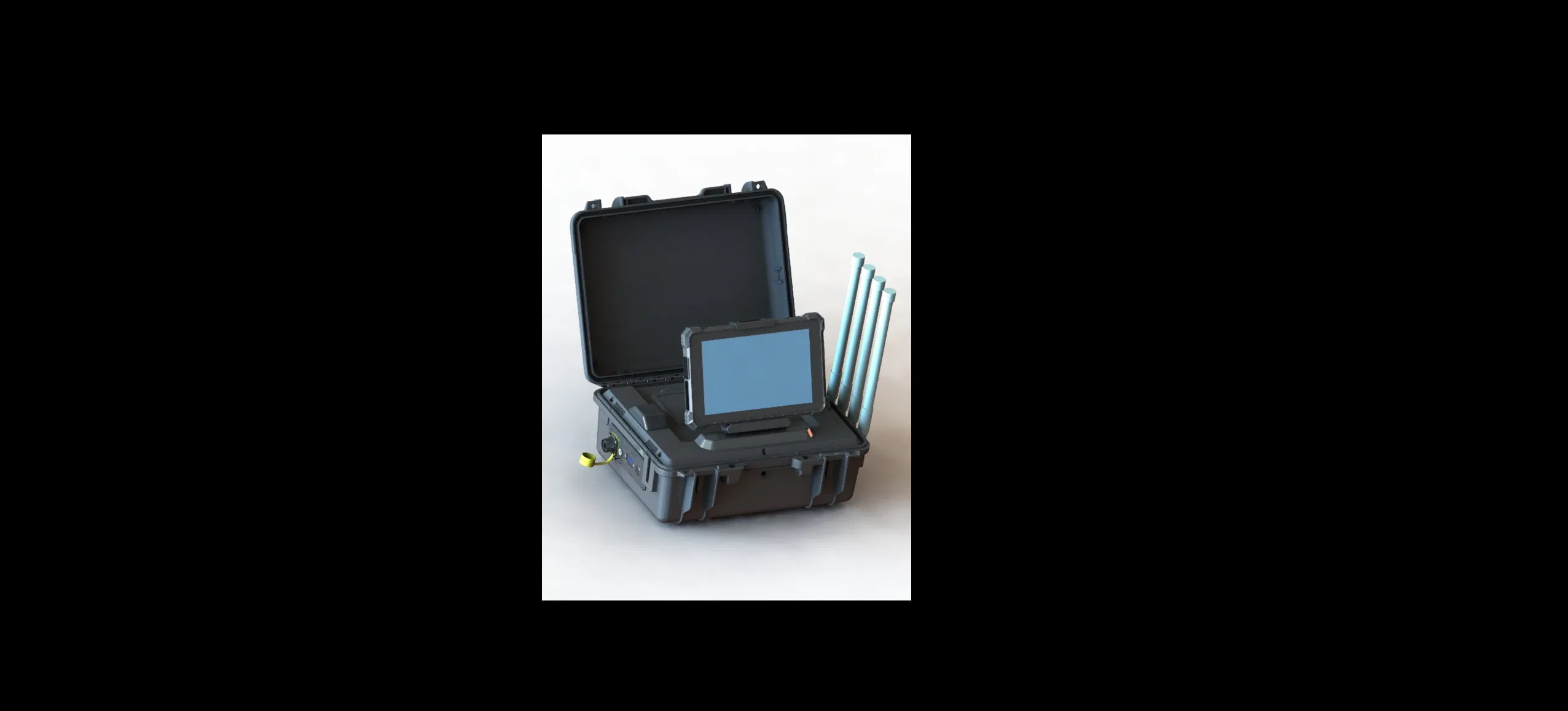

The UAV Detection & Positioning Defense System is a state-of-the-art portable device designed for comprehensive long-range surveillance. It seamlessly integrates various advanced functions including UAV detection and positioning, UAV remote pilot detection and positioning, flight path visualization, and pre-set black-and-white list management. By meticulously analyzing UAV signals, it can accurately capture SN codes, model details, positioning, trajectory, time, distance, and other pertinent data of UAVs within its monitoring range.
Comprehensive Defense Against Drone Intrusions: More than just an early-warning apparatus, this system is a holistic defense solution against drone intrusions. Featuring a design tailored for single-user deployment, its unique and efficient feature integration makes it an indispensable asset in defense strategies.
| Supported Frequency Bands | 900MHz, 1.5GHz, 2.4GHz, 5.8GHz (expandable) |
| Operating Range | ≤ 3 km |
| Simultaneous Detection | ≥ 10 sorties |
| Screen size | 13.3 " (1920 × 1080) |
| Battery Endurance | ≥ 4 h (built-in lithium battery) |
| Charging Method | DC12.6V/10A power adapter |
| Ingress Protection | IP 65 (box closed state) |
| Operating Temperature | -20ºC to 65ºC |
| Enclosure Dimensions | 567 mm × 467 mm × 274 mm |
This device spans multiple frequency bands, including 900MHz, 1.5GHz, 2.4GHz, and 5.8GHz, ensuring extensive detection capabilities for various drone types.
Boasting a maximum operating range of up to 3 kilometers, the device excels in long-distance detection and positioning over large areas.
Featuring a 13.3-inch screen with 1080P resolution, it offers a clear, detailed display with support for touch functionality and external peripherals.
Boasting an IP65 protection level, the device excels in dust and water resistance, guaranteeing reliability in a variety of challenging environments.

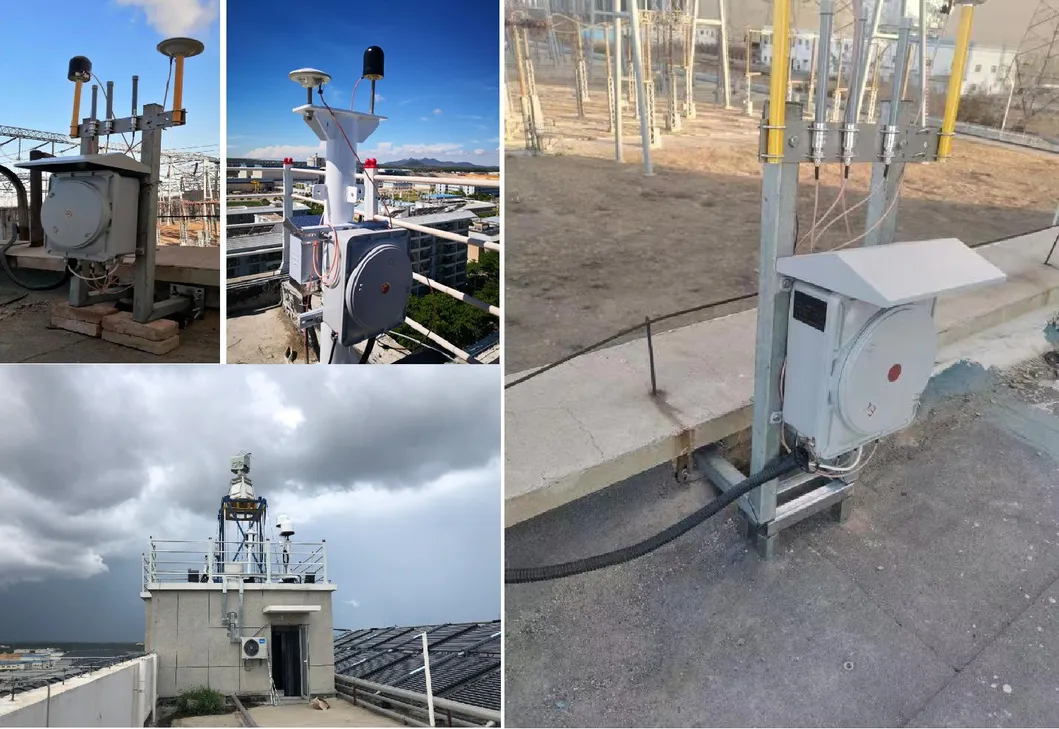

Power Industry Defense

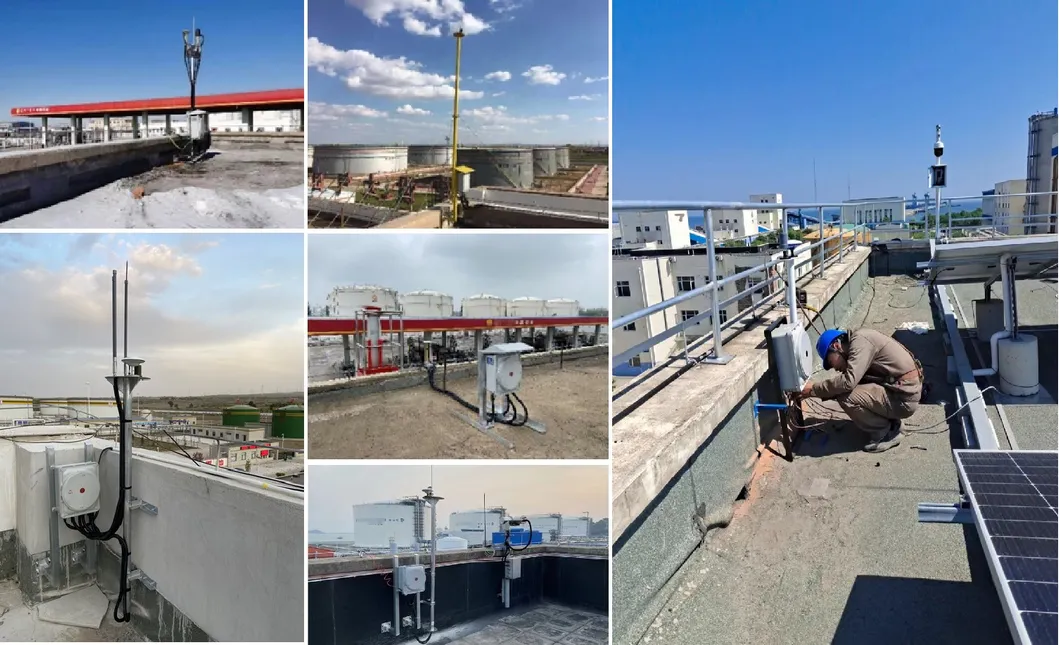

Oil and Petrochemical Security

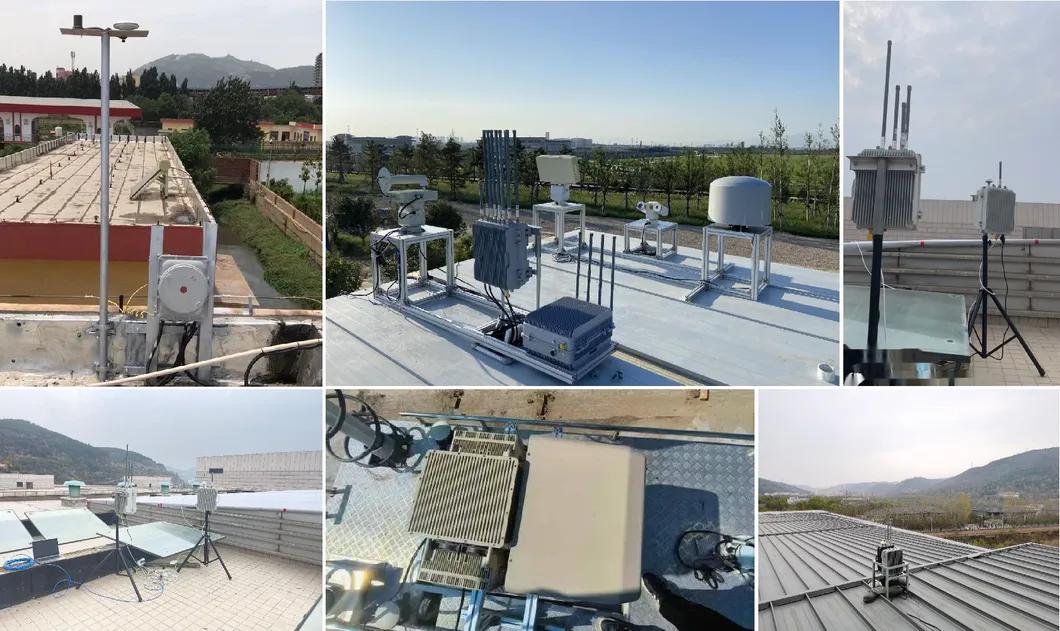

Border Defense & Events

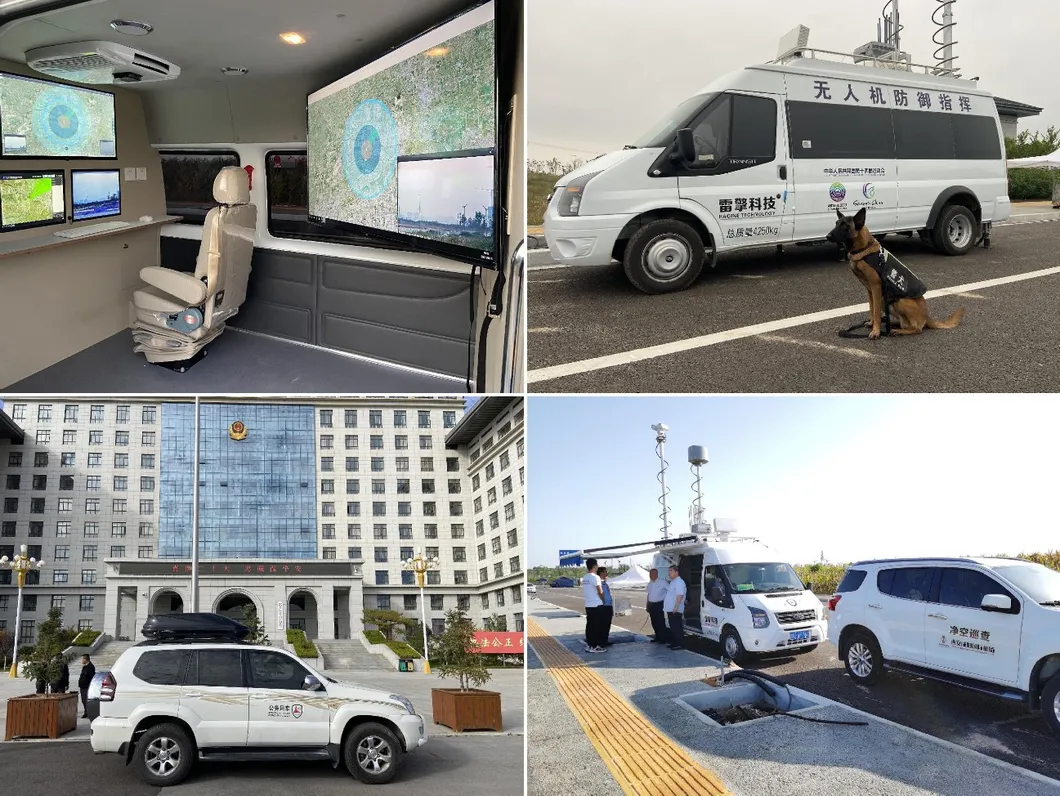

Countermeasure Vehicle Integration
