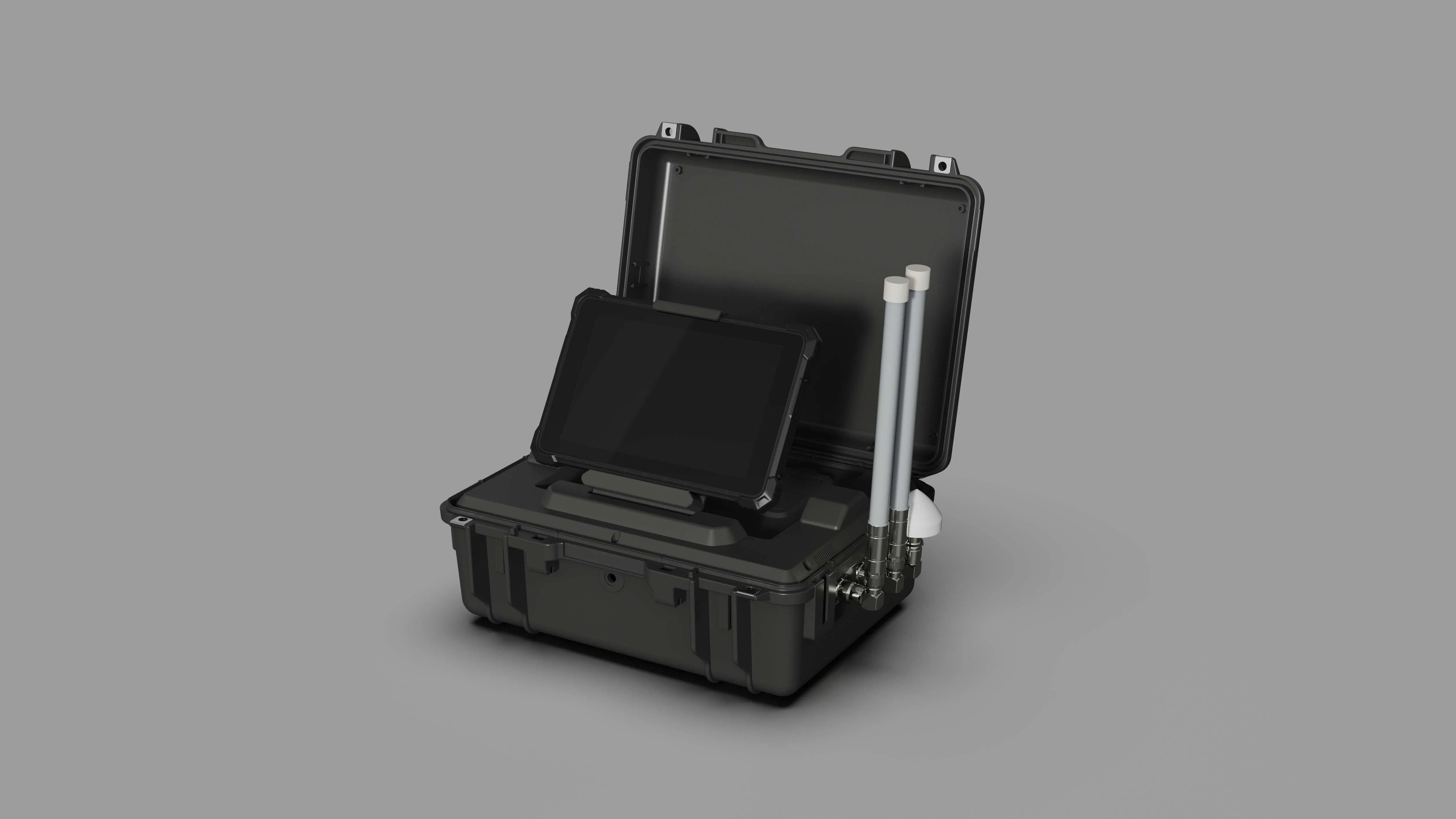

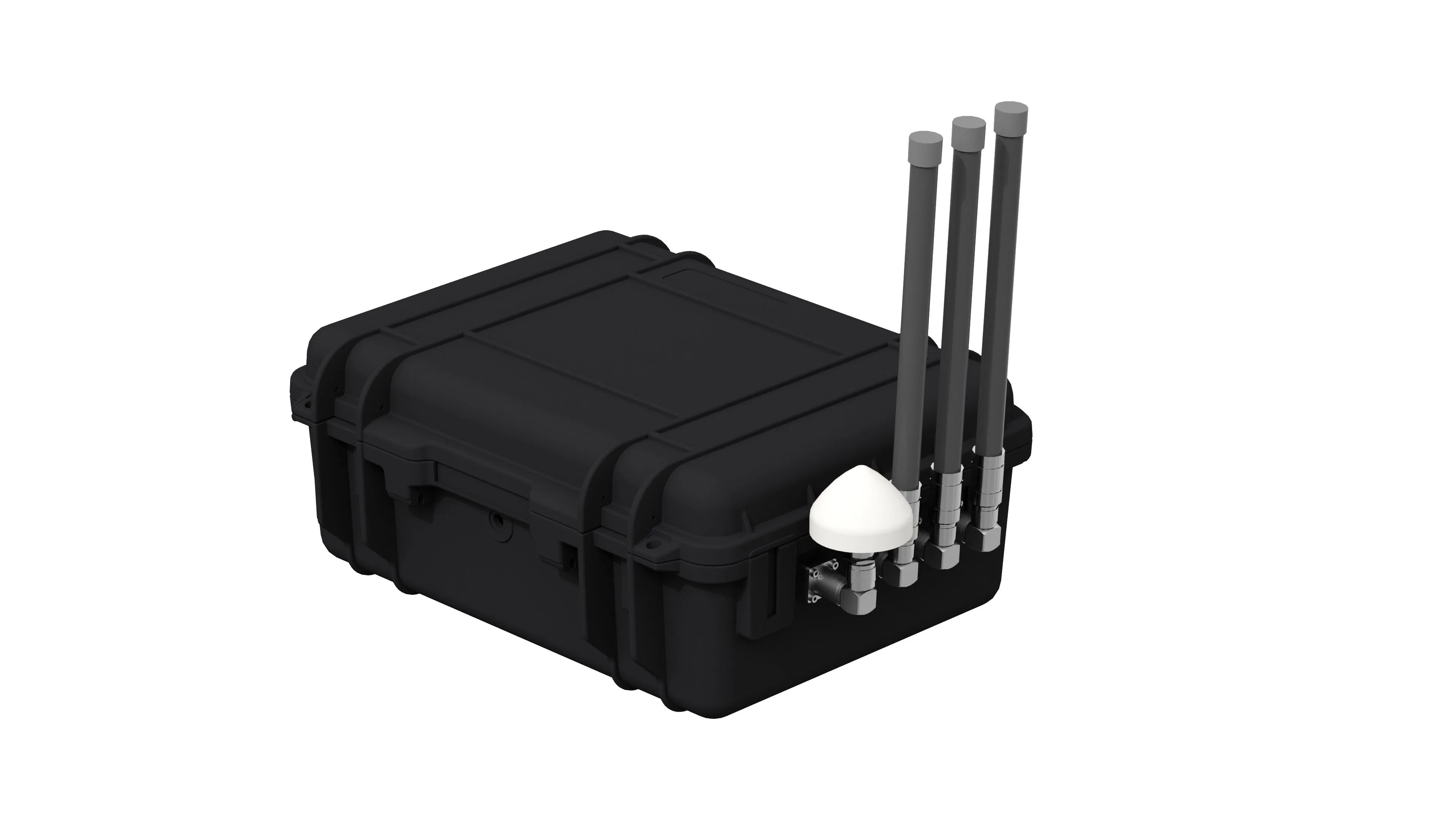

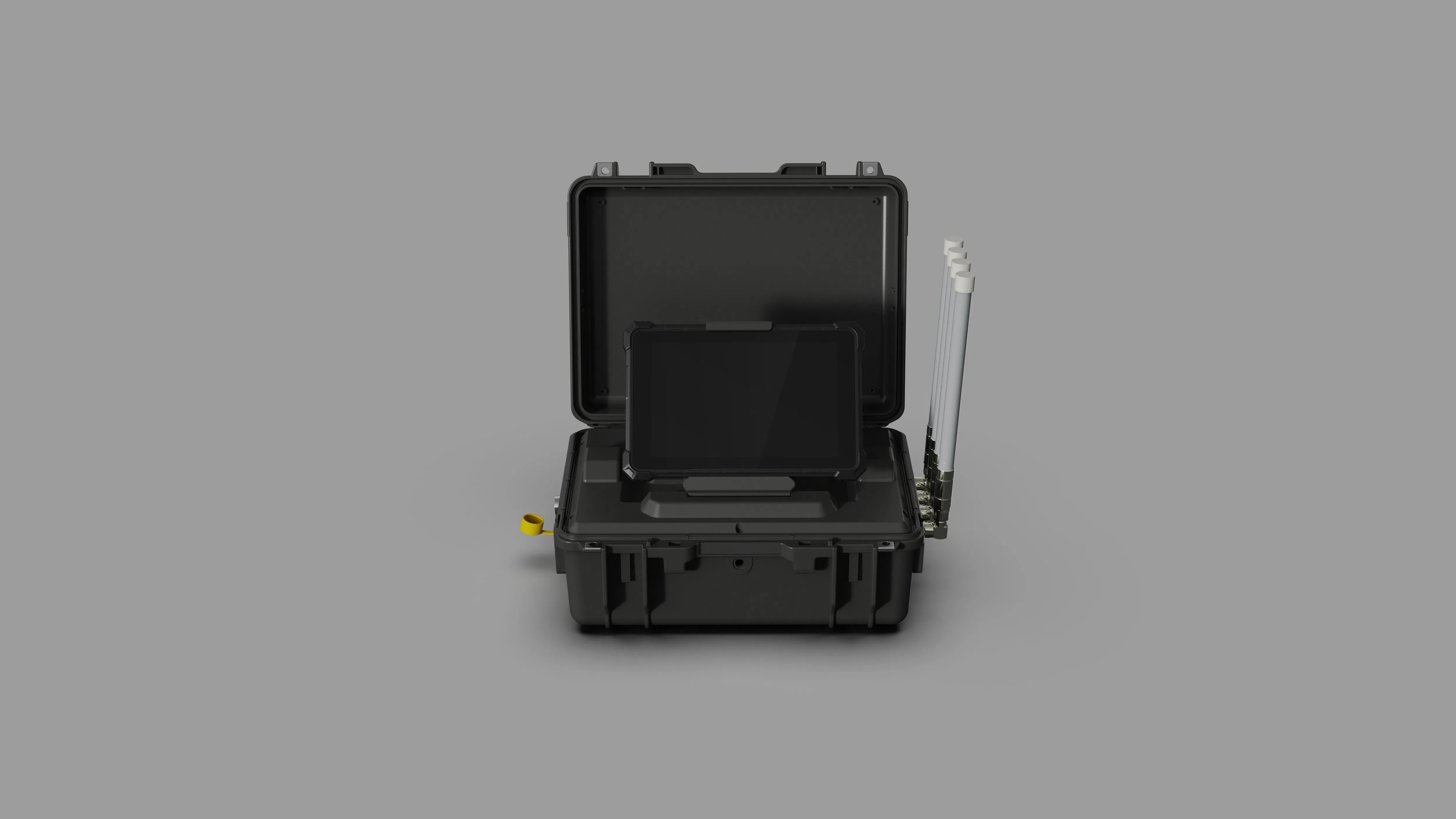

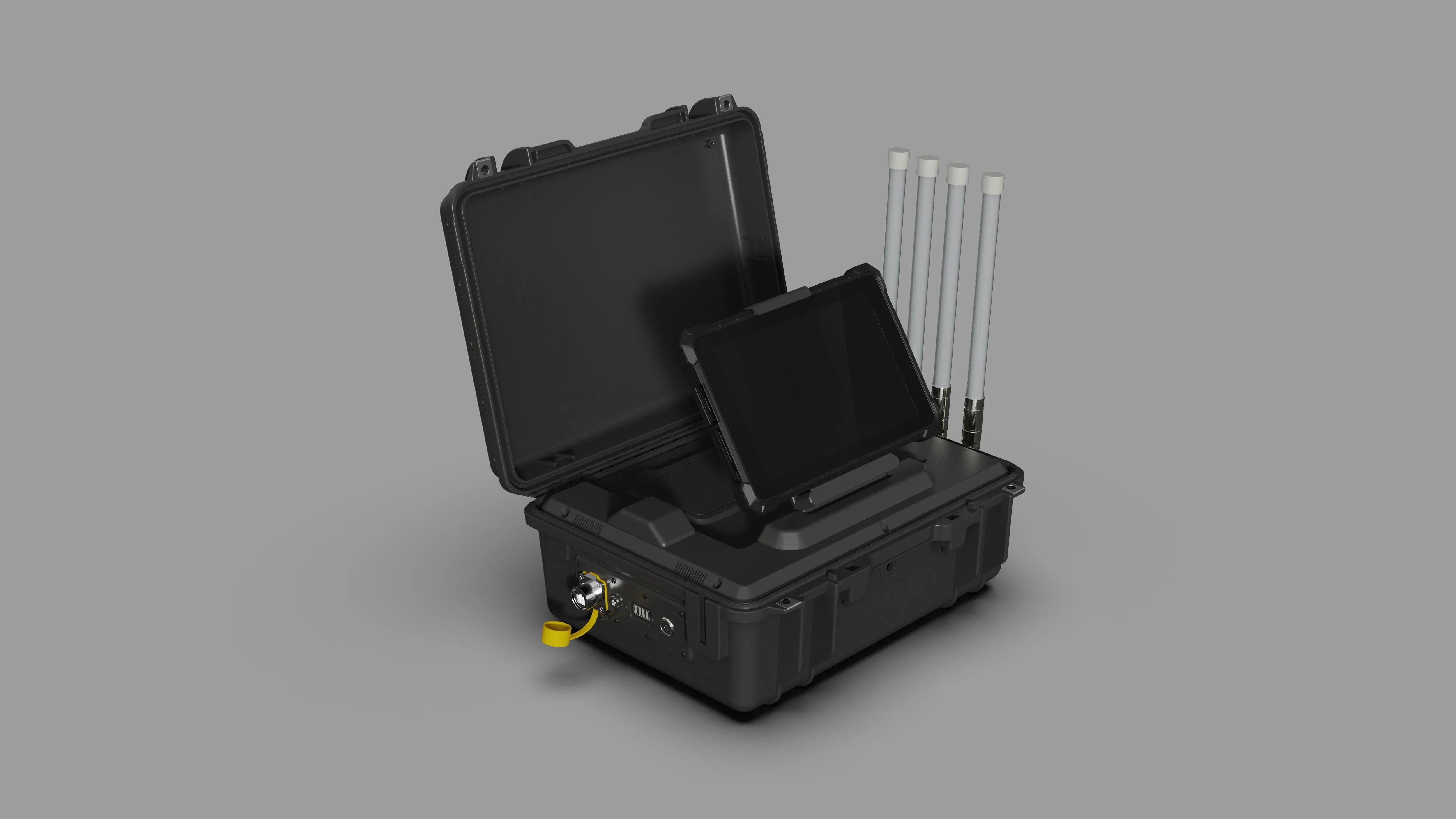

High-Performance 3km Portable Defense System for Security Needs

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

R-Eye-370A

Application

Anti-Drone System/C-Uav

Operating Range

3km

Detect Capacity

10 Sorties Simultaneously

Screen Size

13.3 "

Battery Endurance

4 H (Built-in Lithium)

Protection Rating

IP 65 (Closed State)

Power Consumption

150W

Weight

20 Kg

Dimensions

567mm x 467mm x 274mm

Origin

China

Capacity

500,000 Pieces/Year

Product Introduction

The product is a portable device that offers comprehensive long-range surveillance capabilities. It combines functions, for instance, UAVs detection & positioning, UAVs remote pilot detection & positioning, flight path display, and pre-set black-and-white list management. Through in-depth analysis of UAV signals, it can accurately detect the SN code, model, positioning, trajectory, time, distance, and other relevant information of all UAVs within the warning range.

🛡️

Comprehensive Defense Against Drone Intrusions
This product is a comprehensive solution for defense against drone intrusions. As a single-user deployable equipment, its unique design and efficient feature integration allow it to play a crucial role in overall defense strategies.

Key Benefits

Trackable Trajectories

Black-and-white List Support

Portable Deployment

Superb Battery Endurance

Technical Specifications

Supported Frequency Bands	900MHz, 1.5GHz, 2.4GHz, 5.8GHz (expandable)
Operating Range	≤ 3 km
Simultaneous Detection	≥ 10 sorties
Screen Resolution	13.3 " (1920 × 1080)
Charging Method	DC12.6V/10A power adapter
Operating Temperature	-20ºC to 65ºC
Enclosure Dimensions	567 mm × 467 mm × 274 mm ± 5mm

*Product specifications may be subject to change. Contact the account manager for latest details.

Performance Analysis

📡

Support for Multiple Frequency Bands: Covers 900MHz, 1.5GHz, 2.4GHz, and 5.8GHz, ensuring adaptability to various drone types.

📍

Exceptional Operating Range: Maximum range up to 3 kilometers for outstanding long-distance detection and positioning.

🖥️

Large Screen Interface: 13.3-inch high-resolution screen (1920×1080) with touch support for intuitive operation.

💧

High Protection Level: IP65 protection rating provides excellent dust and water resistance in harsh environments.

Applications

Oil & Petrochemical Industry
Power Industry Security
Government Agencies
Civil Aviation & Logistics
Large-Scale Sports Events
Urban No-Fly Zones
Privacy Protection
Border Defense

Professional Qualifications

Application Photos

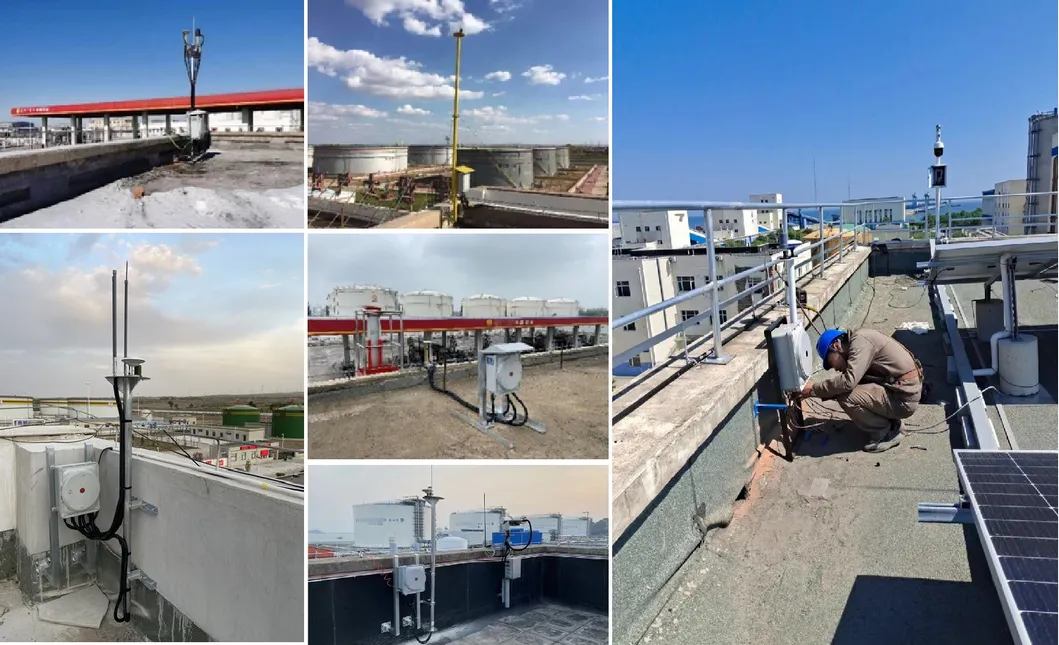

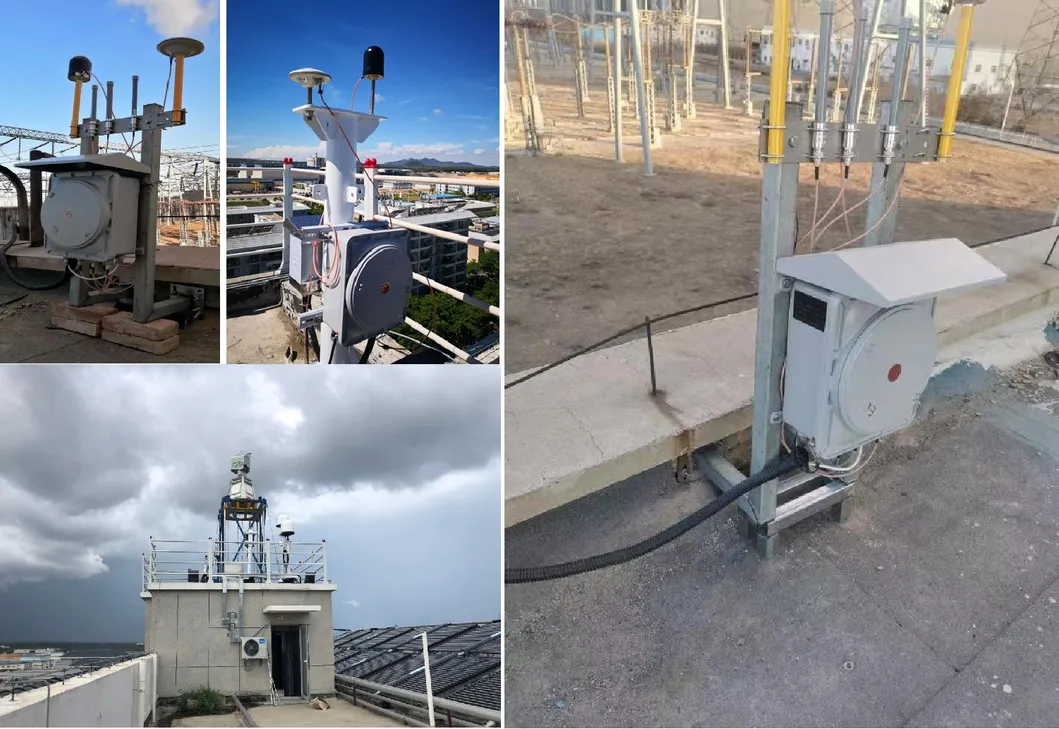

Power & Petrochemical Industry

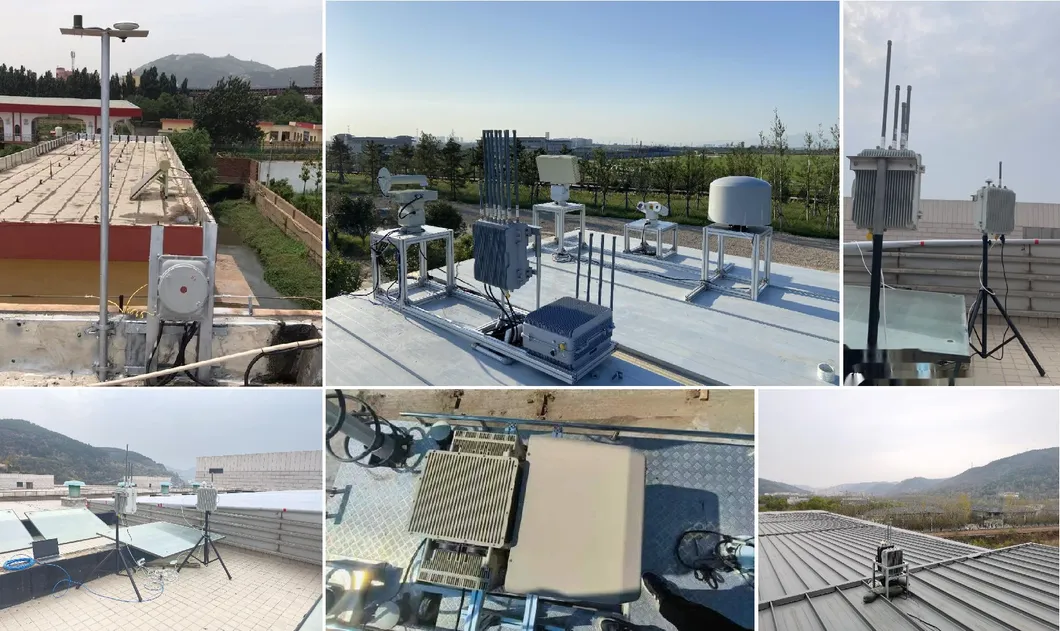

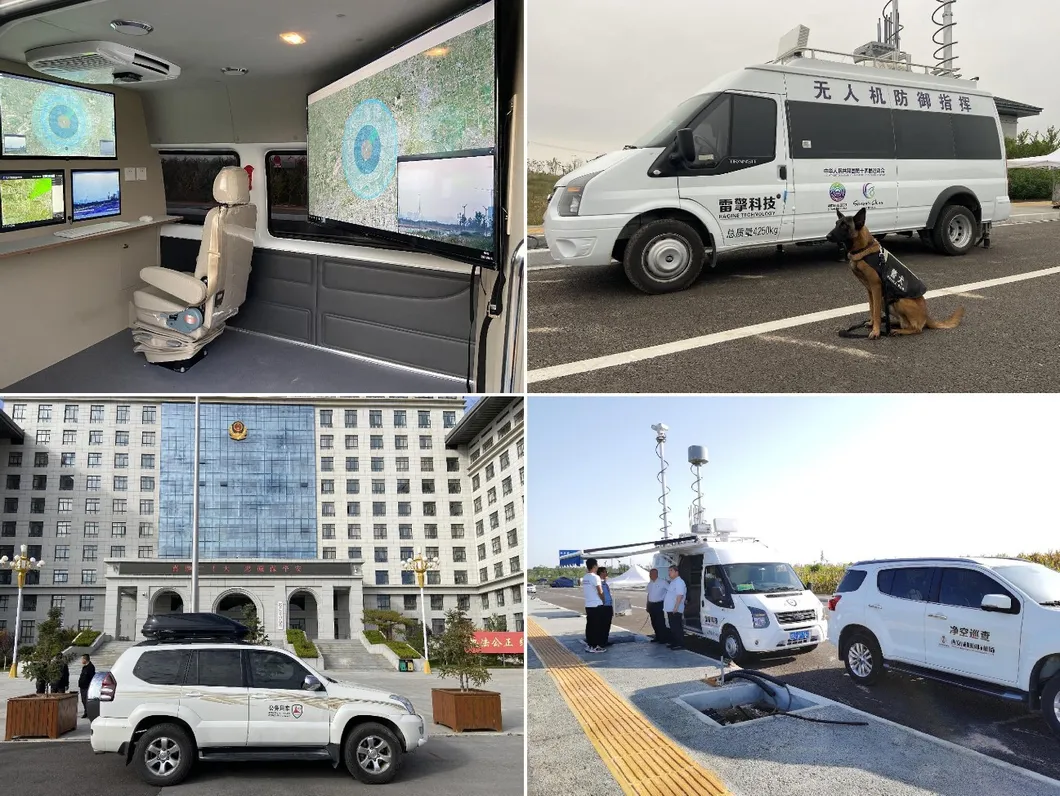

Border Defense & Countermeasure Vehicle

Frequently Asked Questions

❓ What types of drones can your products detect?

Our system is capable of recognizing mainstream models including DJI, AUTEL, self-made DIY drones, WiFi drones, and FPV drones, etc.

❓ What is the detection range of the anti-drone systems?

The detection range varies by model, but generally covers 1 to 5 kilometers. For specific requirements or larger ranges, please contact us for customized solutions.

❓ Do you accept OEM/ODM orders?

Yes, both ODM and OEM services are available. We can customize brand logos, colors, and specific frequencies based on your requirements.

❓ Can the products be used in all weather conditions?

Yes, our products are designed to operate in various weather conditions, including rain, snow, and high temperatures, featuring an IP65 protection rating.

❓ Is special training required to operate the system?

The products are designed for user-friendliness. However, we provide comprehensive training and support to ensure users can operate the systems with maximum efficiency.

❓ What is the response time of the system?

Our anti-drone systems boast an impressive response time, typically within mere seconds, ensuring rapid and effective countermeasures.
