Basic Specifications
Application
Anti-Drone System/C-Uav
Detectable Targets
10 Sorties Simultaneously
Battery Endurance
4 H (Built-in Lithium Battery)
Protection Rating
IP 65 (Box Closed State)
Dimensions
567mm x 467mm x 274mm
Product Introduction

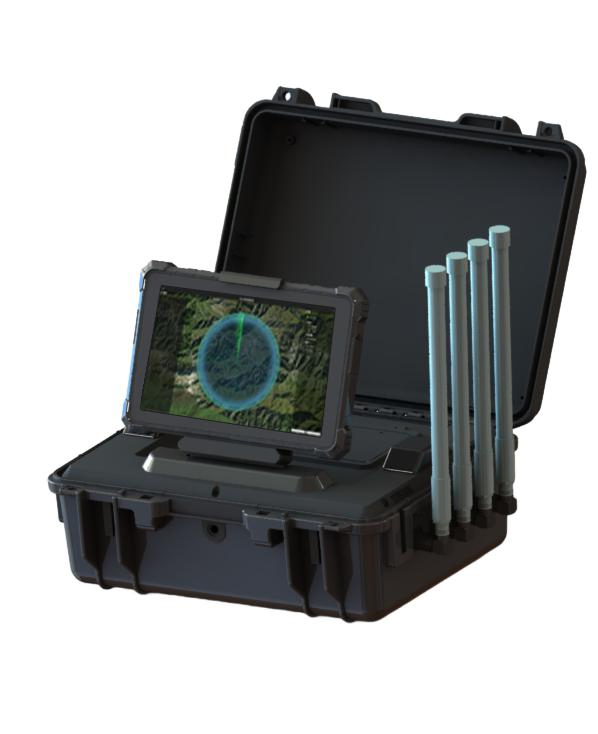

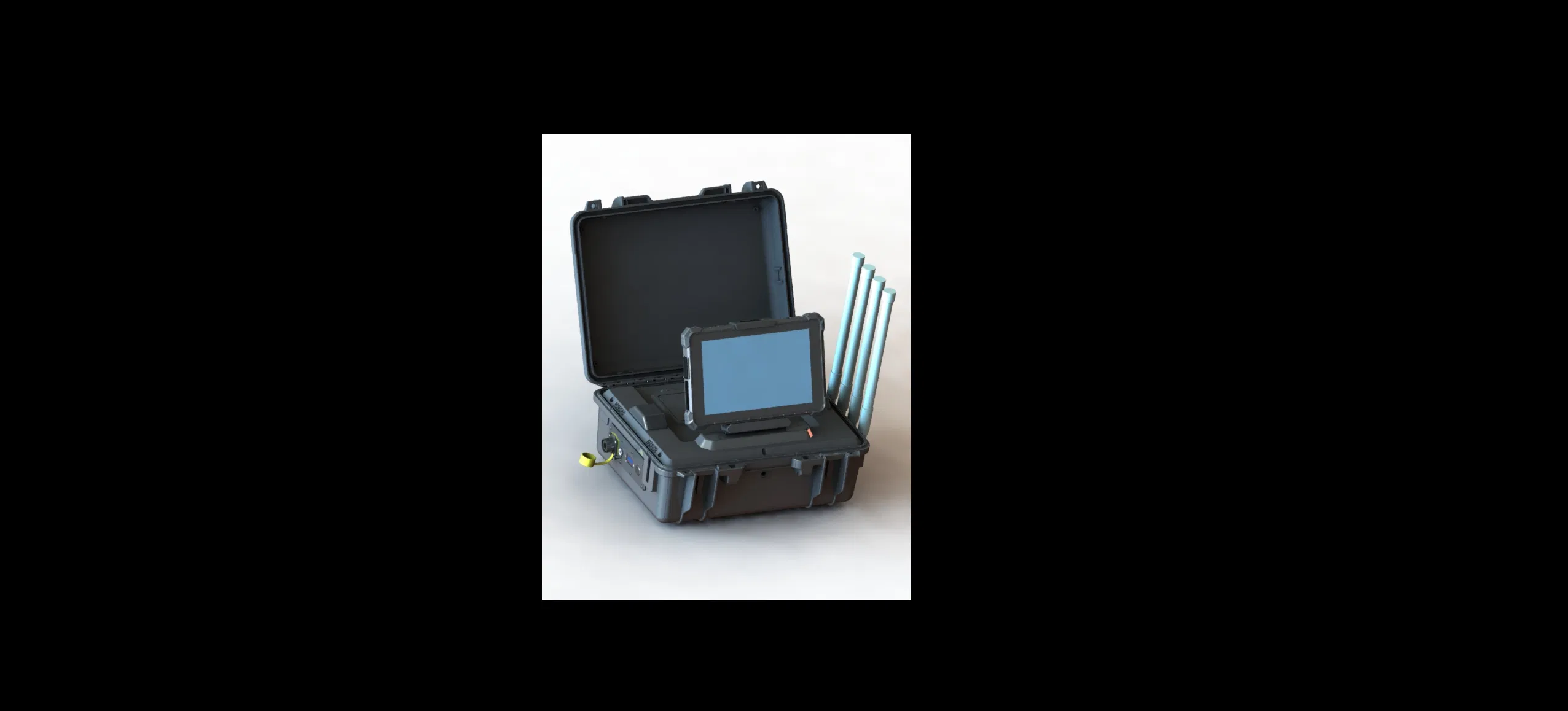

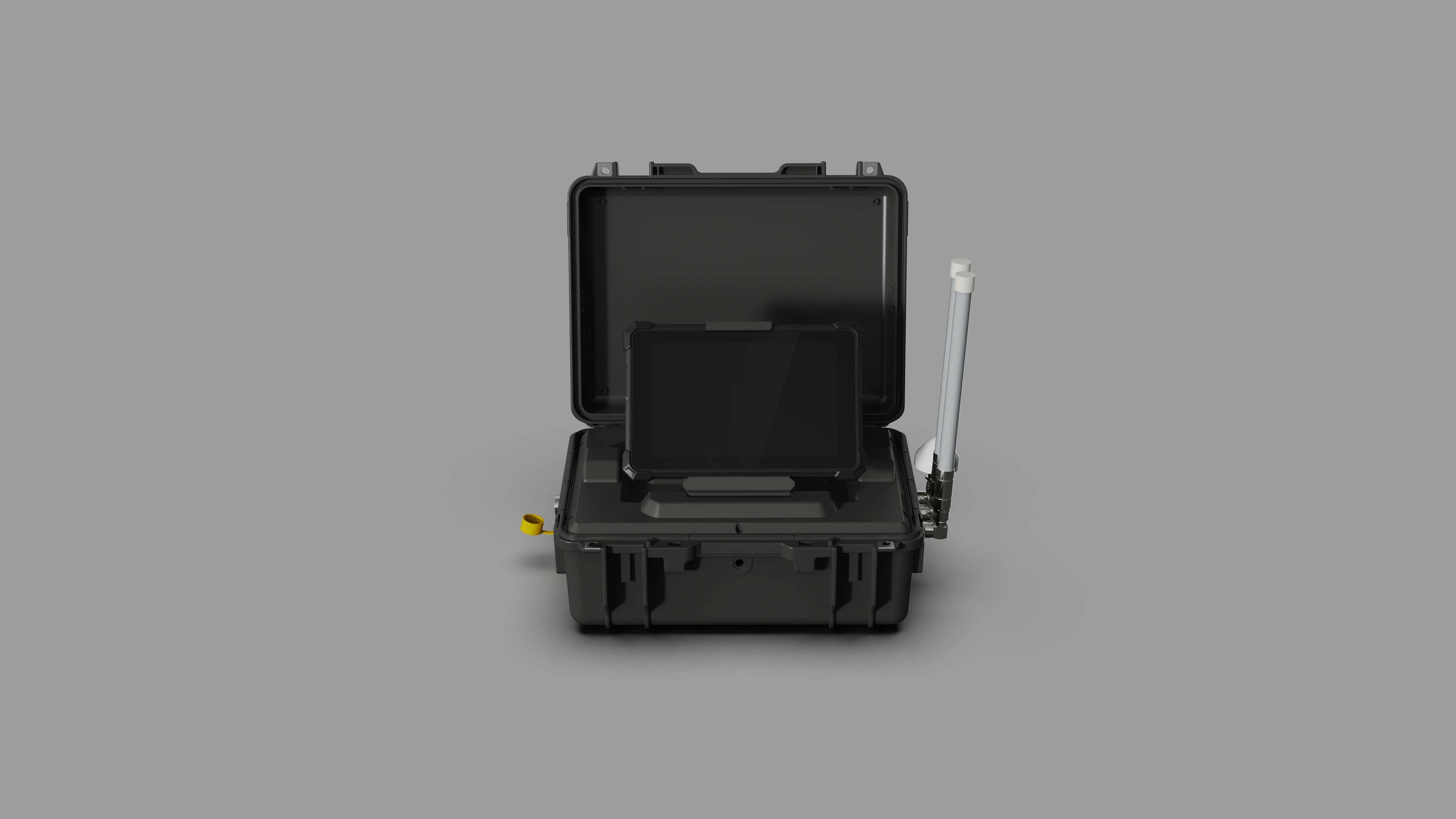

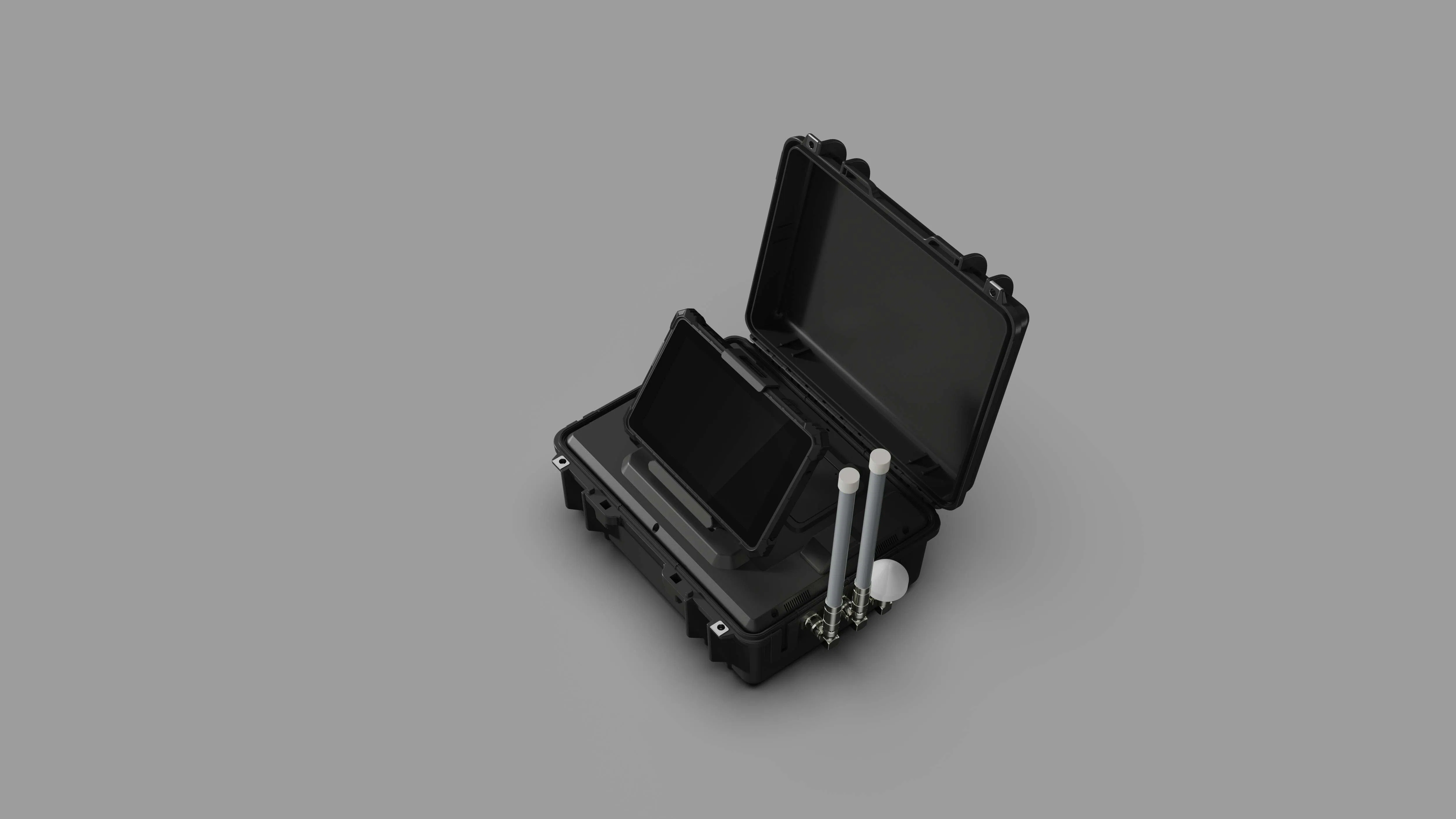

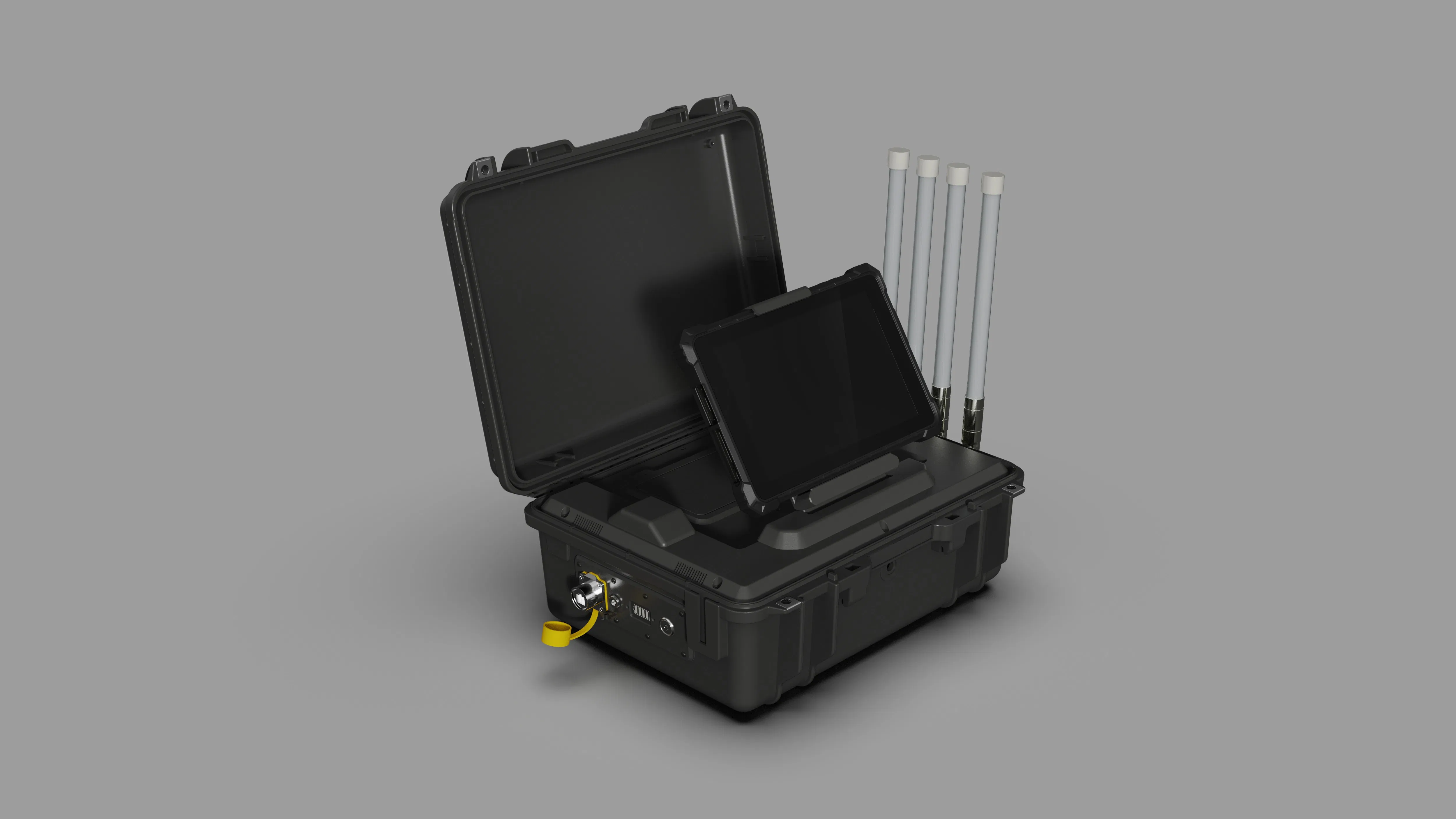

Introducing our state-of-the-art Mobile Suitcase Defense Positioning Kit, a revolutionary portable device engineered for comprehensive long-range surveillance. This cutting-edge product seamlessly integrates advanced functionalities including UAV detection and positioning, UAV remote pilot detection and positioning, flight path visualization, and sophisticated black-and-white list management. By conducting an in-depth analysis of UAV signals, it meticulously detects and reports the SN code, model, position, trajectory, time, distance, and other critical data for all UAVs within its extensive warning range.
Comprehensive Defense Against Drone Intrusions
Our Mobile Suitcase Defense Positioning Kit is a holistic solution designed to thwart drone intrusions effectively. Crafted for single-user deployment, its innovative design and seamless feature integration make it an essential component of any defense strategy. By optimizing early warning responses to potential drone threats, it enables users to swiftly identify and neutralize risks, offering a formidable first line of defense that enhances overall security.
Key Benefits
📈 Trackable Trajectories
📋 Black-and-white List Support
💼 Portable Deployment
🔋 Superb Battery Endurance
Technical Specifications
| Supported Frequency Bands | 900MHz, 1.5GHz, 2.4GHz, 5.8GHz (expandable) |
| Operating Range | ≤ 3 km |
| Simultaneous Detection | ≥ 10 sorties |
| Screen Size | 13.3" (1920 × 1080) |
| Battery Endurance | ≥ 4 h (built-in lithium battery) |
| Charging Method | DC12.6V/10A power adapter |
| Operating Temperature | -20ºC to 65ºC |
| Enclosure Dimensions | 567 mm × 467 mm × 274 mm ± 5mm |
R-Eye-370A Performance Analysis
- Support for Multiple Frequency Bands: Extensive range ensures thorough detection capabilities for various drone types. Its expandable architecture guarantees adaptability to future modifications.
- Exceptional Operating Range: Boasting a maximum range of up to 3 kilometers, this device excels in long-distance detection and positioning for wide coverage.
- Simultaneous Detection: Capable of managing busy airspace environments by identifying over 10 drone sorties at once.
- High-Resolution Display: Featuring a 13.3-inch screen (1920×1080), the device offers a detailed display with touch screen functionality for intuitive operations.
- Energy Efficiency & Protection: IP65 protection rating ensures reliable operation in dust and water-prone environments, with a low power consumption of under 150W.
Industry Applications
- Security & Counter-terrorism in Oil & Petrochemical Industry
- Security & Counter-terrorism in the Power Industry
- Government & Security Agencies
- Civil Aviation Airports & Logistics Bases
- Large-Scale Events & Sports Competitions
- Urban No-Fly Zone Airspace Security
- Business & Personal Privacy Protection
Professional Qualifications
Application Scenarios

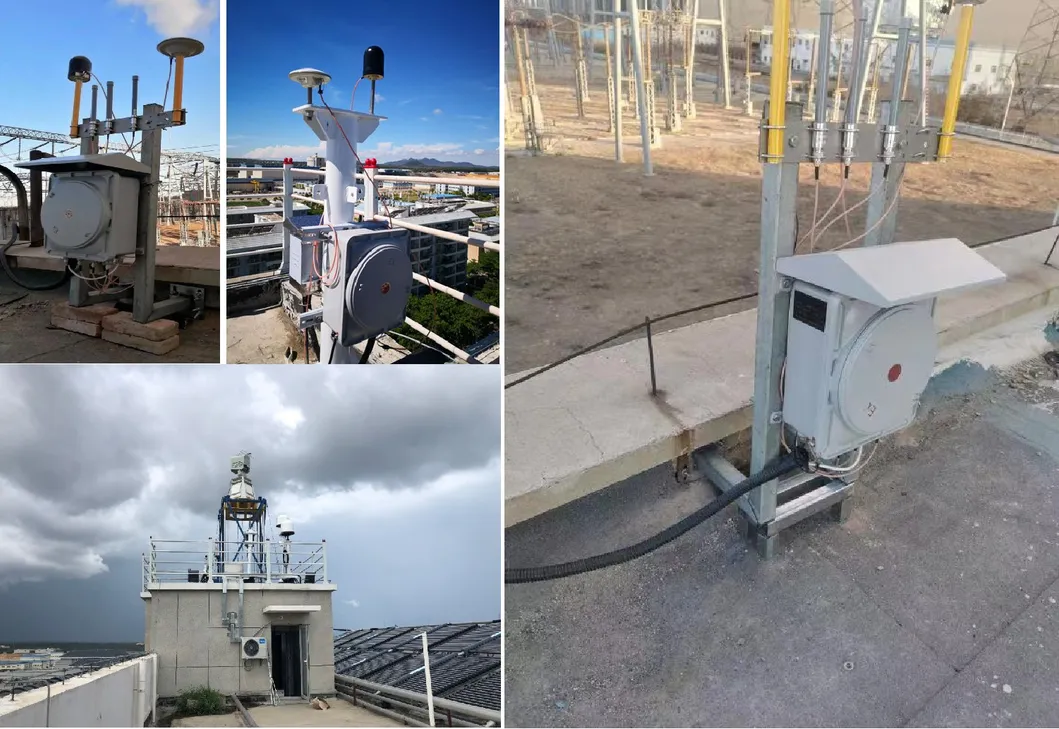

Power Industry Security

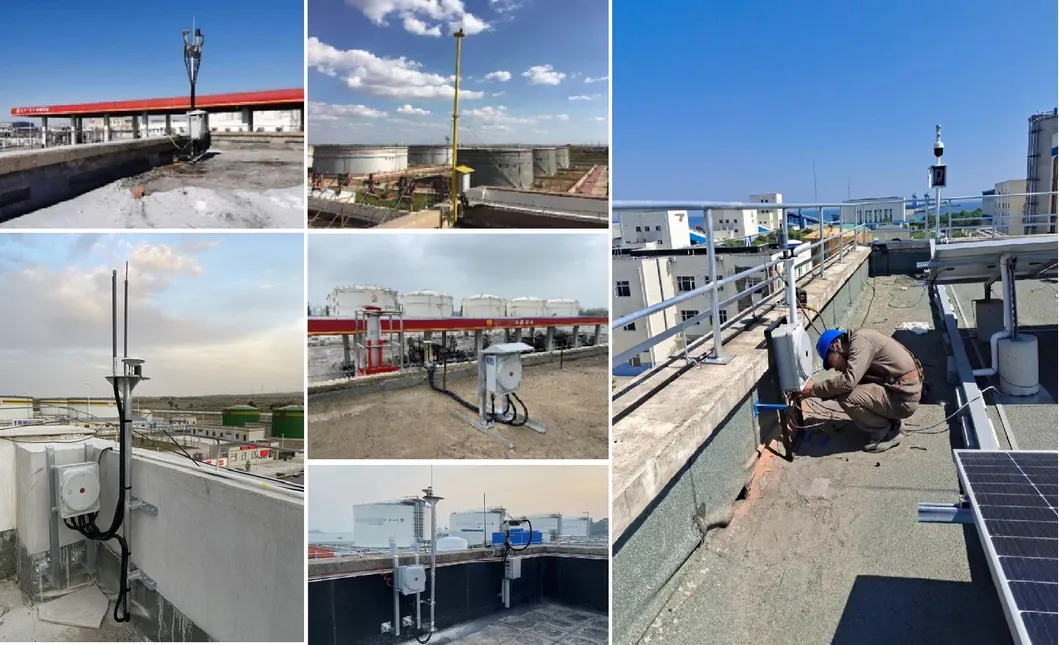

Oil and Petrochemical Industry
Countermeasure Vehicle Deployment
Frequently Asked Questions
What types of drones can your products detect?
Our systems are capable of identifying a wide range of mainstream models, including DJI, AUTEL, self-made DIY drones, WiFi drones, and FPV drones, among others.
What is the effective range of the anti-drone system?
The detection range typically covers 1 to 5 kilometers depending on the specific model. The R-Eye-370A offers a stable 3km range.
Do you support customized OEM/ODM orders?
Yes, ODM & OEM services are available. We can customize brand logos, colors, and specific frequency bands to align with your requirements.
Can the equipment operate in extreme weather?
Yes, the systems are engineered with an IP65 protection rating to function efficiently in rain, snow, and temperatures ranging from -20°C to 65°C.
How long does the battery last in the field?
The built-in lithium battery provides over 4 hours of uninterrupted, stable detection performance for continuous surveillance tasks.
Is special training required to operate the suitcase kit?
The product is designed for user-friendliness with a plug-and-play approach. We provide a comprehensive manual and support to ensure seamless operation.
