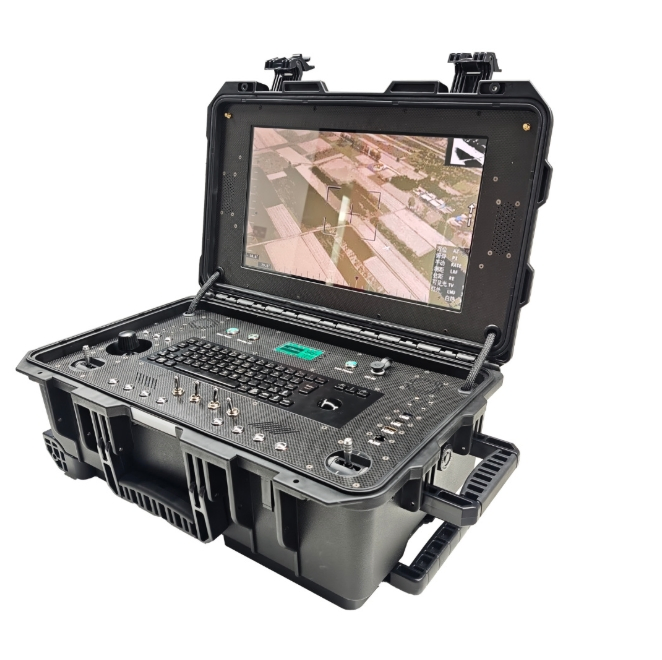

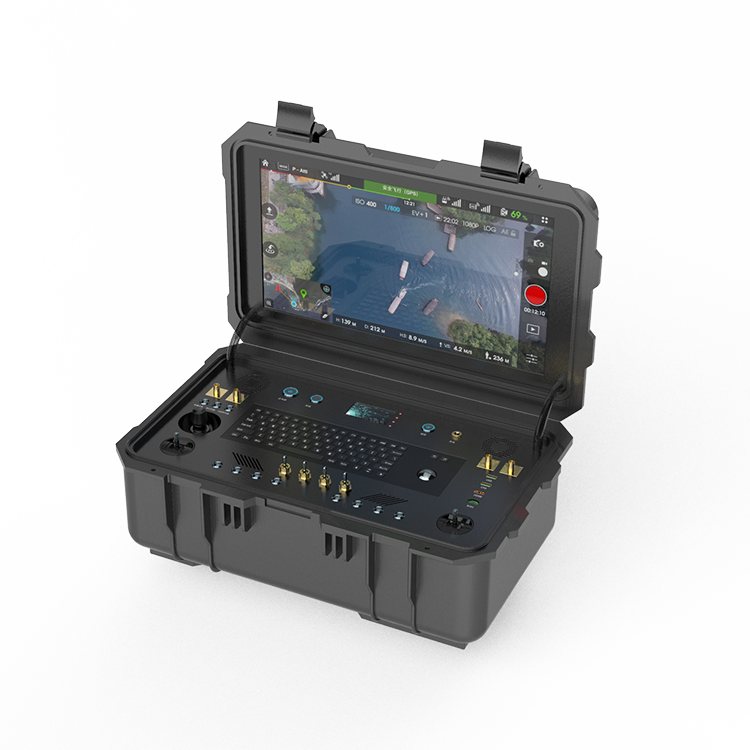

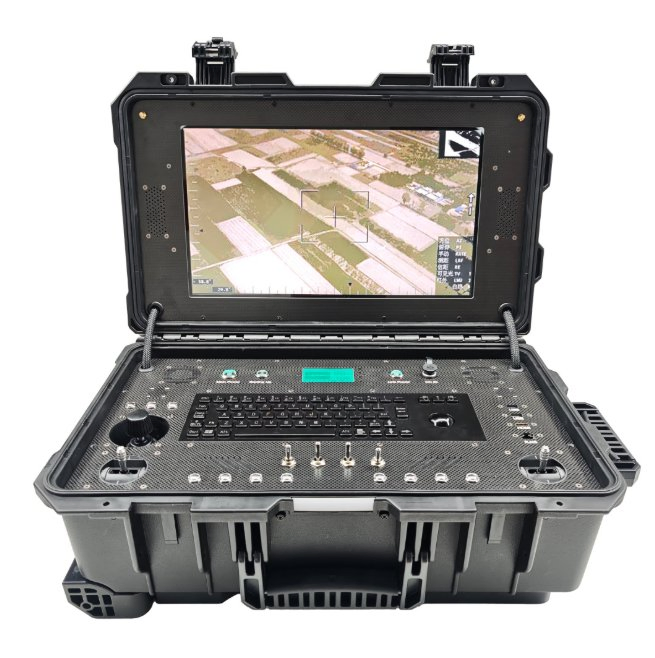

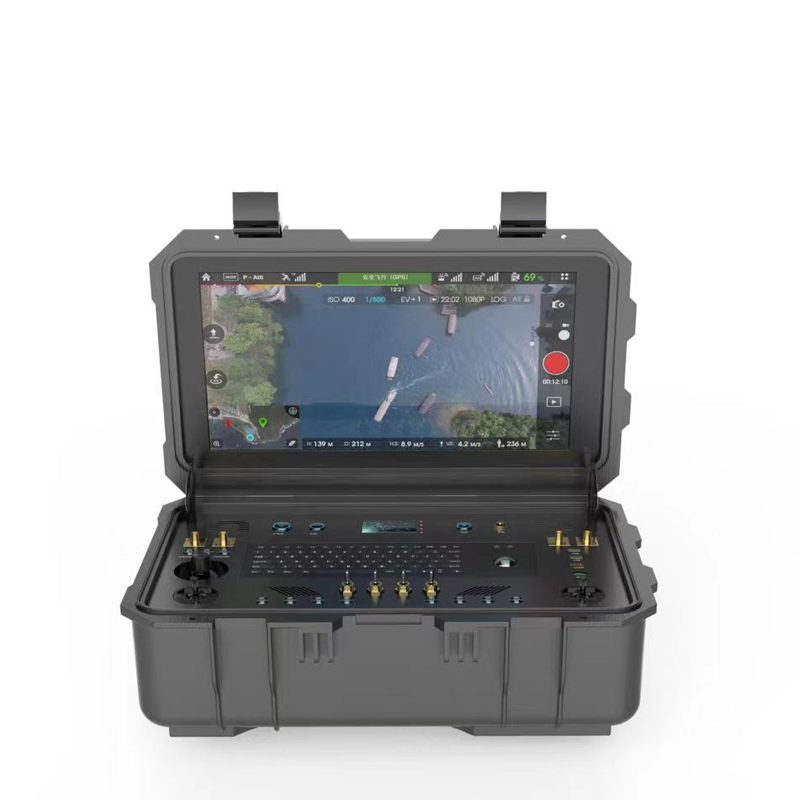

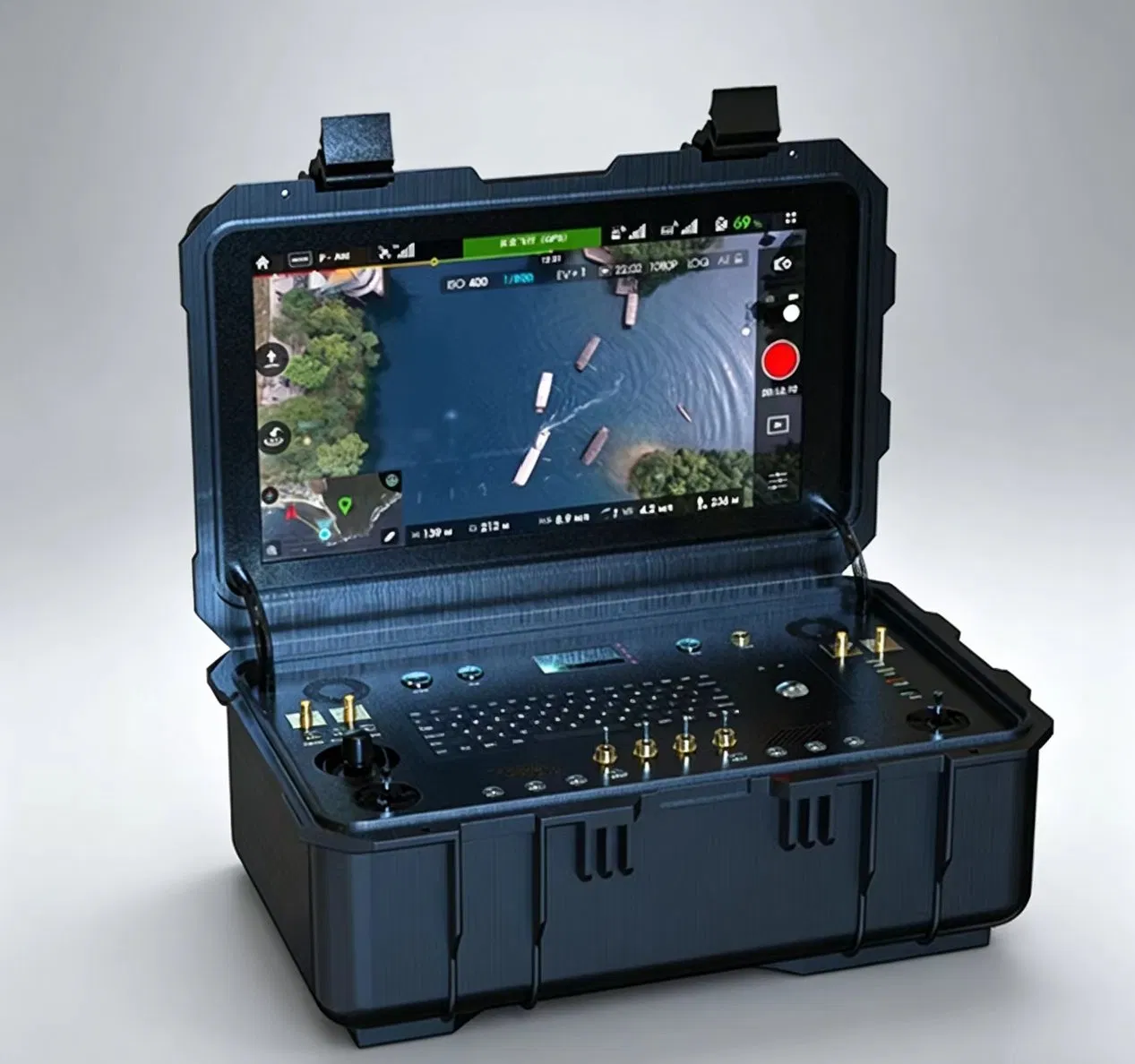

XK-GS300 portable camera control station features a suitcase design for easy transport. It utilizes a high-brightness screen visible in direct sunlight and is configured with a mainstream WINDOWS operating system, allowing for the pre-installation of various professional flight and control software.
| Control Station Box | |
| Cover Size (L x W x H) | 490mm × 390mm × 190mm |
| Overall Weight | 15KG |
| Shell Material | PVC composite materials |
| Protection Level | IP67 (Closed) |
| Working Temperature | -10°C to 60°C |
| Color Type | Matte Black |
| Portable Features | Ready to use upon opening, with external handle |
| Operation Panel | |
| Panel Material | 3K carbon fiber plate |
| Interface Support | USB*2, TYPE-C, DC IN, HDMI, RJ45, RS232 |
| Feeder and Interface | SMA Interfaces |
| Interaction | 17.3" high brightness screen, mouse and keys |
| Switch Parameters | Main power, link power, three-segment toggle × 2, key × 4, two-end toggle × 2, two-axis rocker × 2 |
| Industrial Control Host | |
| Processor | Intel Core i7 |
| Operating System | Windows 10 |
| Memory / Hard Disk | 16G RAM / 256G SSD |
| Display | |
| Size / Resolution | 17.3 inch / 1920*1080 (16:9) |
| Brightness | 1000 nits (Auto-sensing adjustment) |
| Battery & Power Supply | |
| Display Table | Voltage, current, remaining capacity, power |
| Management System | Overcurrent, overvoltage, low-voltage, over-power protection |
