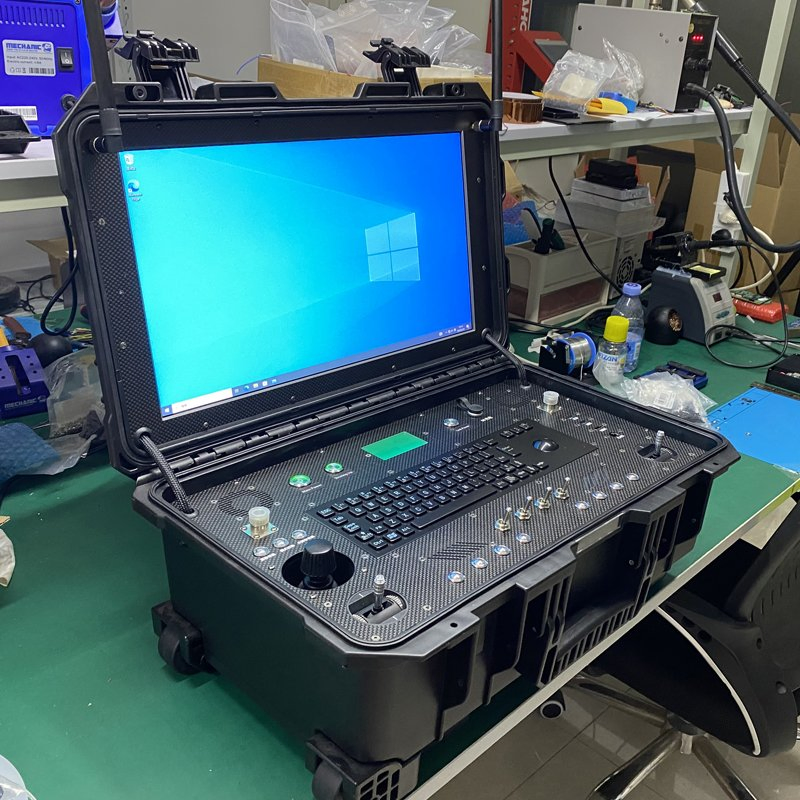

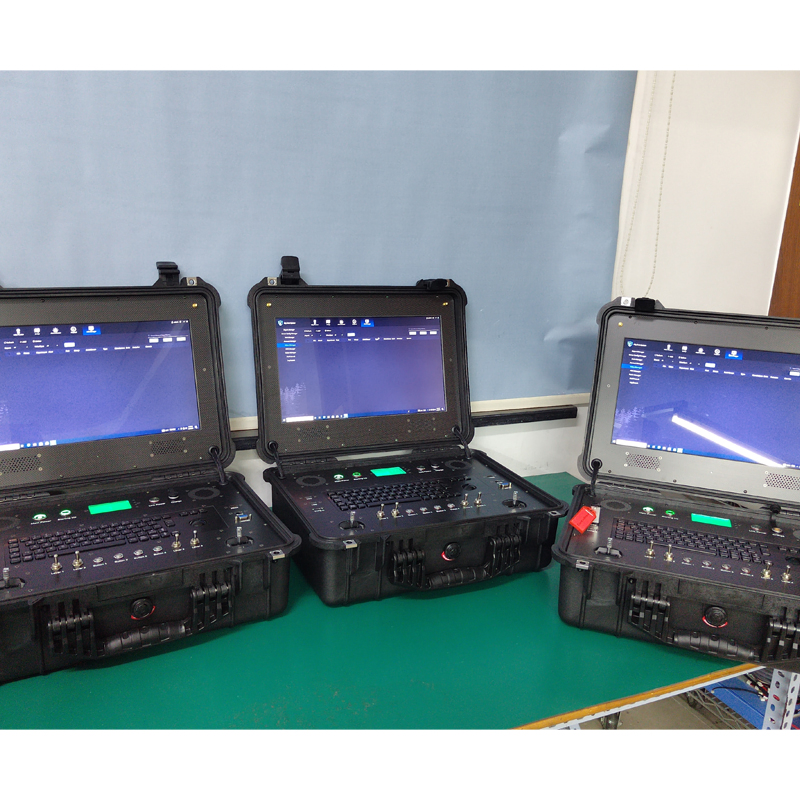

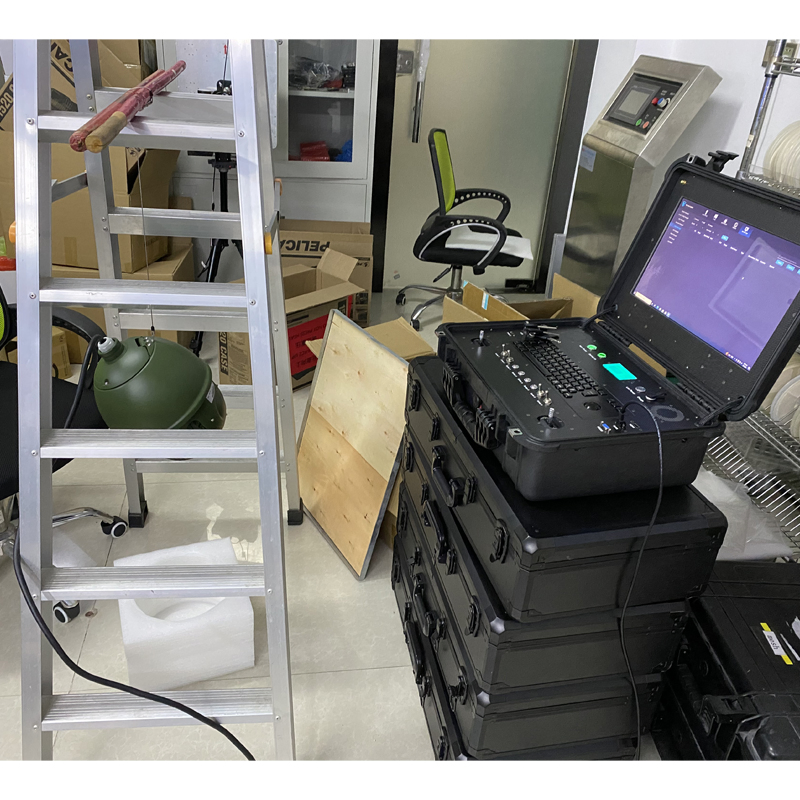

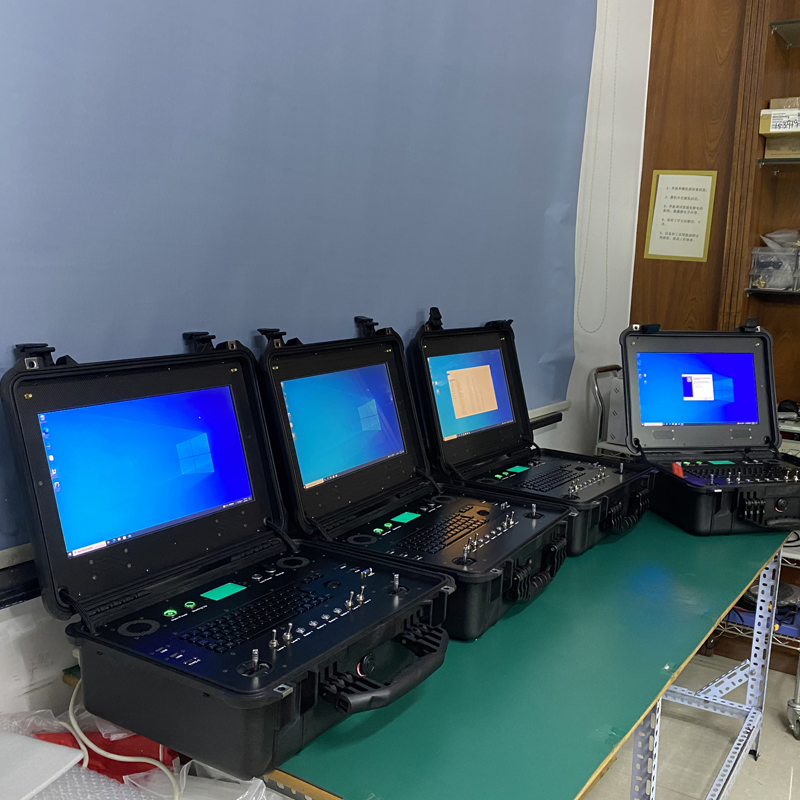

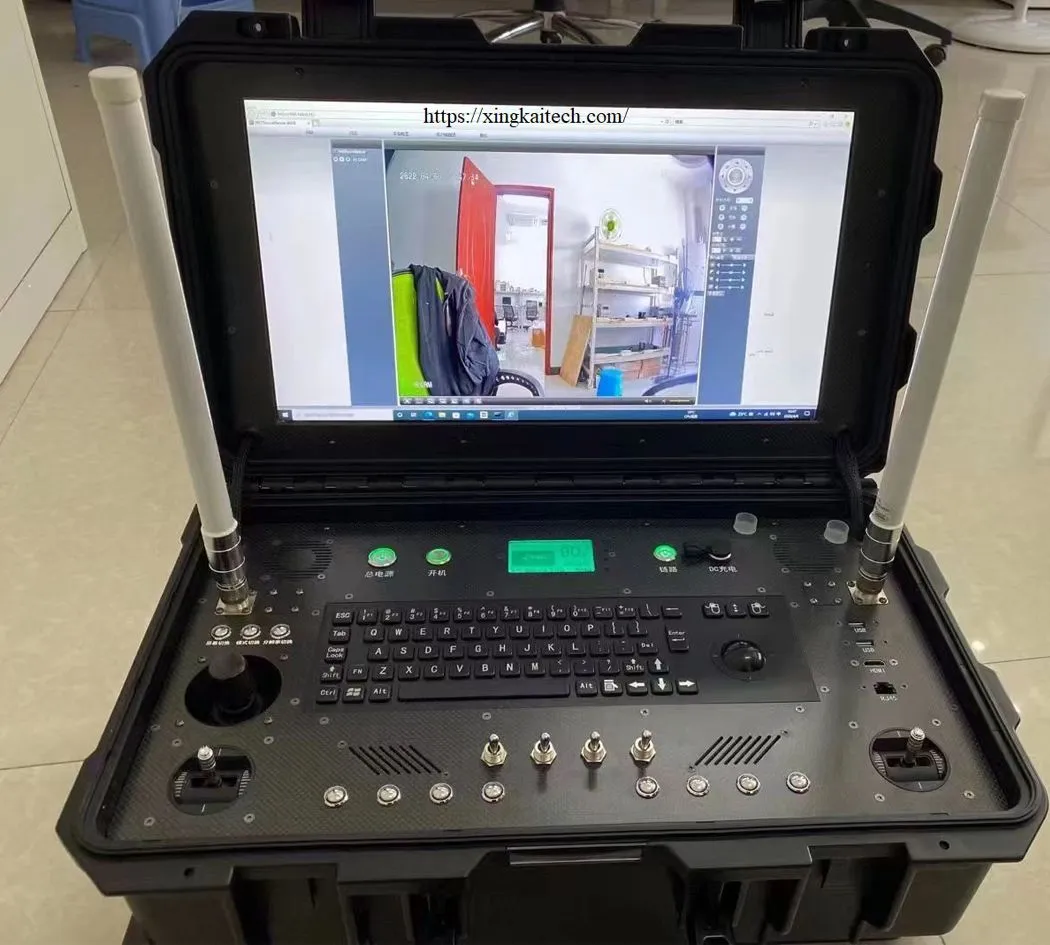

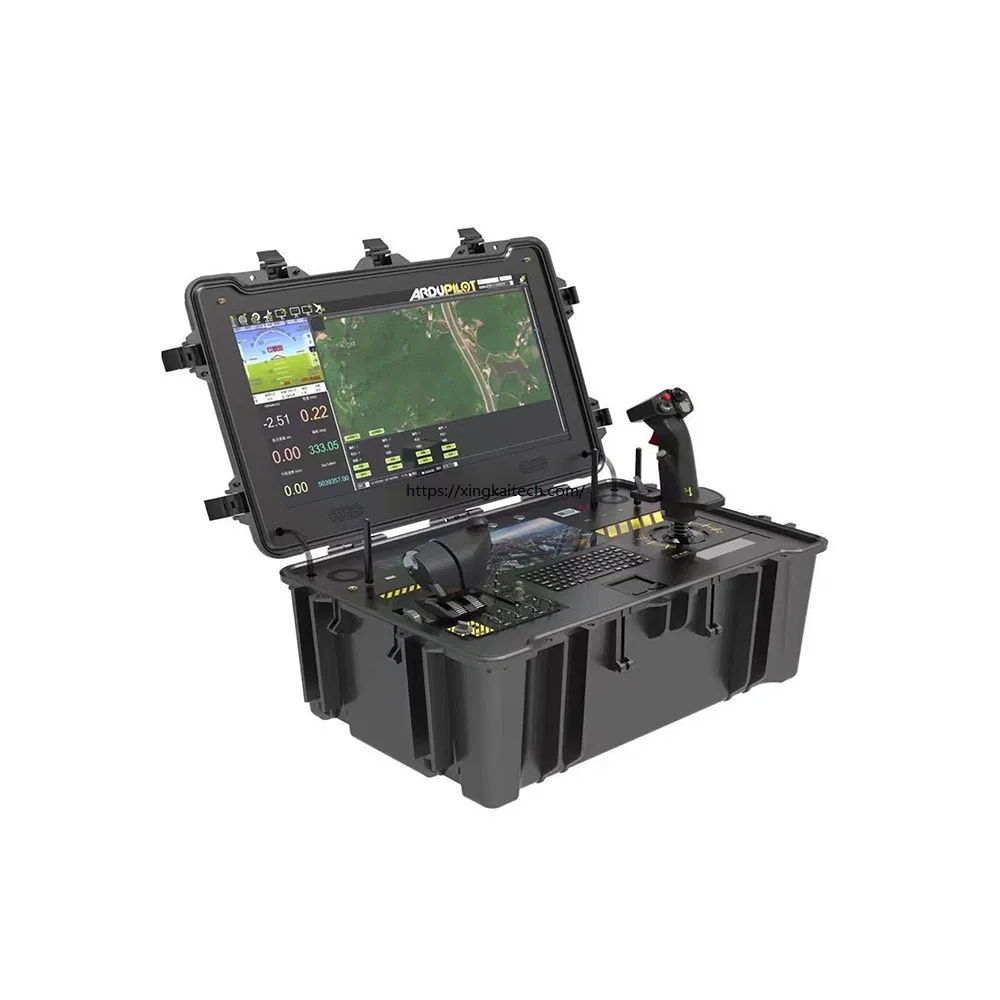

Portable RC Video Drone Ground Control Station System
The portable camera control station features a rugged suitcase design for maximum portability. It is equipped with a high-brightness screen visible under direct sunlight and runs on a mainstream Windows operating system, allowing for the pre-installation of various professional flight and mission control software.
| Technical Parameters - Control Station Box | |
|---|---|
| Dimensions (L x W x H) | 490mm × 390mm × 190mm |
| Overall Weight | 15KG |
| Shell Material | PVC composite materials |
| Protection Level | IP67 (When closed) |
| Working Temperature | -10°C to 60°C |
| Color Type | Matte black |
| Portable Features | Ready to use upon opening, external handle |

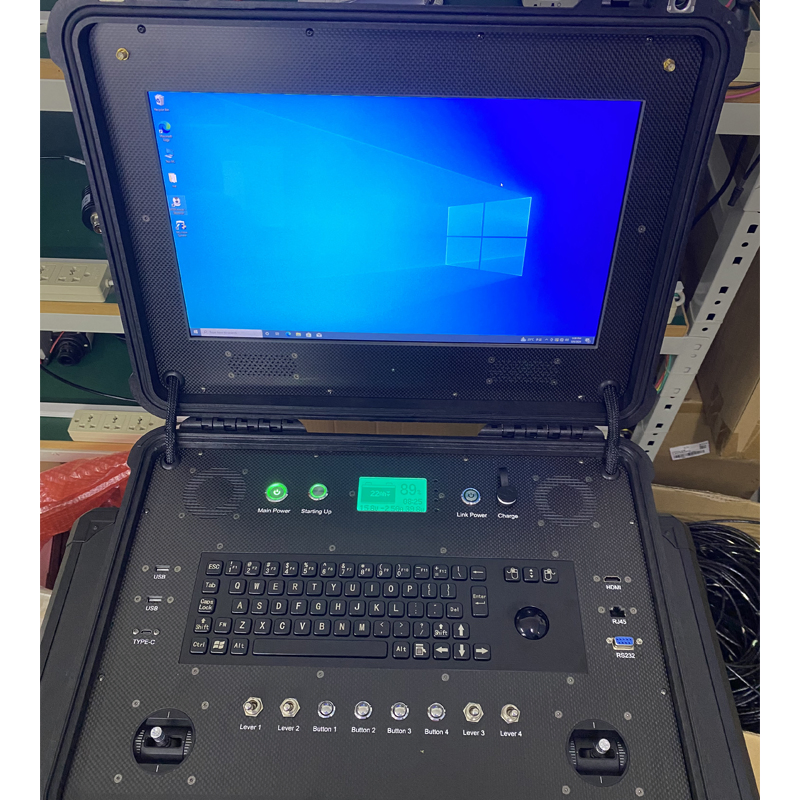

| Operation Panel & Interface | |
| Panel Material | 3K carbon fiber plate |
| Interface Support | USB*2, TYPE-C, DC IN, HDMI, RJ45, RS232 |
| Antenna Interface | SMA interfaces |
| Interaction | 17.3" high brightness screen, mouse and keys |
| Control Elements | Power buttons, three-segment toggles, two-axis rockers |
| Industrial Control Host | |
| Processor | Intel I7 |
| Operating System | Windows 10 |
| Memory / Hard Disk | 16G RAM / 256G SSD |
| Display & Power | |
| Resolution / Ratio | 1920*1080 / 16:9 |
| Max Brightness | 1000nit (Auto-sensing adjustment) |
| Power Management | Overcurrent, overvoltage, and low-voltage protection |

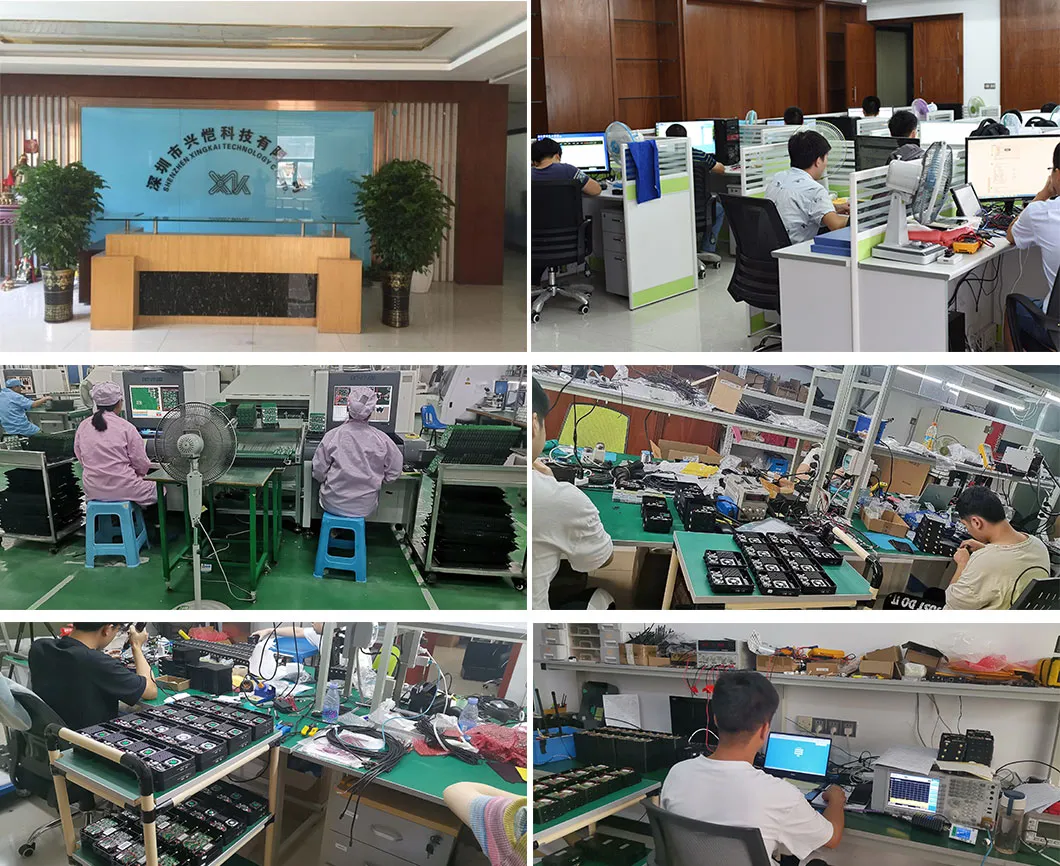

We are a global leading high-tech enterprise engaged in the R&D development and production of RF wireless communication systems for broadcast, public surveillance, and defense industries. Our R&D team has over 20 years of professional technical experience in designing and delivering end-to-end communications and advanced networking solutions.

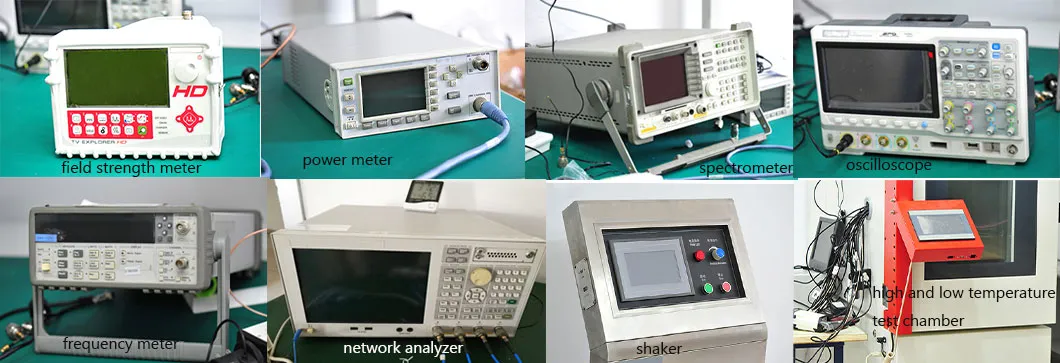

Exhibitions & Testing
Packing: All units are packed in professional reinforced shipping boxes to ensure safety during transit.
Logistics: Efficient shipping via major international ports including Yantian, Shekou, or Hong Kong.
