Robotic CNC Cutting and Drilling System for Front Pocket Hard Shell Luggage
Robotic CNC Cutting and Drilling System for Front Pocket Hard Shell Luggage
Robotic CNC Cutting and Drilling System for Front Pocket Hard Shell Luggage
Robotic CNC Cutting and Drilling System for Front Pocket Hard Shell Luggage
Robotic CNC Cutting and Drilling System for Front Pocket Hard Shell Luggage
1 / 5
Robotic CNC Cutting and Drilling System for Front Pocket Hard Shell Luggage
Robotic CNC Cutting and Drilling System for Front Pocket Hard Shell Luggage
Robotic CNC Cutting and Drilling System for Front Pocket Hard Shell Luggage
Robotic CNC Cutting and Drilling System for Front Pocket Hard Shell Luggage
Robotic CNC Cutting and Drilling System for Front Pocket Hard Shell Luggage

Robotic CNC Cutting and Drilling System for Front Pocket Hard Shell Luggage

Customization: Available
After-sales Service: Online&Field Service
Warranty: One Year, One Year
Send Inquiry

Product Description

Basic Info.
Model NO.
RB-F10-121305-FC
After-Sales Service
Technical Support, Online Support, Spare Parts
OEM
Can Be Customized Per Required
Leadtime
15days
Suitable Industry
Luggage
Function
Trimming and Punching of Trolley Cases
Transport Package
Plastic Stretch Film and Wooden Pack
Specification
RB-F10-121305-FC
Origin
China
HS Code
8465990000
Packaging & Delivery
Package Size
340.00cm * 229.00cm * 187.00cm
Package Gross Weight
2600.000kg
Product Description
China's Premier Supplier of Luggage and Suitcase Production Machinery

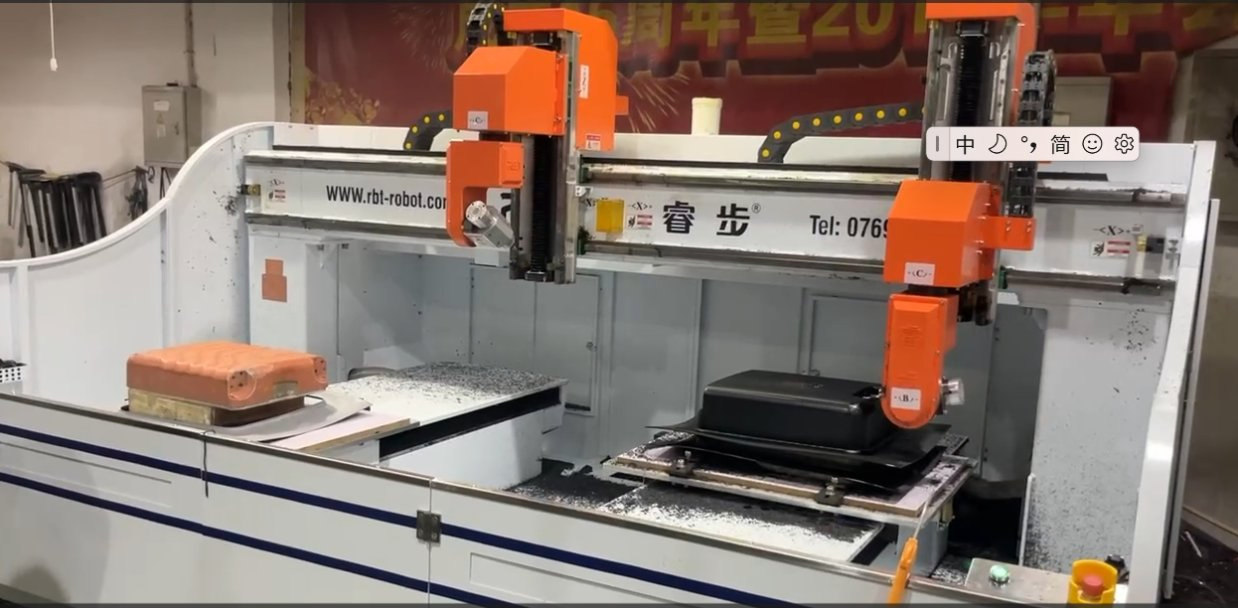

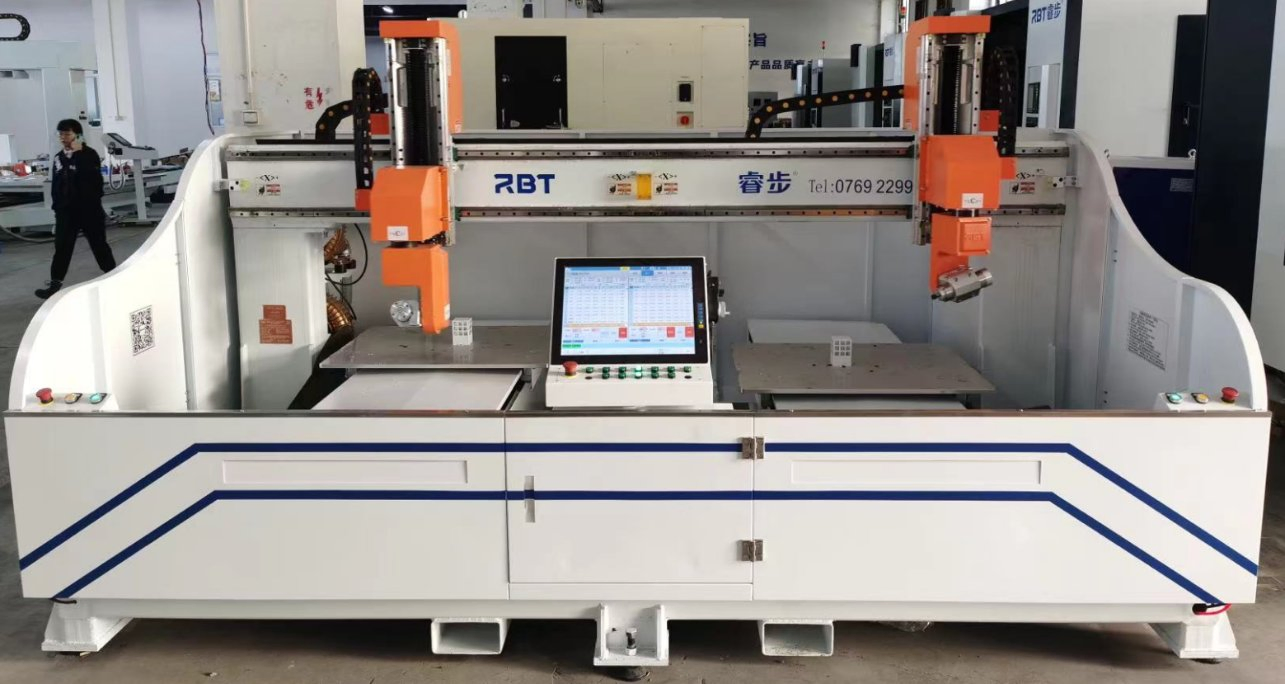

Robotic CNC Cutting and Drilling System

The manufacturing plant covers an area of about 26,660 square meters:

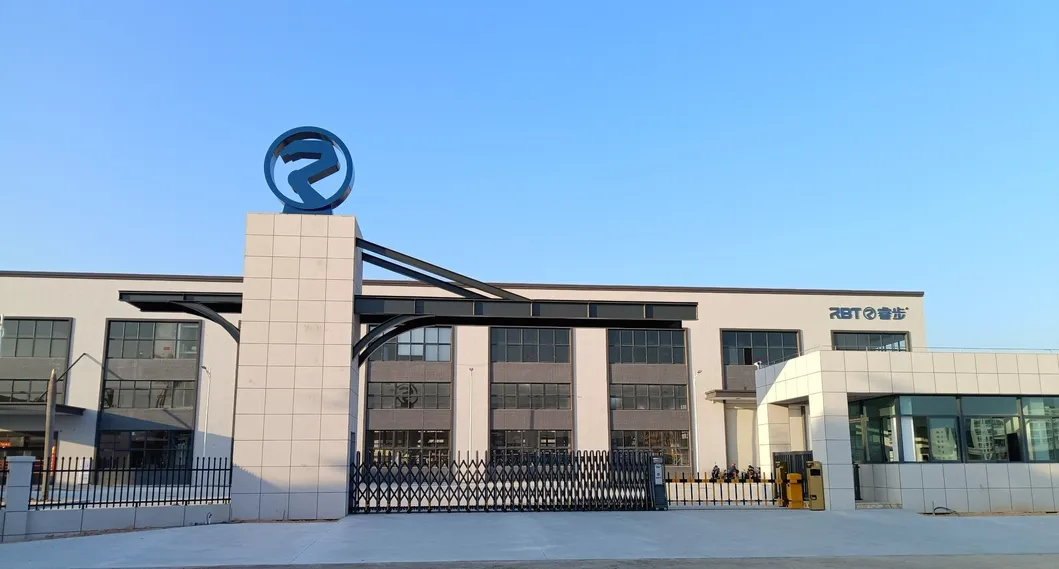

Plant View 1

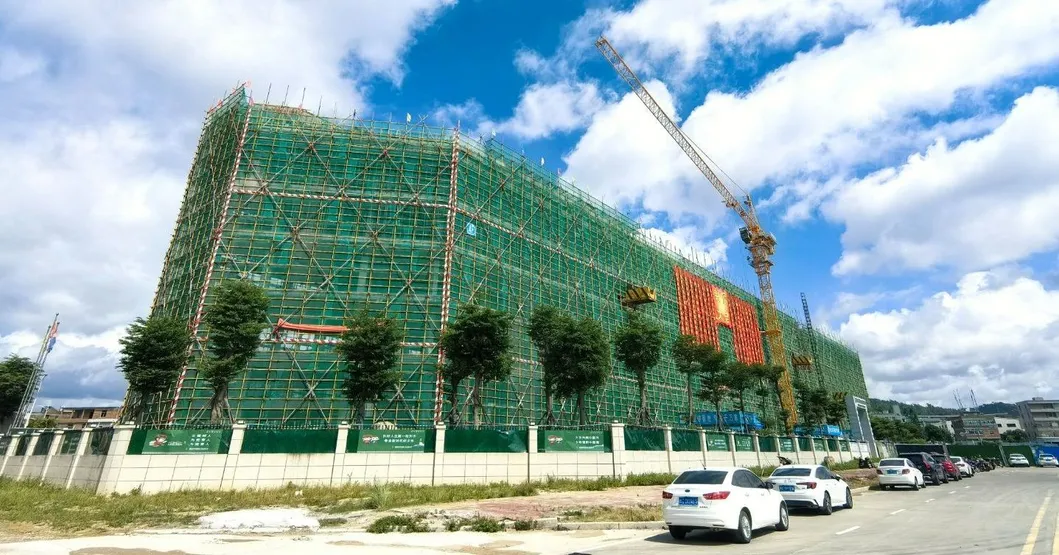

Plant View 2
Plant View 3

Material-welding assembly and debugging integration:

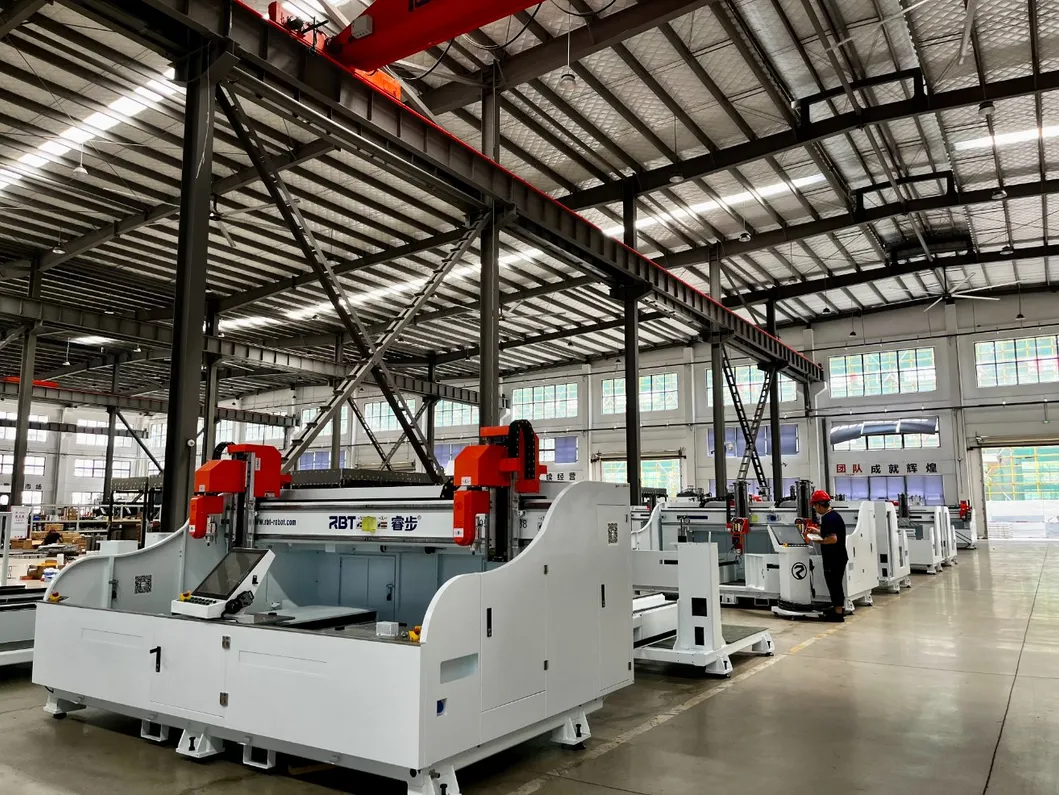

Welding Assembly 1

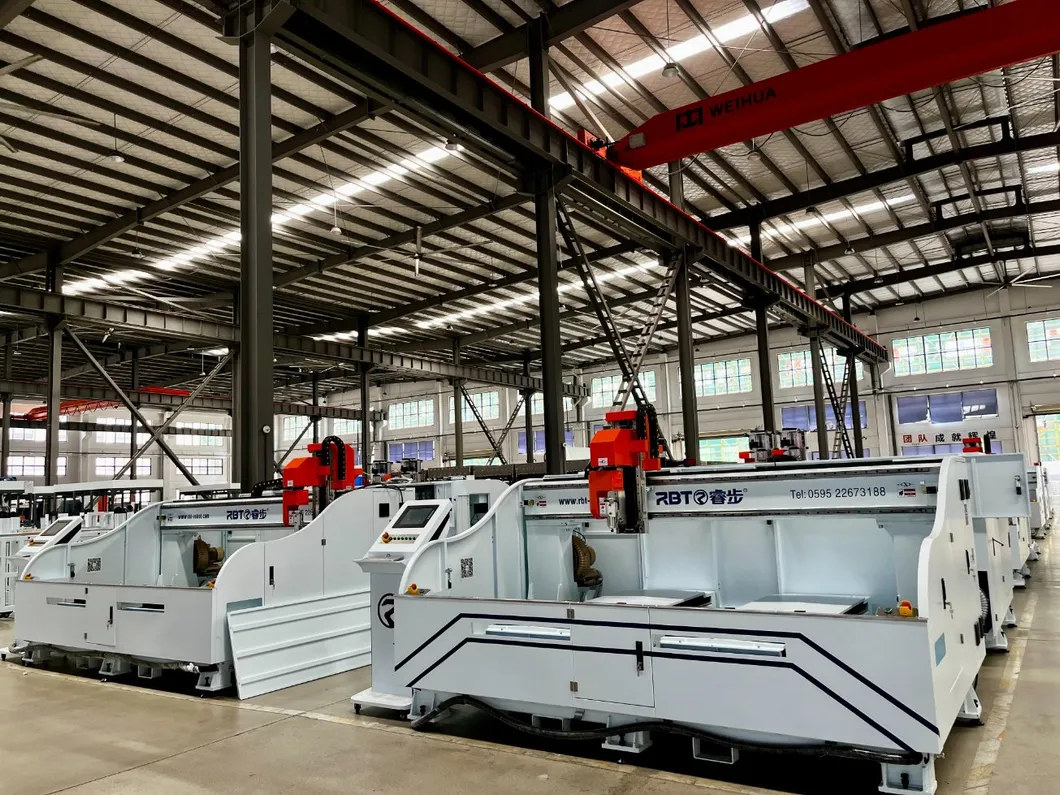

Welding Assembly 2

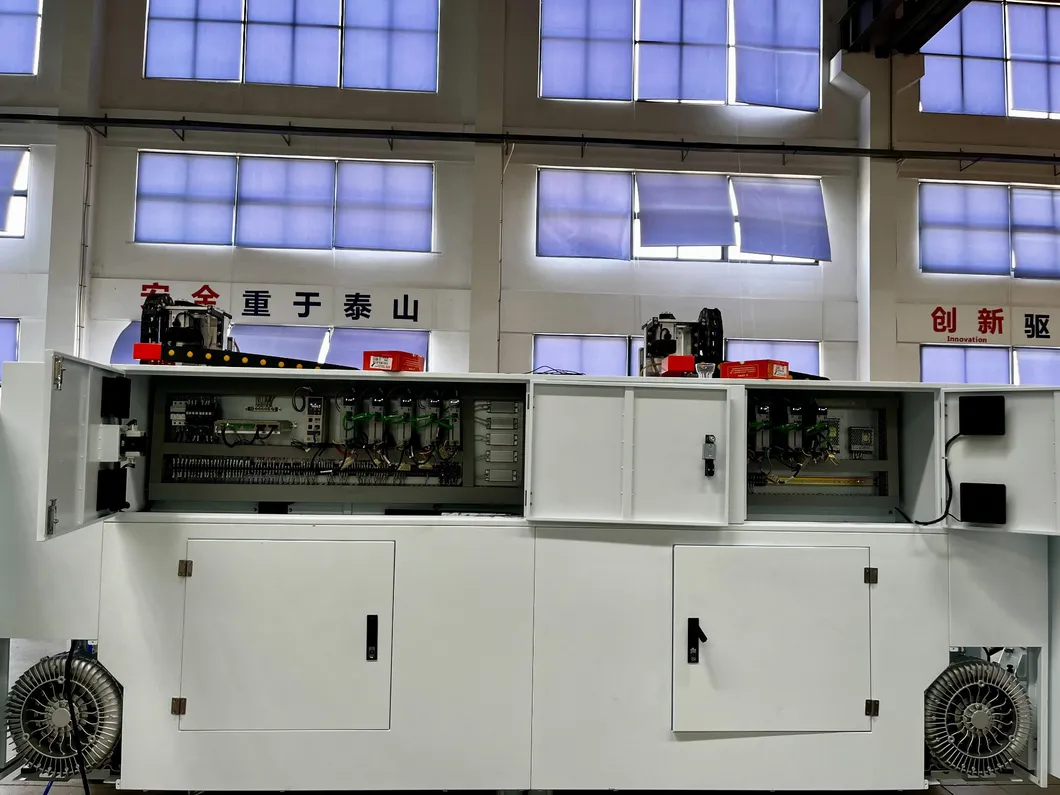

Welding Assembly 3

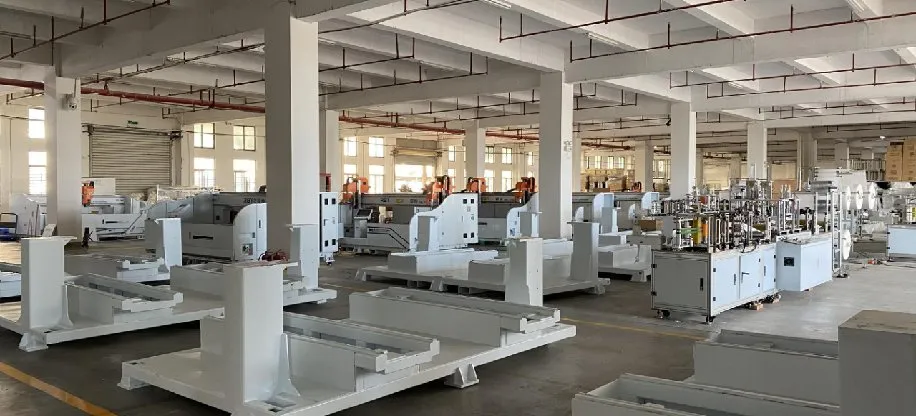

Debugging 1

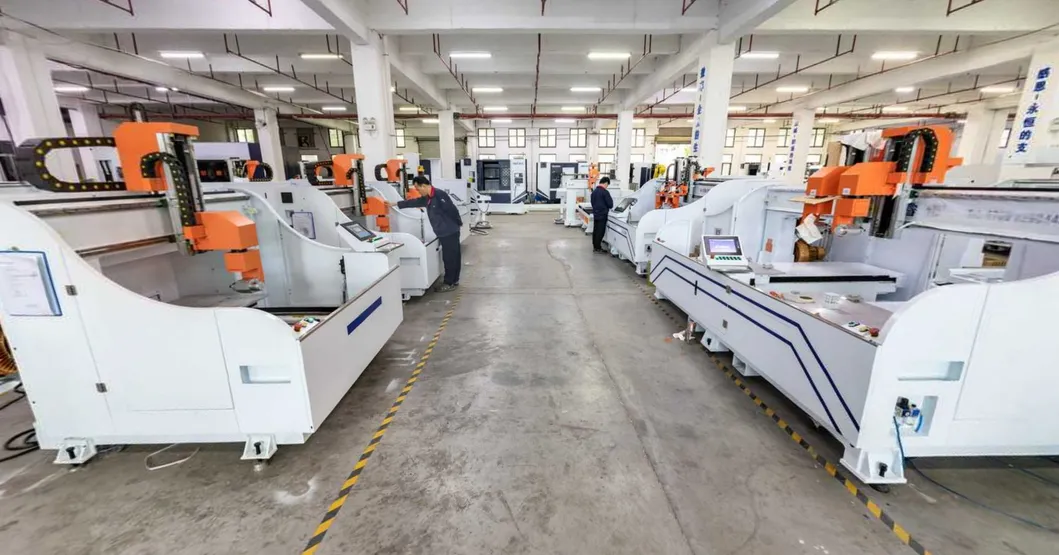

Debugging 2

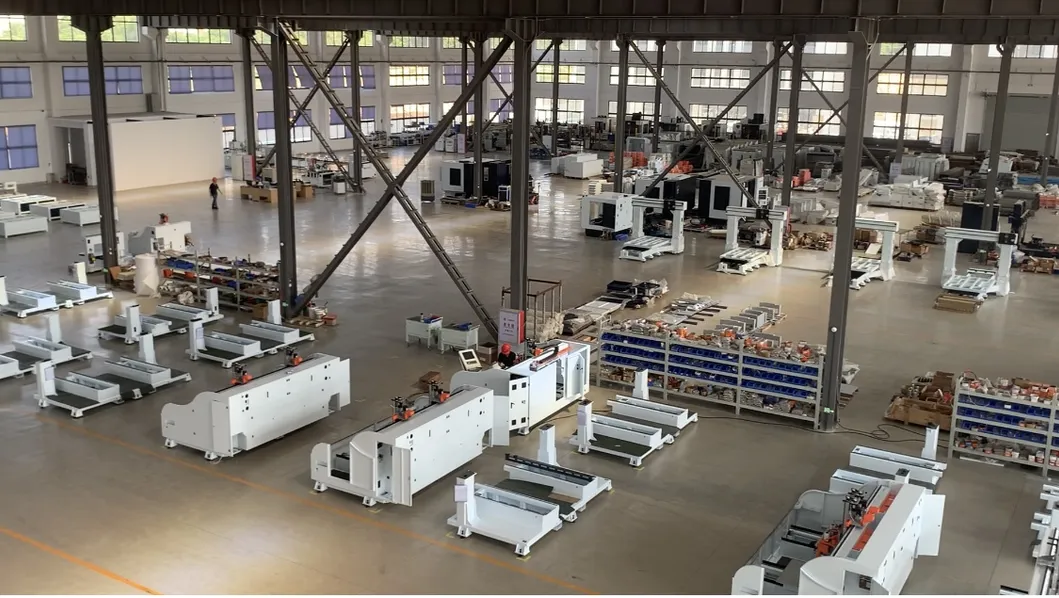

Debugging 3

Warehouse:

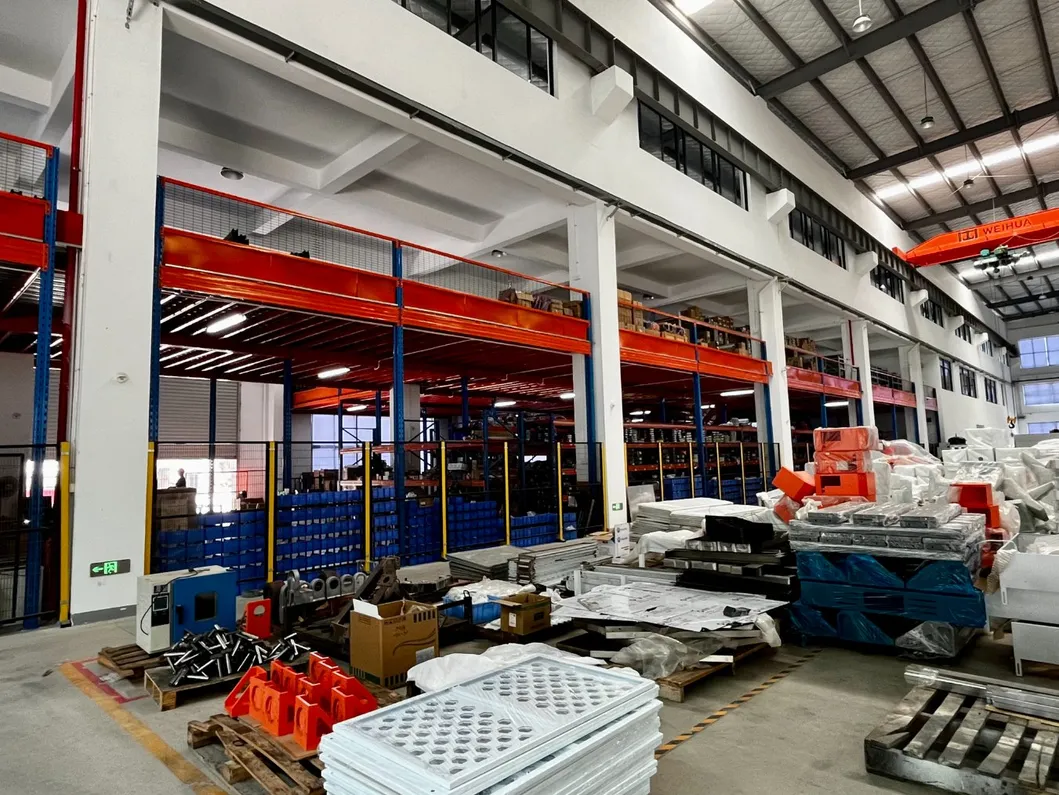

Warehouse 1

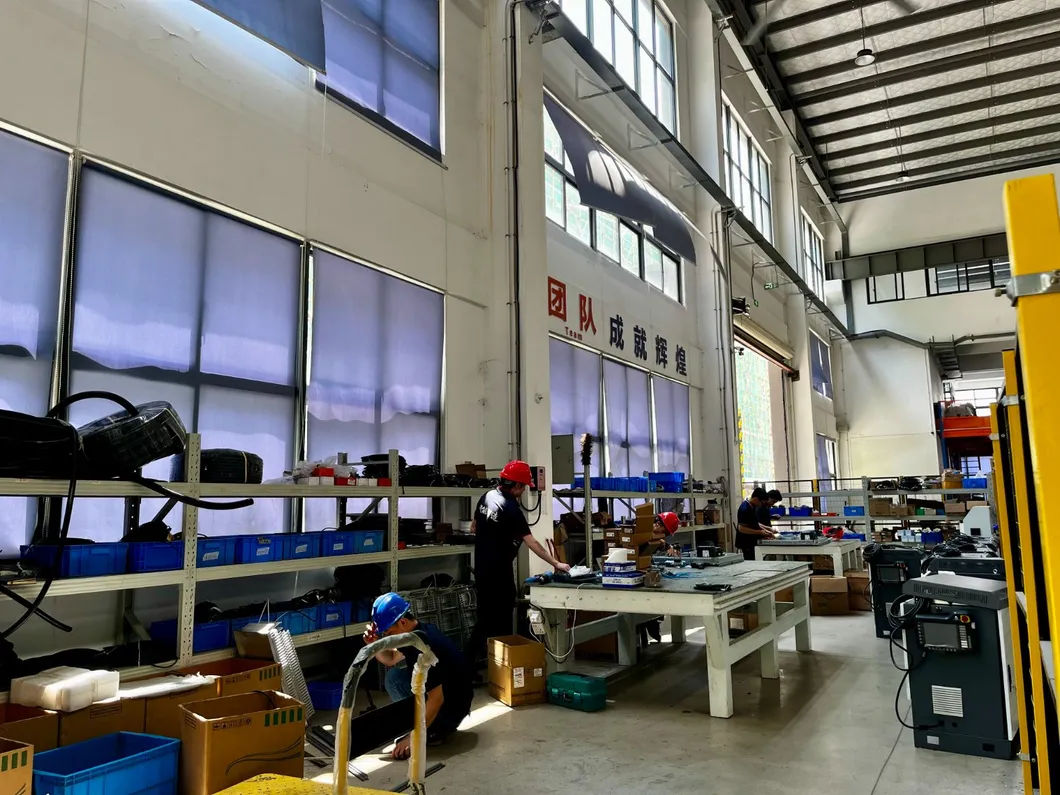

Warehouse 2

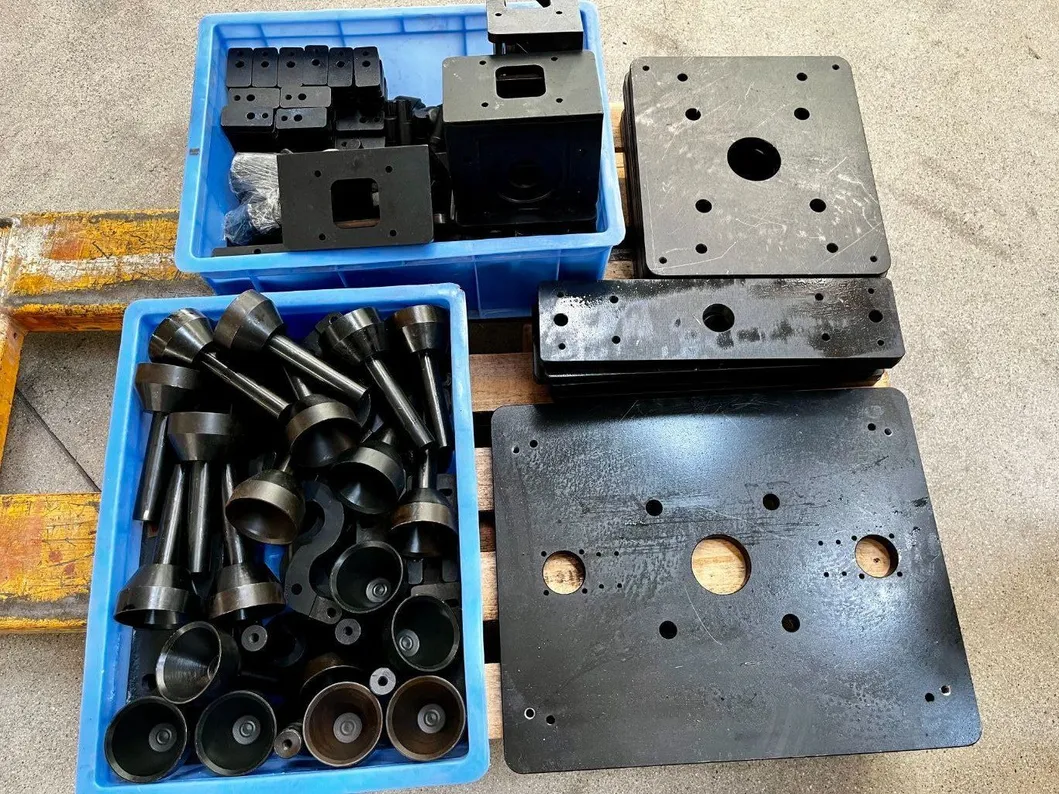

Warehouse 3
Technical Parameters
No. Components/Specification Brand/Parameter
1Control SystemTaiwan SYNTEC/HNC
2ServoInovance/HCFA
3Linear GuideTaiwan SHAC
4ScrewTaiwan TBI
5RackLIANGCHI
6Electrical componentsFrance Schneider
7Pneumatic ComponentsTaiwan AirTAC
8X/Y axis reducerJapan SHIMPO
9C/B axis reducerJapan SHIMPO
10SpindleCustomized High Precision Spindle
11DimensionsL3400*W2290*H1870mm
12Voltage380V
13Total power14.2KW
14Programming timeAbout 2 hours
15Call toolpath timeAbout 10 minutes
16Programming modeManual teaching or offline programming
17Storage path memory512M / U disk support
18Processing modeFull luggage holes and lines
19Lubrication systemAutomatic refueling
20X-axis effective stroke2*1255mm / 2*850mm
21Y-axis effective stroke1220mm / 700mm
22Z-axis effective stroke485mm / 210mm
23C-axis effective stroke±540°
24B-axis effective stroke±130°
25Repeatability±0.05mm
26X/Y axis max speed45000mm/min
27Z axis max speed28000mm/min
Machine Features
⚙️
Computer controlled three dimension cutting, processing all luggage holes and any parts.
⚙️
Two separate cutting platforms for stable production and enhanced security while reducing labor intensity.
⚙️
Path synchronization: Stored paths can be copied and applied across multiple machines.
⚙️
Closed design (optional) for cleanliness and noise reduction, with automatic loading/unloading support.
⚙️
Easy-to-learn offline programming; changing luggage models takes only 10 minutes.

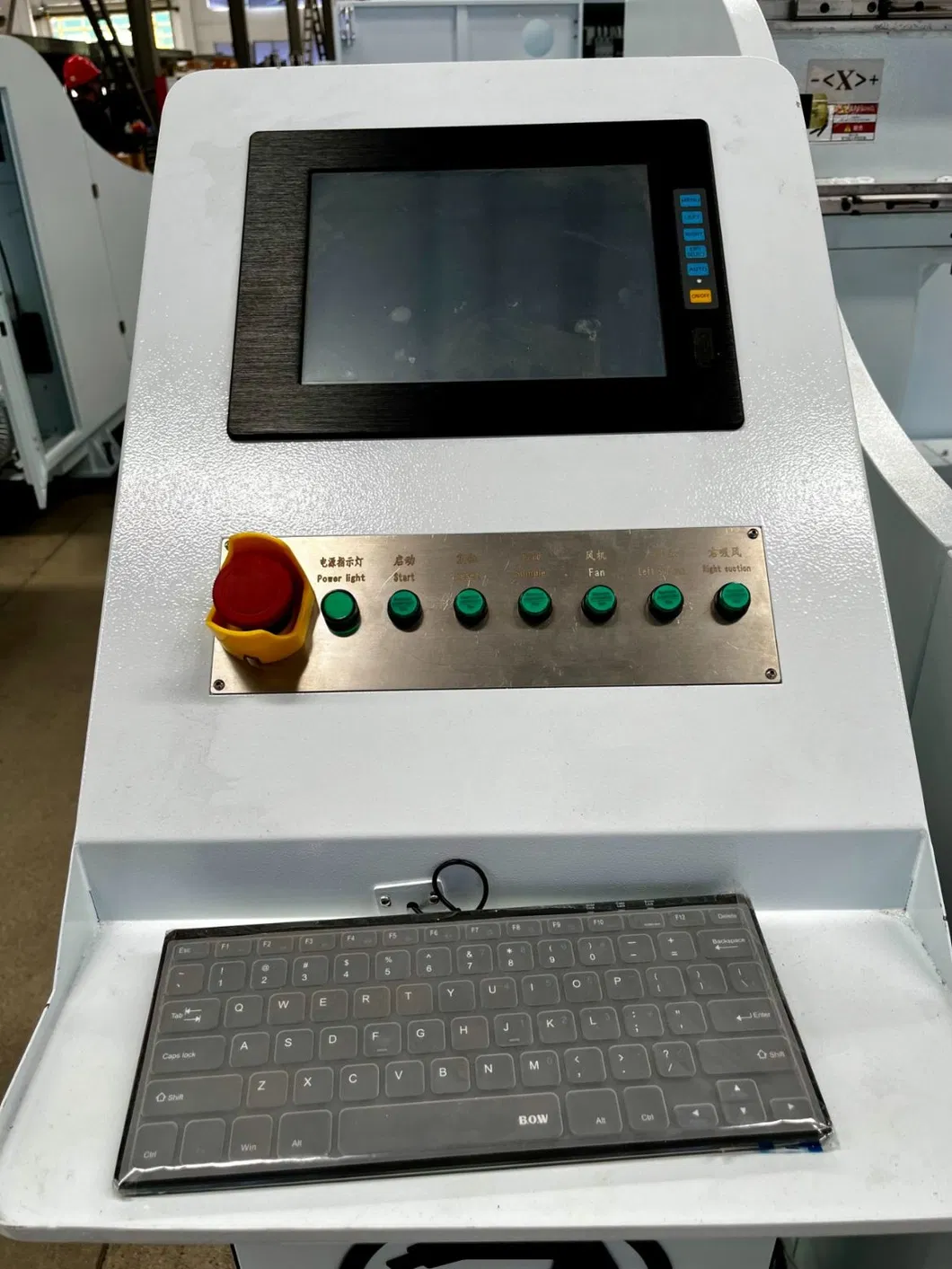

Feature Detail 1

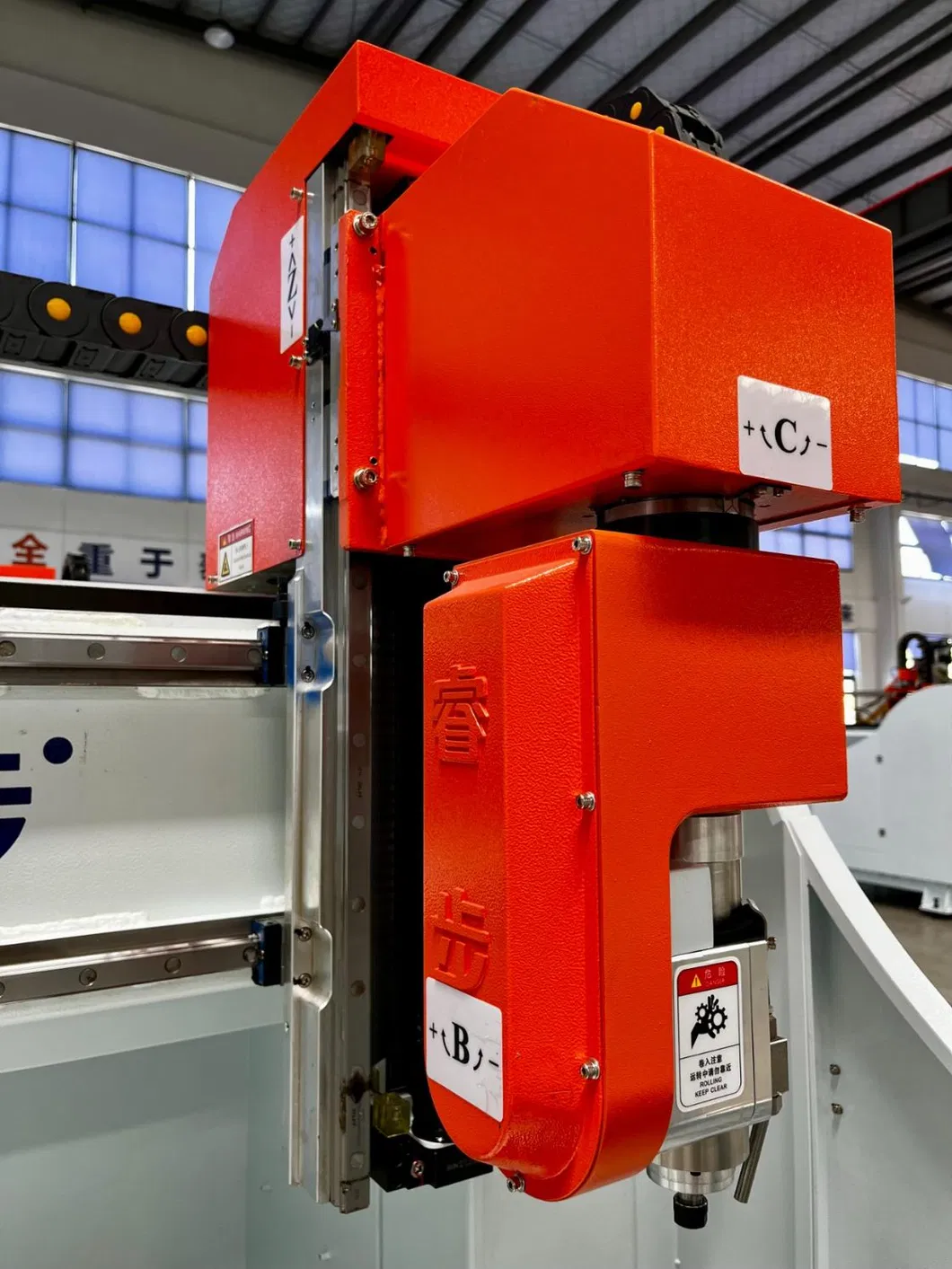

Feature Detail 2

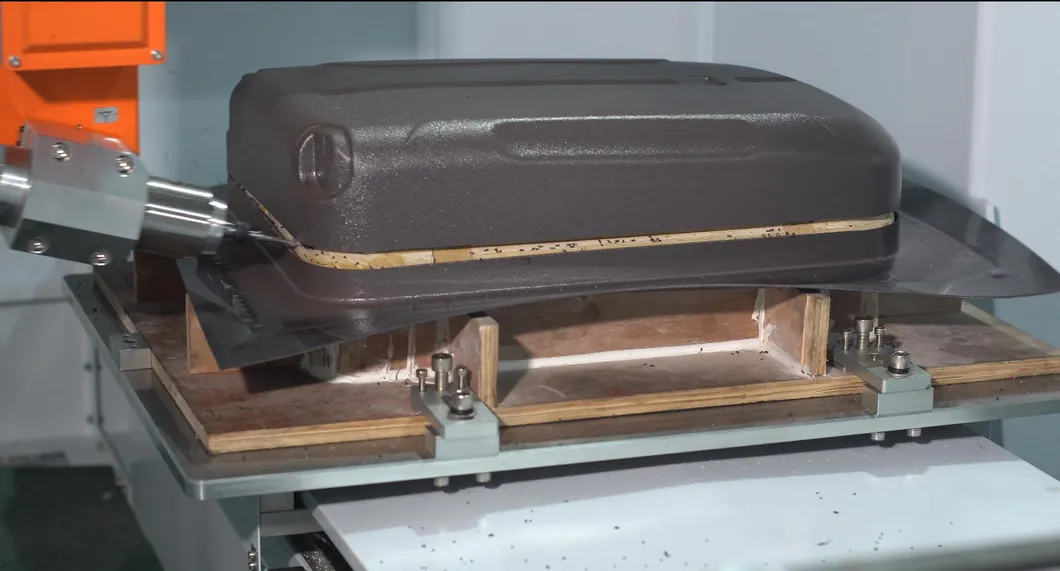

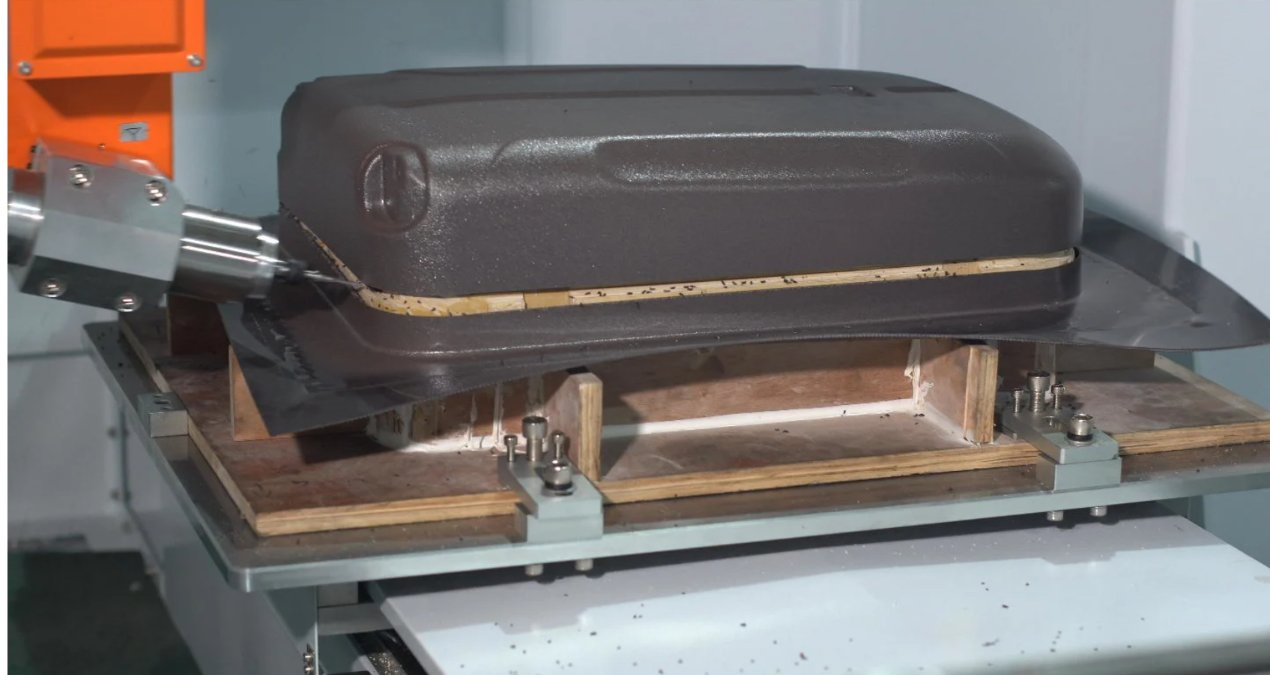

Processing View 1

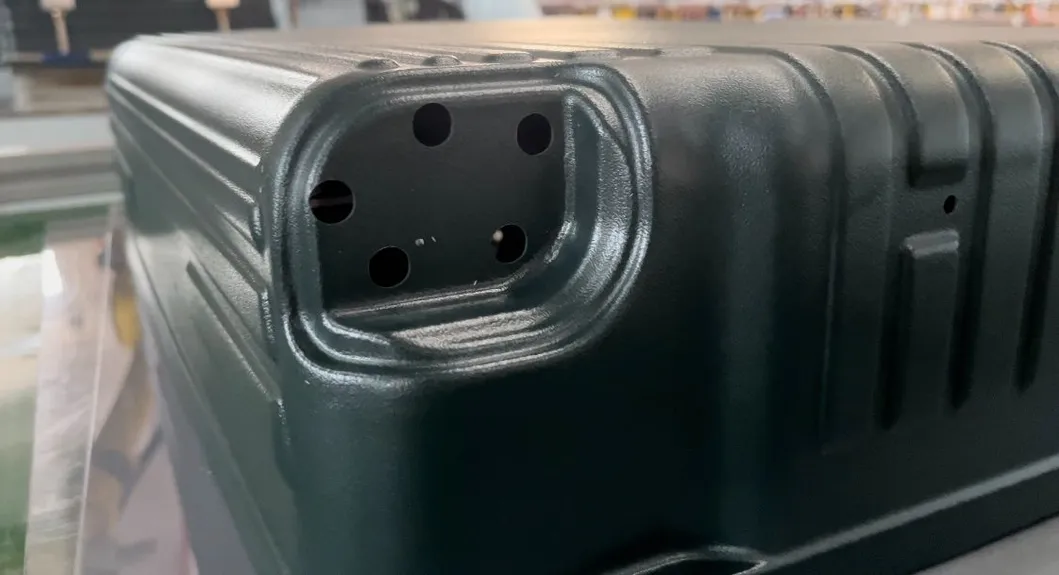

Processing View 2
Cooperation & Packing

Some Cooperation customers:

Cooperation Customers

Packing & Delivery:

📦 Plastic film packaging in plywood wooden cases or per requirement.
🚢 Shipping: Container transport.
Packing 1

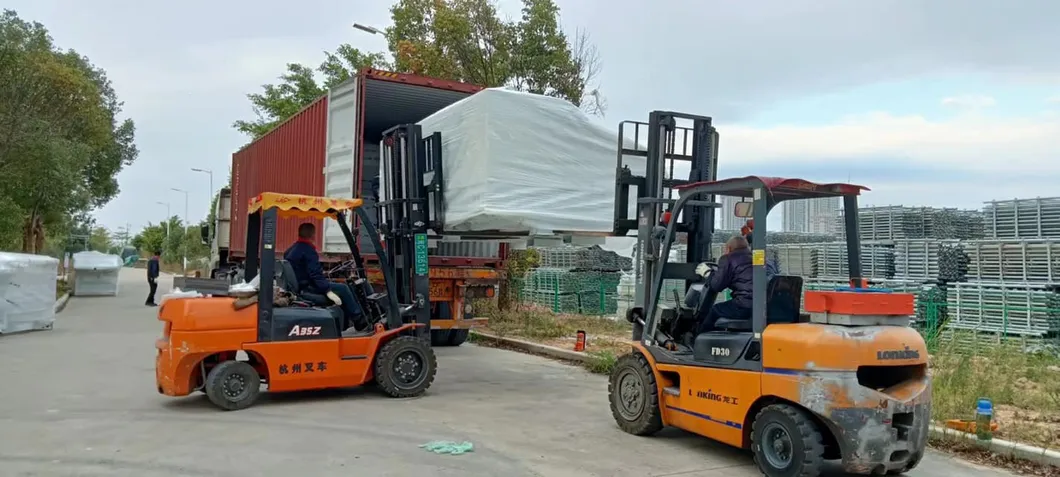

Packing 2
Frequently Asked Questions
What are the key benefits of using a ten-axis CNC cutting punching machine?
Benefits include enhanced precision, lower tooling costs, faster production times, improved surface finishes, and the capability to create complex geometries with high accuracy.
How does a CNC cutting machine improve production efficiency?
It operates on ten axes, allowing multiple tasks without repositioning the workpiece, which significantly reduces cycle times and boosts overall production efficiency.
What materials are compatible with these machines?
The machines are optimized for thermoplastic materials used in luggage manufacturing, such as ABS, polycarbonate, and polypropylene (PP).
Is operating a CNC cutting machine difficult for a regular worker?
No. With a straightforward manual handwheel programming method, even a regular worker can effectively operate the machine.
What maintenance practices are essential for longevity?
Regular lubrication, timely replacement of worn tools, calibration checks, software updates, and keeping the machine clean from debris and dust.
How does it handle intricate designs and customizations?
Multi-axis control enables precise movement to manage intricate designs, facilitating the creation of complex shapes and smooth finishes required in shell manufacturing.
