| Model NO. | XK-GS300 |
| Transport Package | Carton Packing |
| Specification | 100*55*75cm, 25kg/pcs |
| Origin | China |
| Production Capacity | 50000PCS/Year |

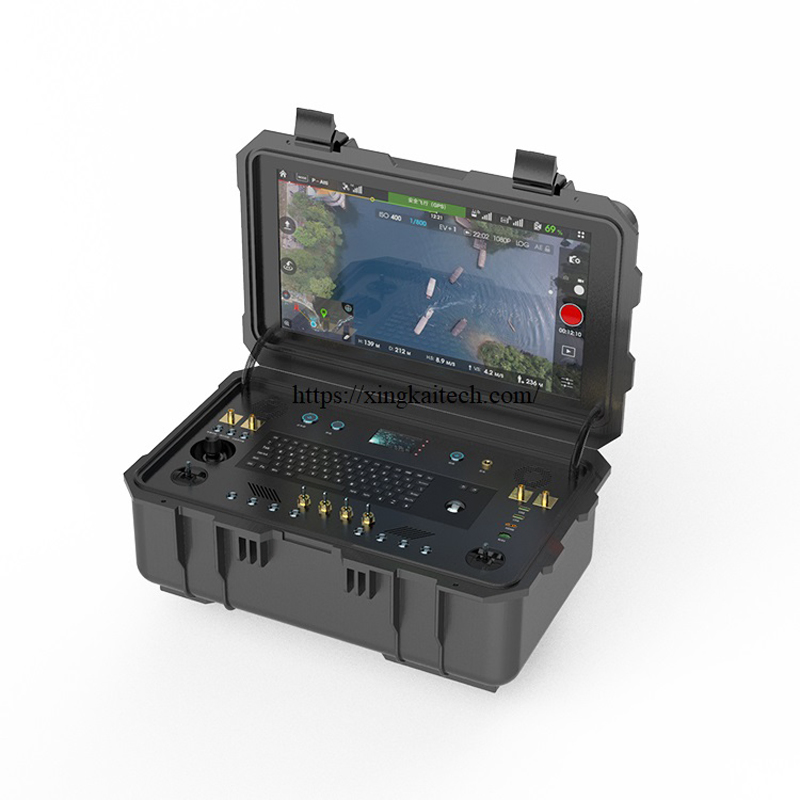

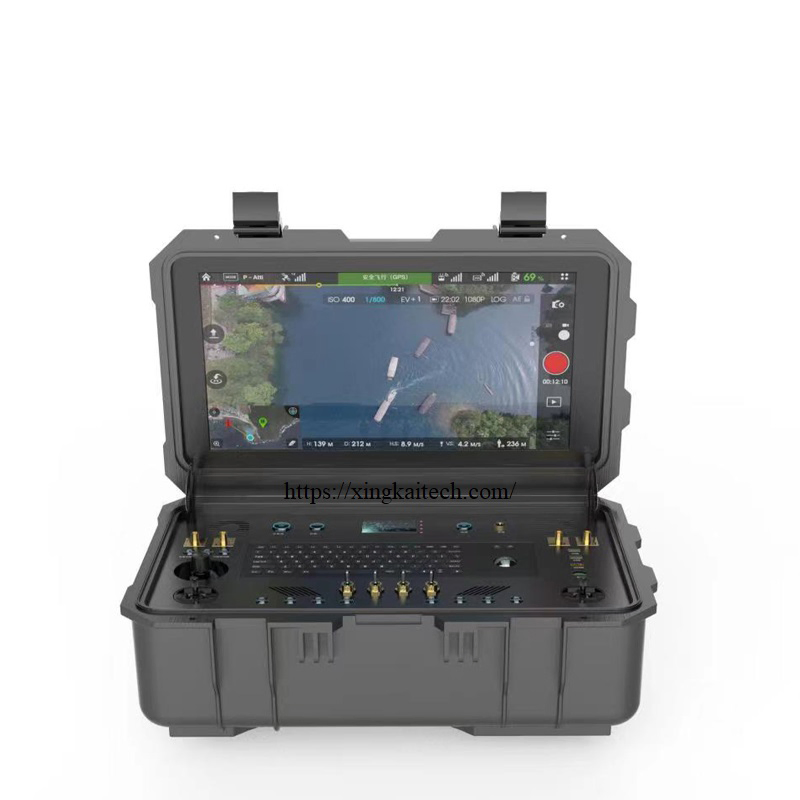

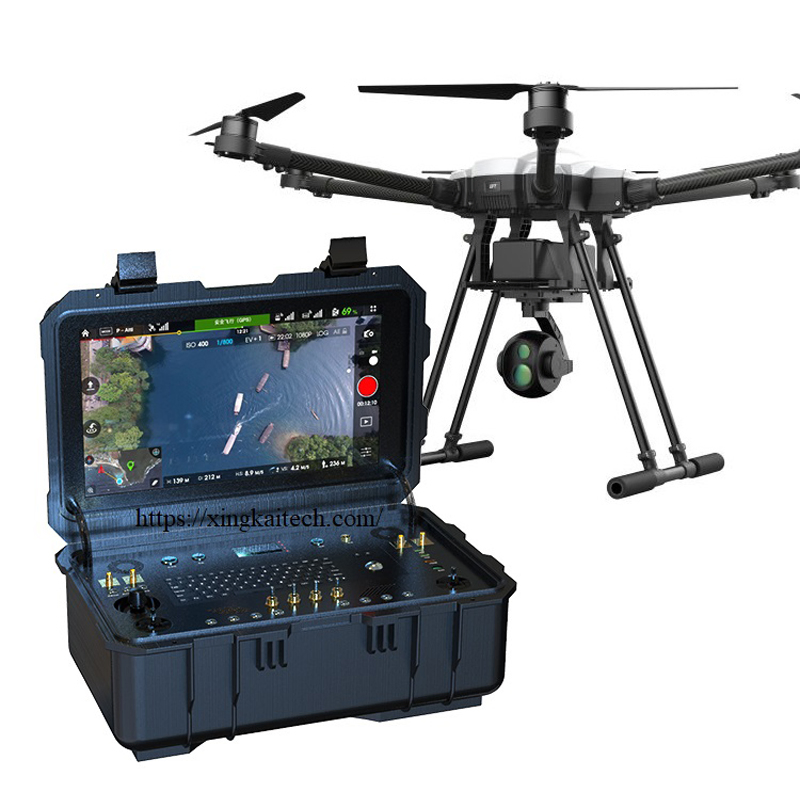

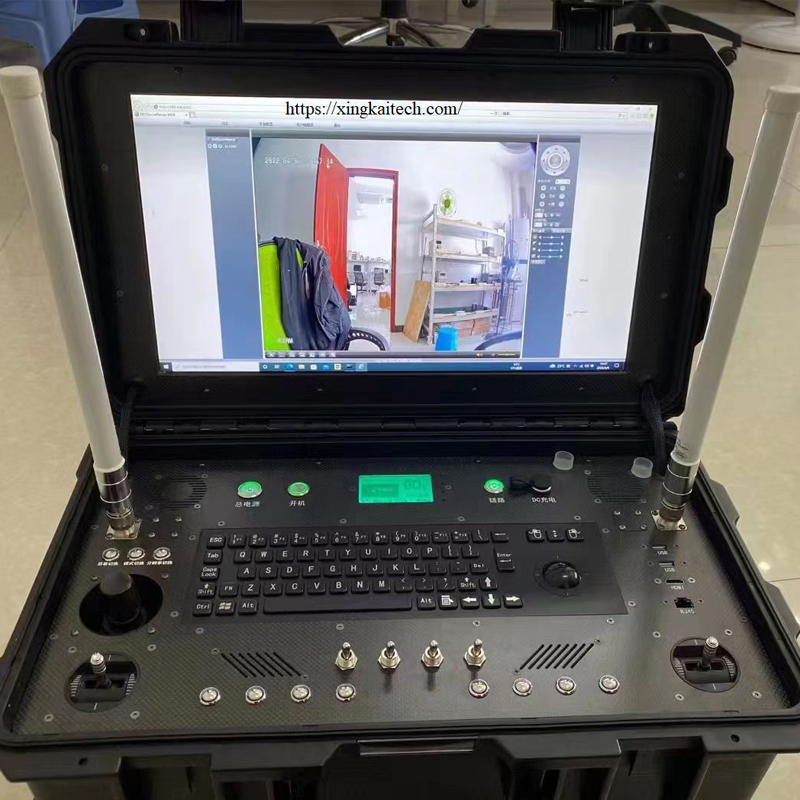

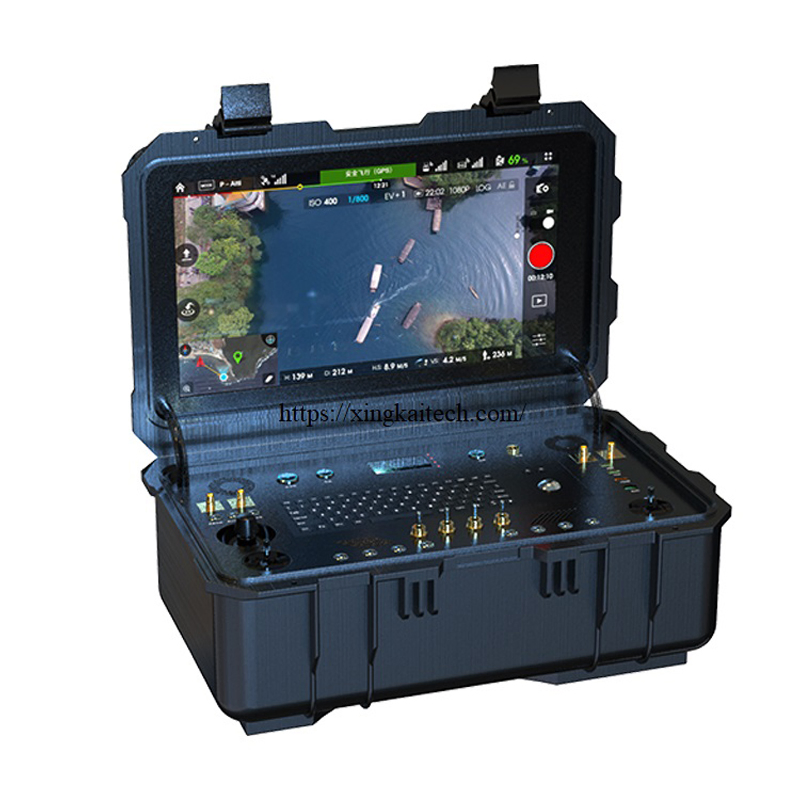

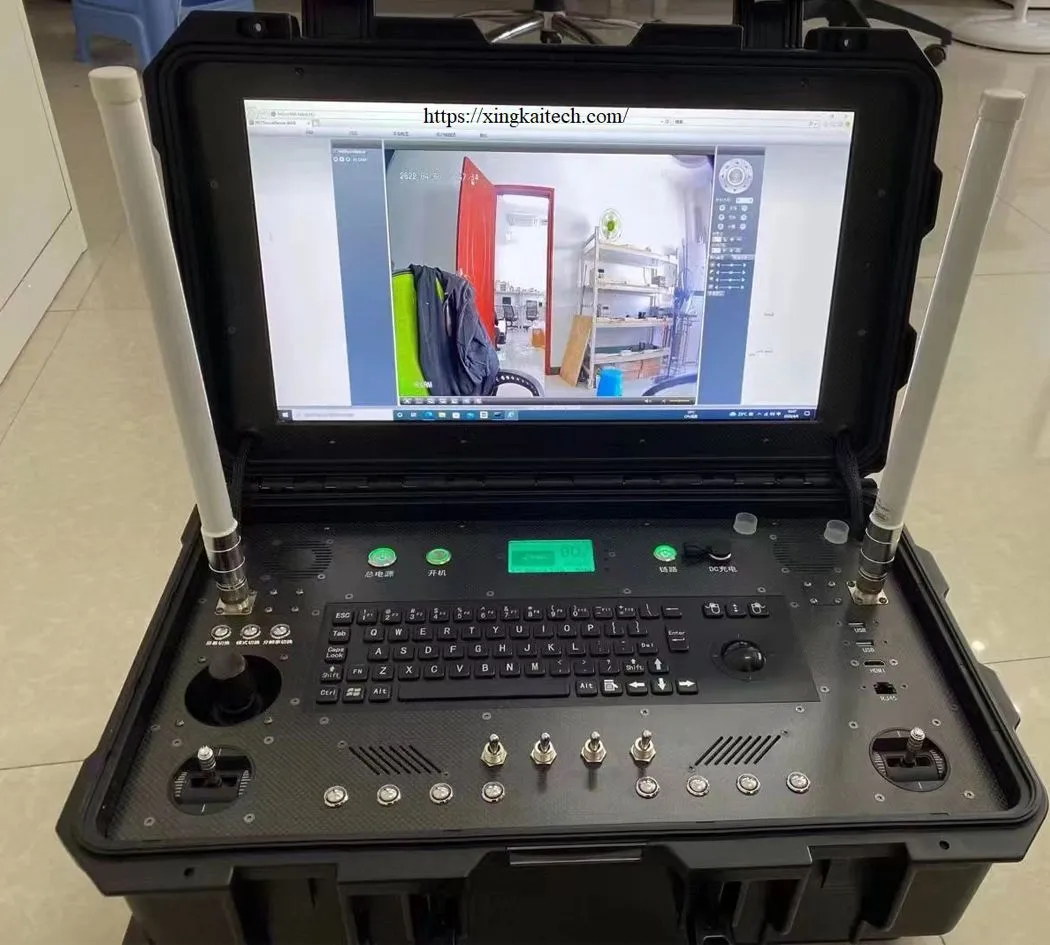

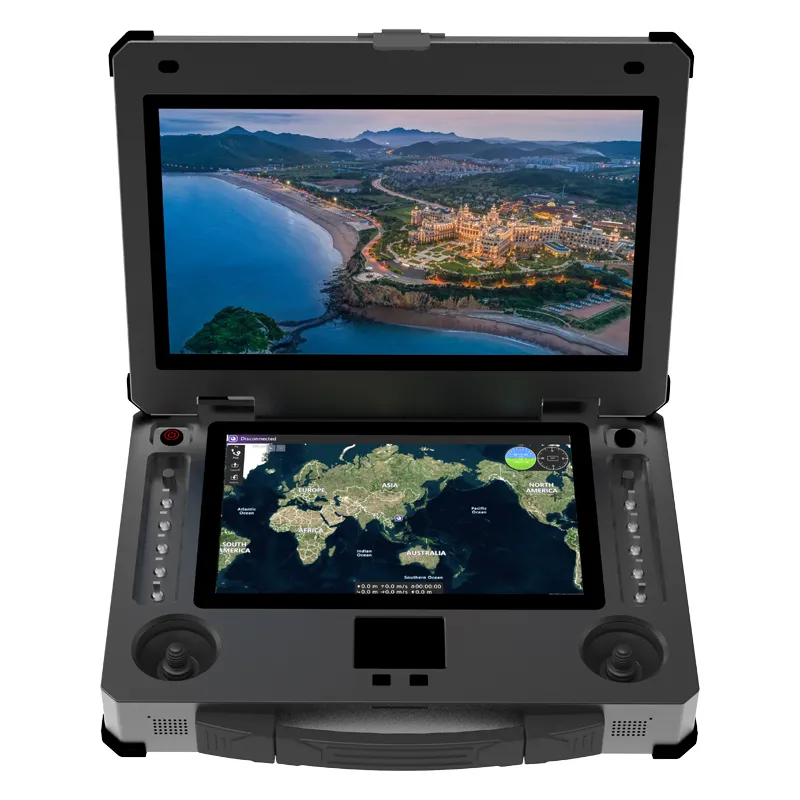

XK-GS310 portable camera control station features a suitcase design for easy portability. It is equipped with a high-brightness screen visible in direct sunlight and operates on a mainstream WINDOWS system, compatible with various professional software applications.
| Control Station Box | |
|---|---|
| Cover size (L x W x H) | 490mm×390mm×190mm |
| Overall weight | 15KG |
| Shell material | PVC composite materials |
| Protection level | IP67 (Closing) |
| Working temperature | -10°C to 60°C |
| Color Type | Matte black |
| Portable features | Ready to use upon opening, with external handle |
| Operation Panel | |
| Panel material | 3K carbon fiber plate |
| Interface support | USB*2, TYPE-C, DC IN, HDMI, RJ45, RS232 |
| Feeder and interface | SMA interfaces |
| Human computer interaction | 17.3" high brightness screen, mouse and keys |
| Switch parameters | Main power, link power, three-segment toggle × 2, key × 4, two-end toggle × 2, two-axis rocker × 2 |
| Industrial Control Host | |
| Processor | I7 |
| Operating System | Windows 10 |
| Memory | 16G |
| Hard disk | 256G |
| Display Details | |
| Size | 17.3 inch |
| Resolution | 1920*1080 (16:9) |
| Backlight type | LED |
| Max brightness | 1000nit (Auto-sensing adjustment) |
| Battery & Power Supply | |
| Electricity display | Voltage, current, remaining capacity, power, etc. |
| System protection | Overcurrent, overvoltage, low-voltage, over-capacity, over-power |
| Battery protection | Overcurrent, over temperature, over voltage, low voltage |

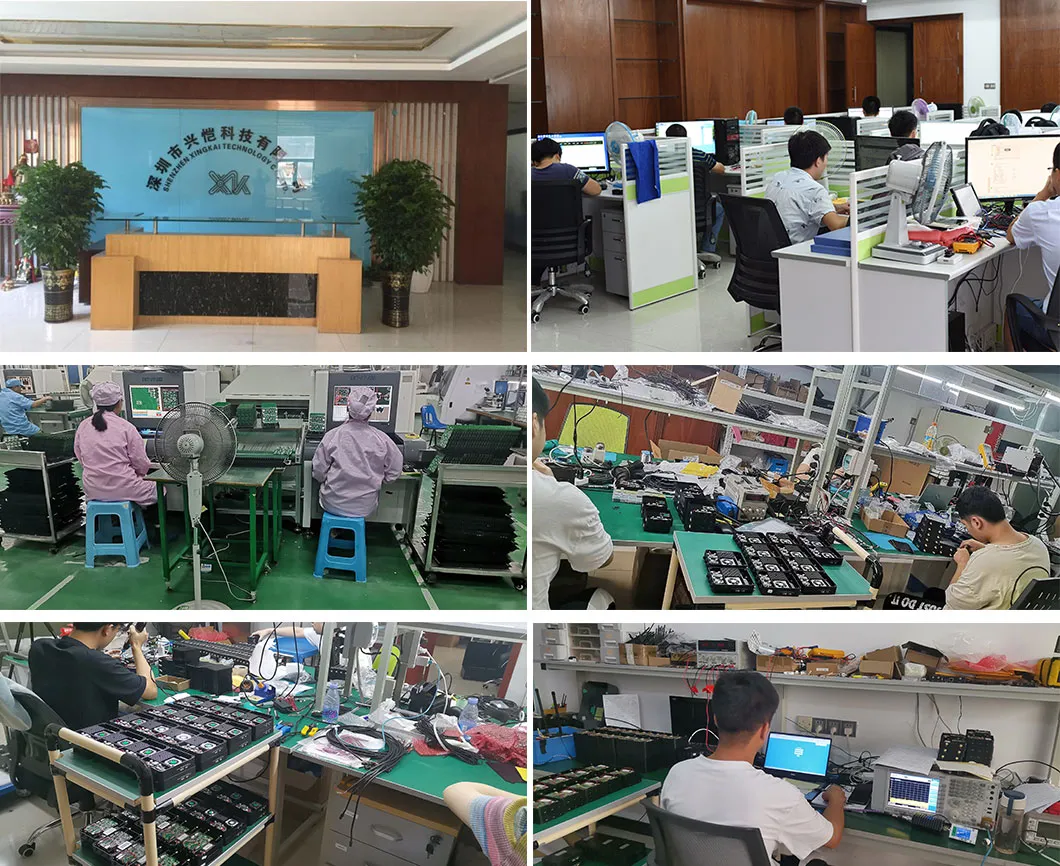

We are a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for broadcast, public surveillance, and defense industries. Our R&D team has over 20 years of professional technical experience in designing and delivering end-to-end communications and advanced networking solutions.
