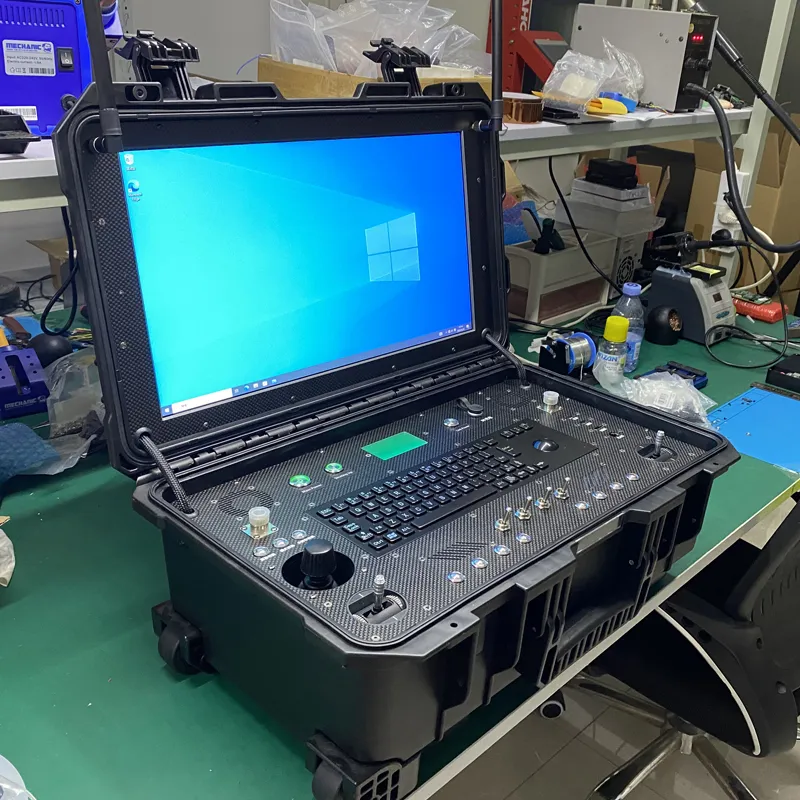

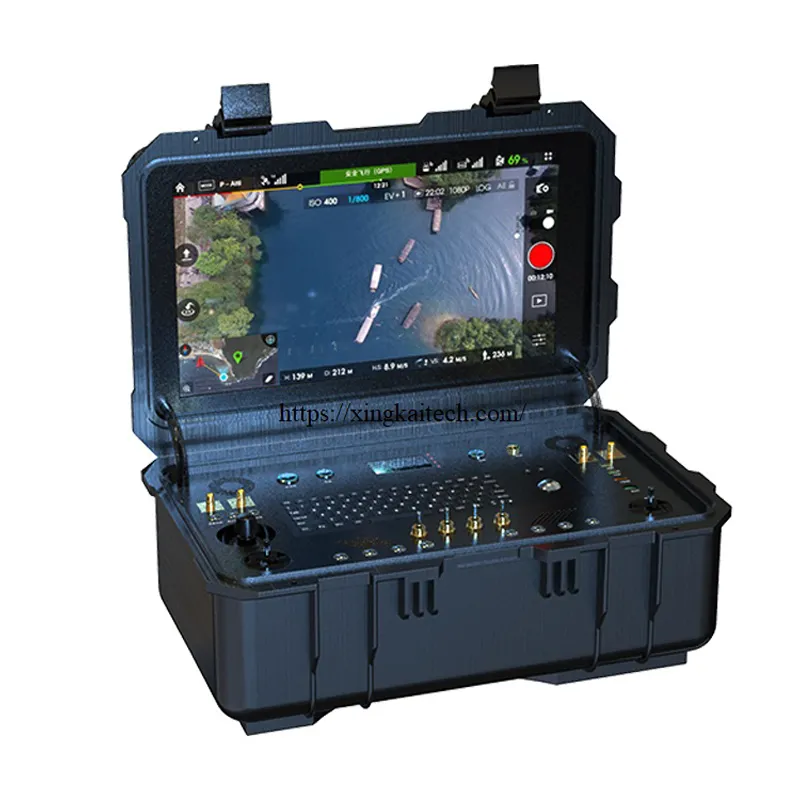

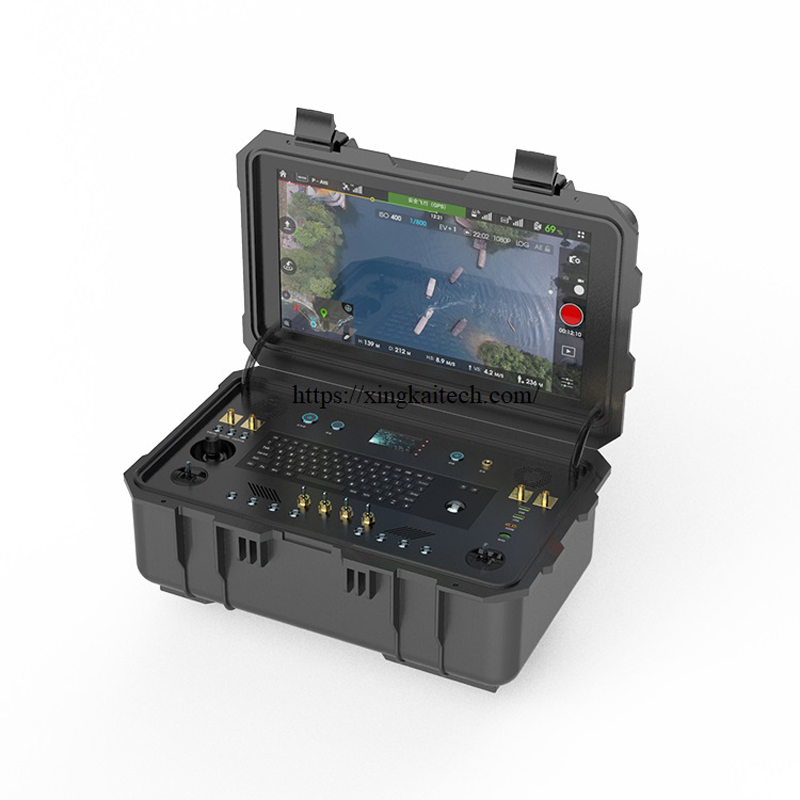

The XK-GS310 portable camera control station features a rugged suitcase design, ensuring maximum portability and durability for field operations. Equipped with a high-brightness screen, it remains clearly visible even under direct sunlight.
Running on the mainstream Windows 10 operating system, it offers versatile compatibility, allowing for the pre-installation of various professional control and monitoring software to suit diverse mission requirements.
| Technical Parameters | |
|---|---|
| Control Station Box | |
| Dimensions (L x W x H) | 490mm × 390mm × 190mm |
| Overall Weight | 15KG |
| Shell Material | PVC Composite Materials |
| Protection Level | IP67 (Closed) |
| Working Temperature | -10°C to 60°C |
| Portable Features | Ready to use upon opening, external handle included |

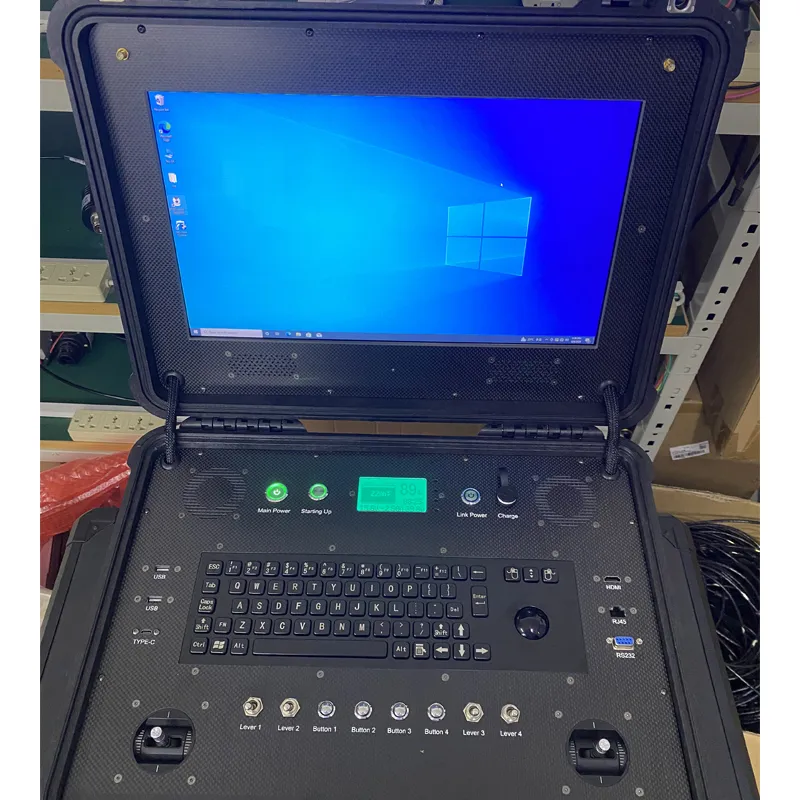

| Operation Panel | |
| Panel Material | 3K Carbon Fiber Plate |
| Interface Support | USB*2, TYPE-C, DC IN, HDMI, RJ45, RS232 |
| Antenna Interface | SMA Interfaces |
| Screen Details | 17.3" High brightness screen, mouse and keys |
| Switch Parameters | Main power supply, power on button, link power supply, three-segment toggle × 2, key × 4, two-end toggle × 2, two-axis rocker × 2 |
| Industrial Control Host | |
| Processor | Intel I7 |
| Memory / Hard Disk | 16G RAM / 256G SSD |
| Display Specs | |
| Resolution / Ratio | 1920*1080 / 16:9 |
| Max Brightness | 1000nit (Auto-sensing adjustment) |
| Battery & Power | |
| Monitoring | Current voltage, current, remaining capacity, power |
| Protection System | Overcurrent, overvoltage, low-voltage, over-temperature, over-capacity protection |
