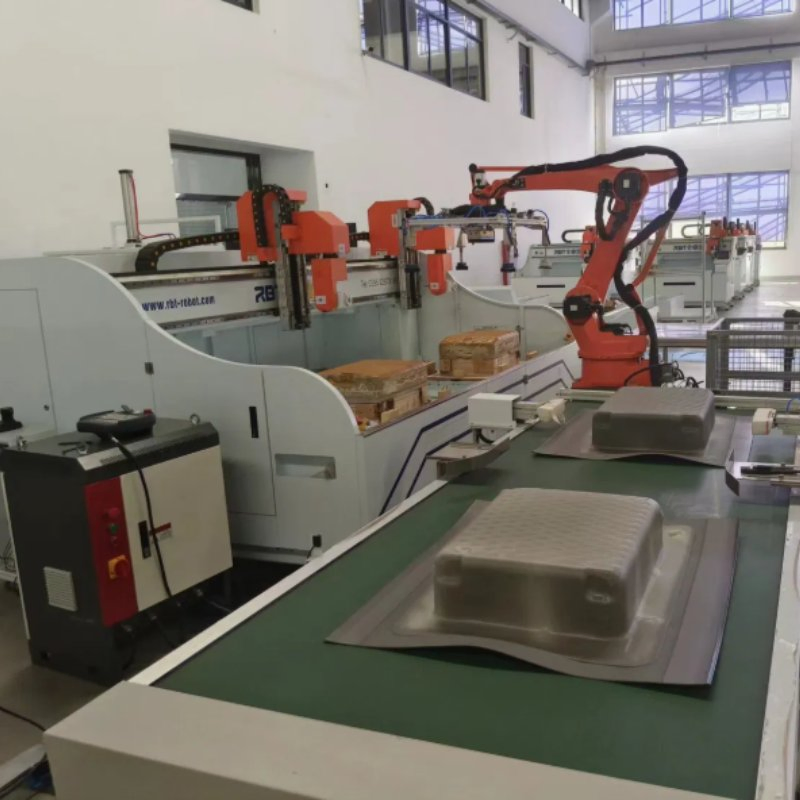

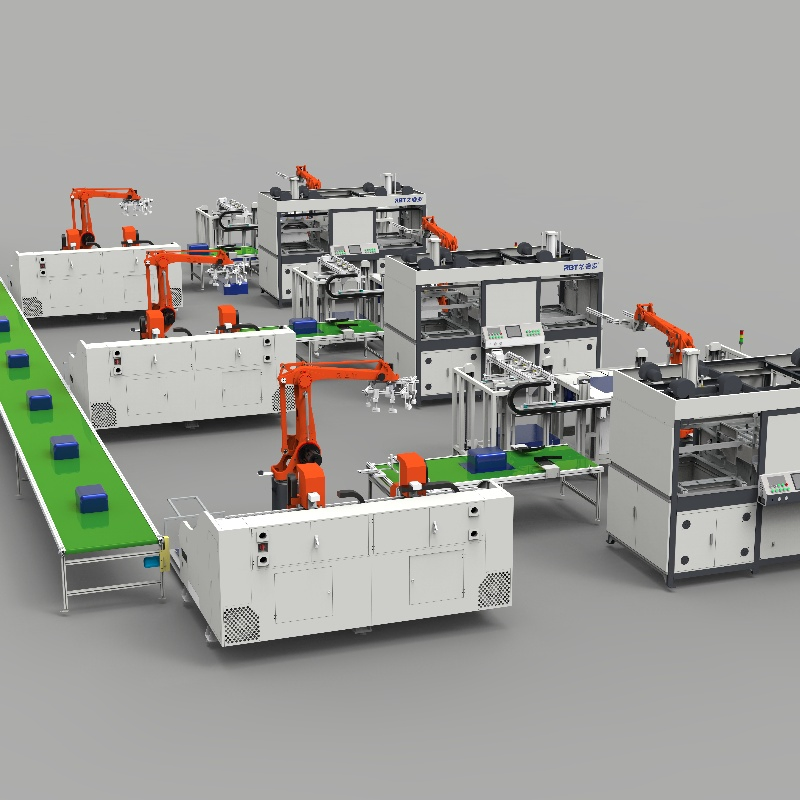

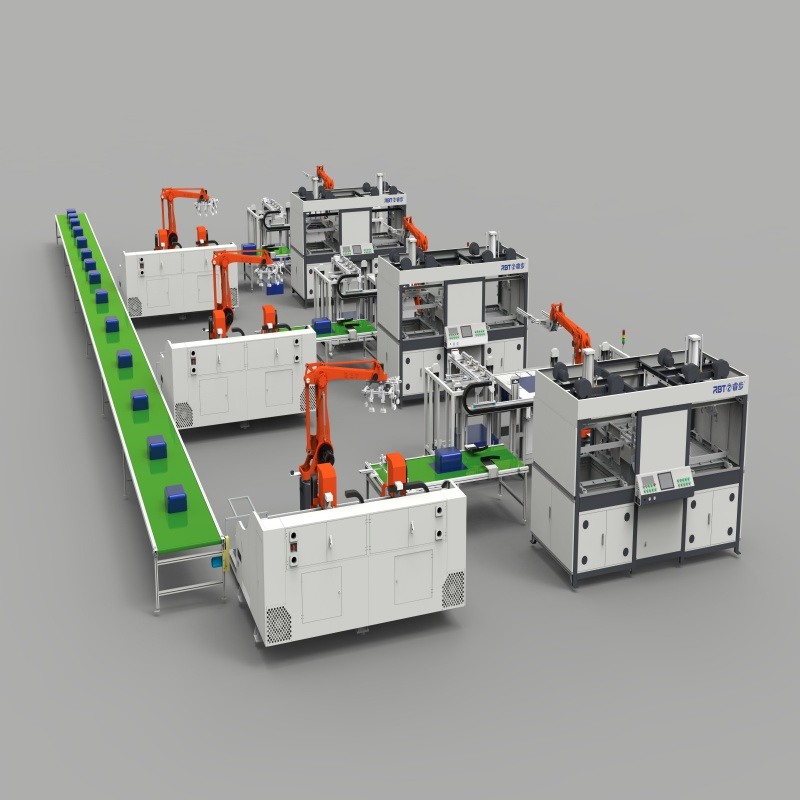

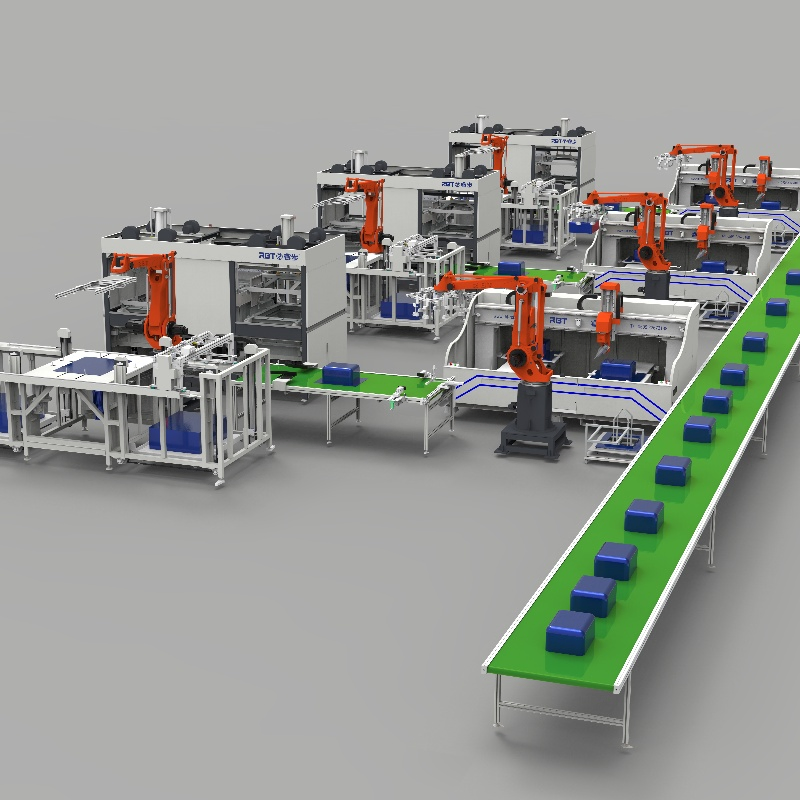

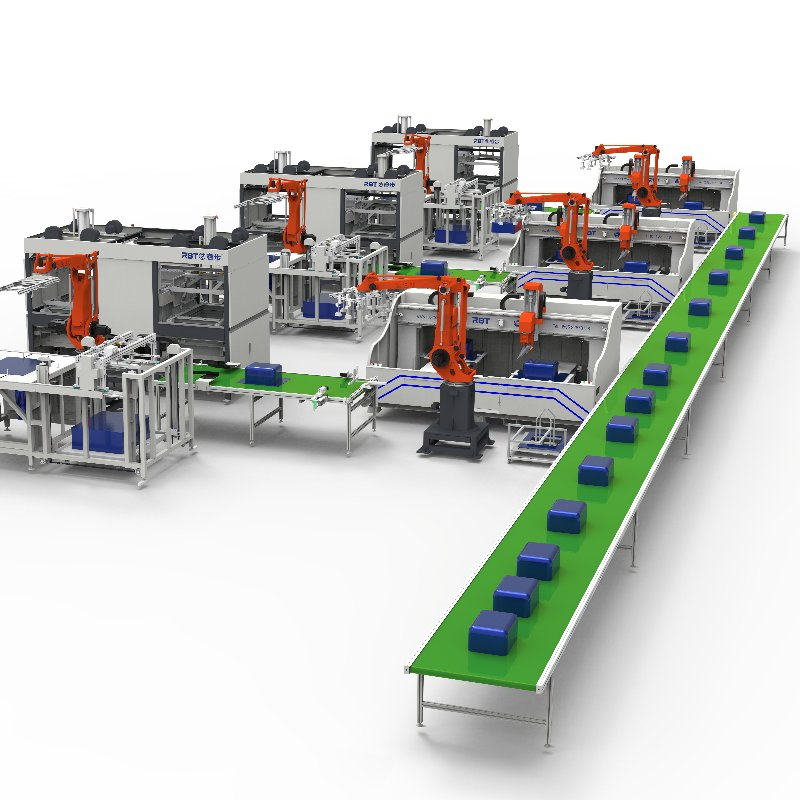

Luggage Hard Shell Intelligent Forming and Trimming Production Line Machine

Customization:	Available
After-sales Service:	Online&Field Service
Warranty:	One Year

📊

Basic Specifications

Model NO.

RB-Z6-01-01

Application

Luggage and Suitcase

Movement Method

Contour Control

Control Method

Closed-Loop Control

Numerical Control

CNC/MNC

Processing Precision

0.01~0.02(mm)

Certification

CE, ISO 9001

Material

PC, PC/ABS, ABS, PE

Voltage

380V

Power

72kw

Production Capacity

10set/Month

📦

Packaging & Delivery

Package Size

600.00cm * 800.00cm * 246.00cm

Gross Weight

35000.000kg

Transport Package

Plastic Stretch Film and Wooden Pack

🚀

Product Characteristics

Unique mechanism design for 20-30 inch plate infinite adjustment, making the use more flexible.
Equipped with manipulator for loading and unloading operations, ensuring simple and convenient processing.
Modular structure design allows for arbitrary combinations of automated production lines to meet different site layouts.
Provides lifelong service and ensures a safe operating process.
User-friendly interface: Advanced control systems for easy operation and adjustment.
Advanced cooling system: Maintains optimal temperature during forming for higher quality and consistency.
High cost performance: Reduces material waste and labor costs through efficient automation.
Compatible with ABS, PC, polypropylene, and other materials for diverse luggage designs.
Durability: Built with robust materials for long-lasting performance under continuous use.
Environmental protection: Designed with energy-saving features and compatibility with recyclable materials.

⚙️

Technical Parameters

Items	Parameter	Items	Configuration
Model	RB-Z6-01-01	Main Unit	Vacuum forming machine * 1

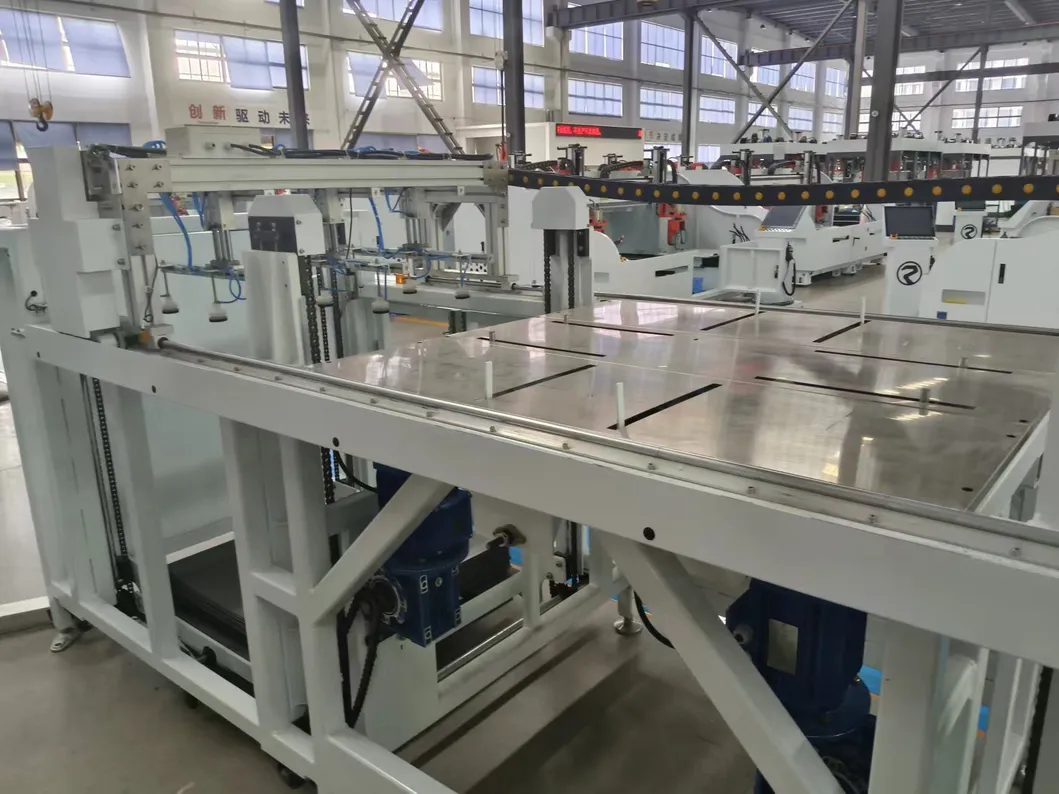

Total Power	72KW	Auto Loading	Auto loading machine * 1
Voltage	380V	Robotics	Robot arm * 2
Weight	3.5T	Fixtures	Sheet pickup fixture * 1 set

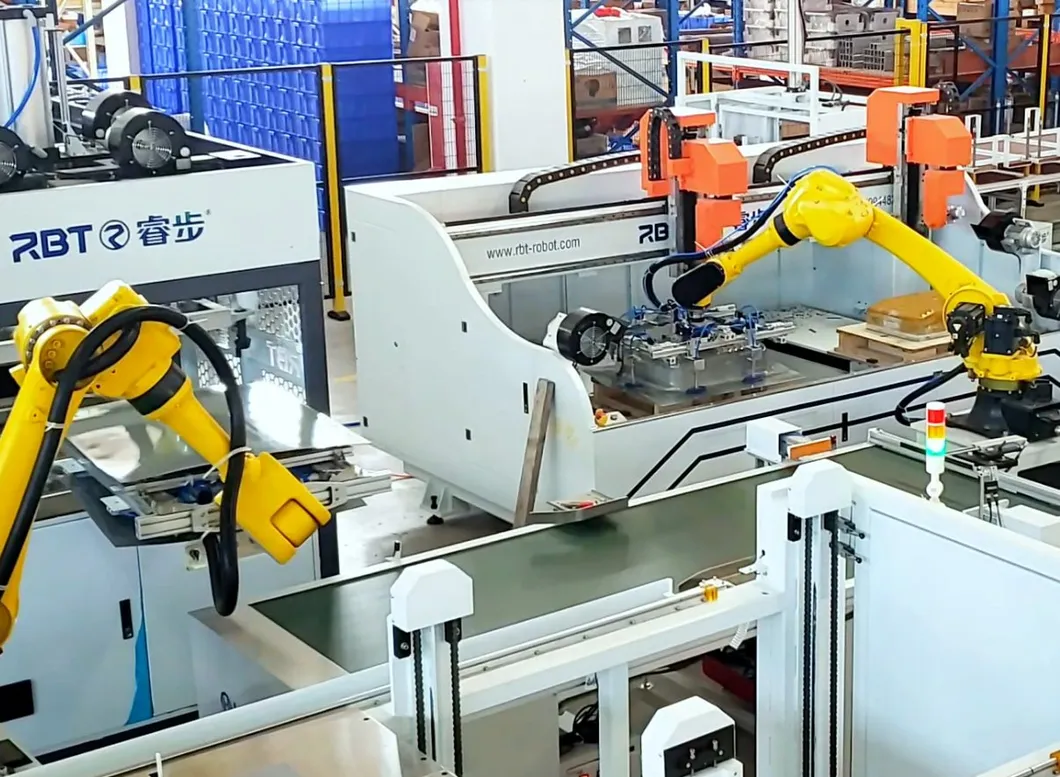

Product Size	20/24/28 (Customizable)	Cutting Unit	CNC cutting machine * 1
Material	PC, PC/ABS	Pickup	Cases pickup fixture * 1 set
CNC Unit	Six or Ten axis CNC	Conveying	Single layer conveying line * 1

🛠️

Scope of Application

Application: Suitable for vacuum forming, trimming and punching of trolley cases such as PC, PC/ABS, ABS, PE, etc.

Industry: Luggage Industry

📸

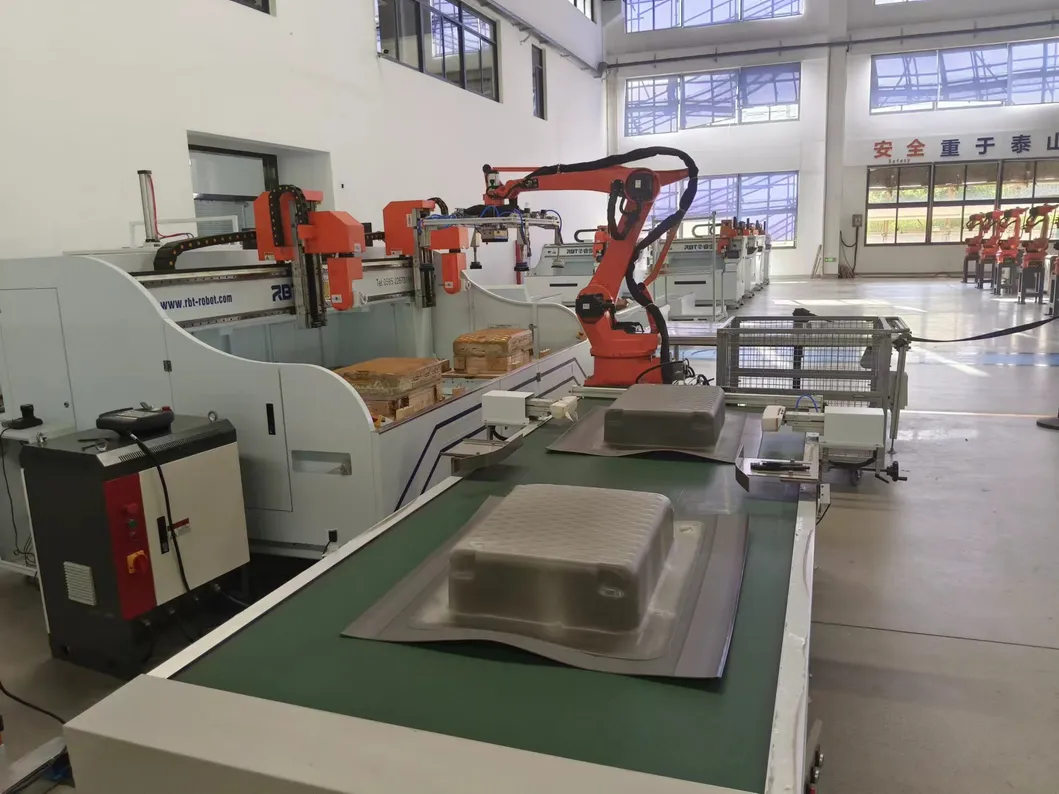

Visual Display

❓

Frequently Asked Questions

What types of materials can this machine process?

The machine is designed to work with a variety of materials including PC, PC/ABS, ABS, and PE, which are standard in the luggage industry.

What suitcase sizes are compatible with this equipment?

The unique mechanism allows for infinite adjustment for plates between 20 to 30 inches, and it can be customized for specific 20/24/28 inch requirements.

How is the machine controlled during the forming process?

It utilizes a Closed-Loop Control system with CNC/MNC numerical control, ensuring high precision (0.01-0.02mm) and consistent quality.

What kind of after-sales support is available?

We provide comprehensive after-sales support including technical support, online assistance, and supply of spare parts to ensure continuous operation.

How is the machine protected during international shipping?

The equipment is wrapped in plastic stretch film and packed in robust plywood wooden cases to prevent damage during container transport.
