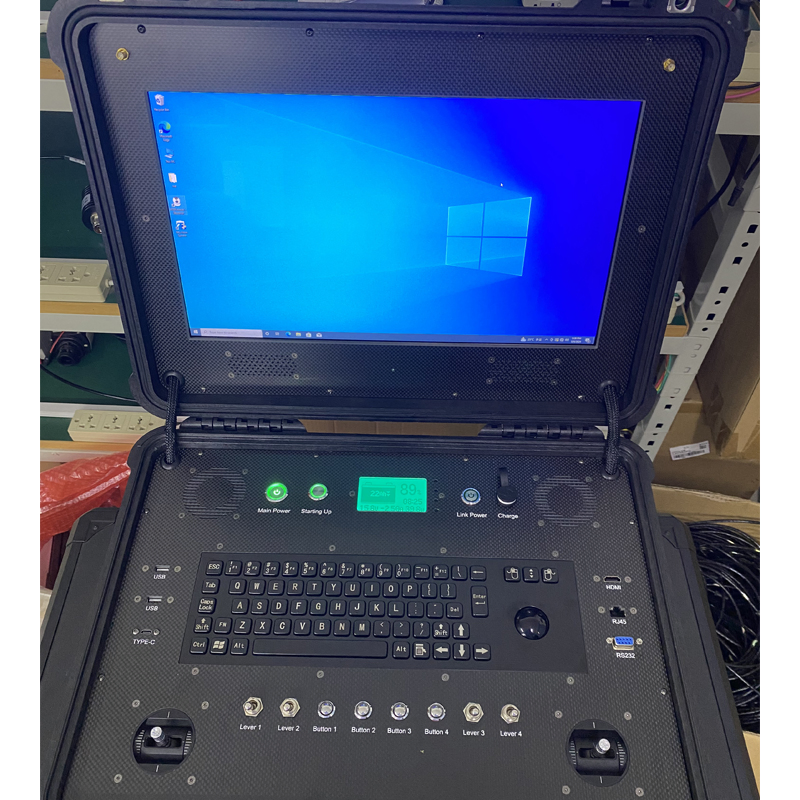

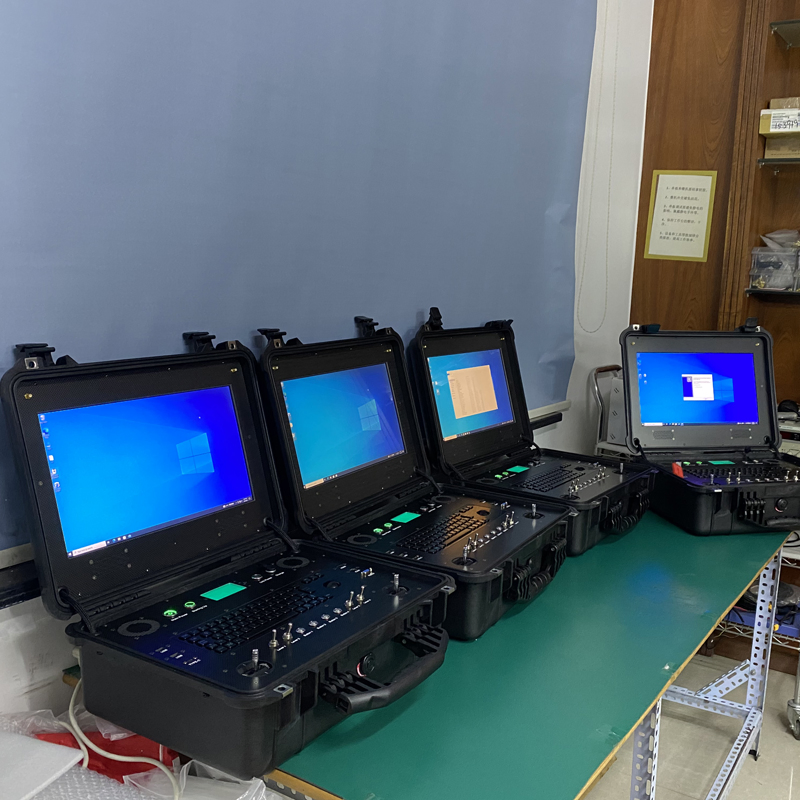

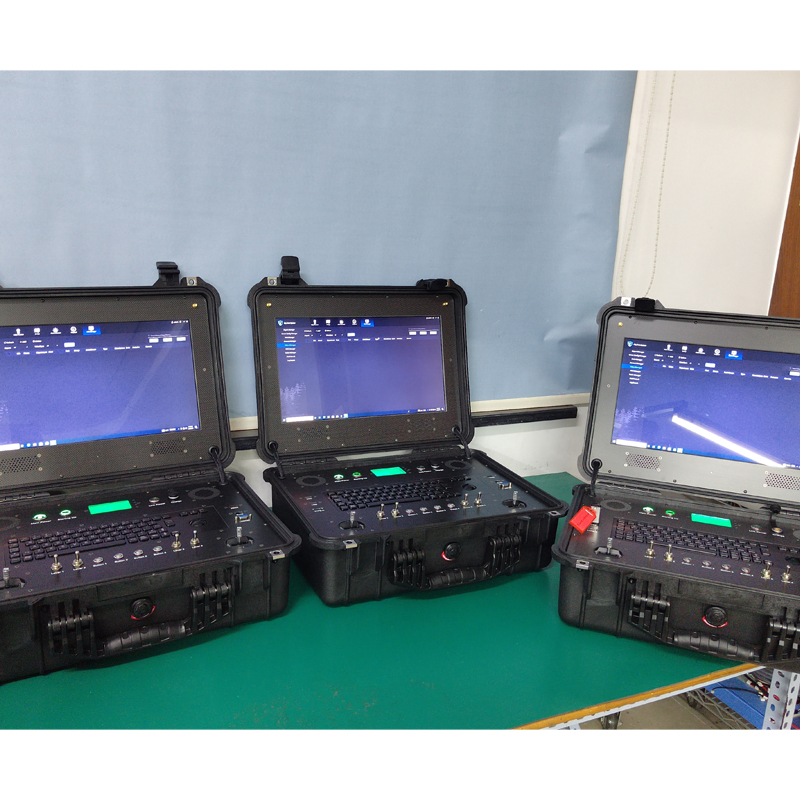

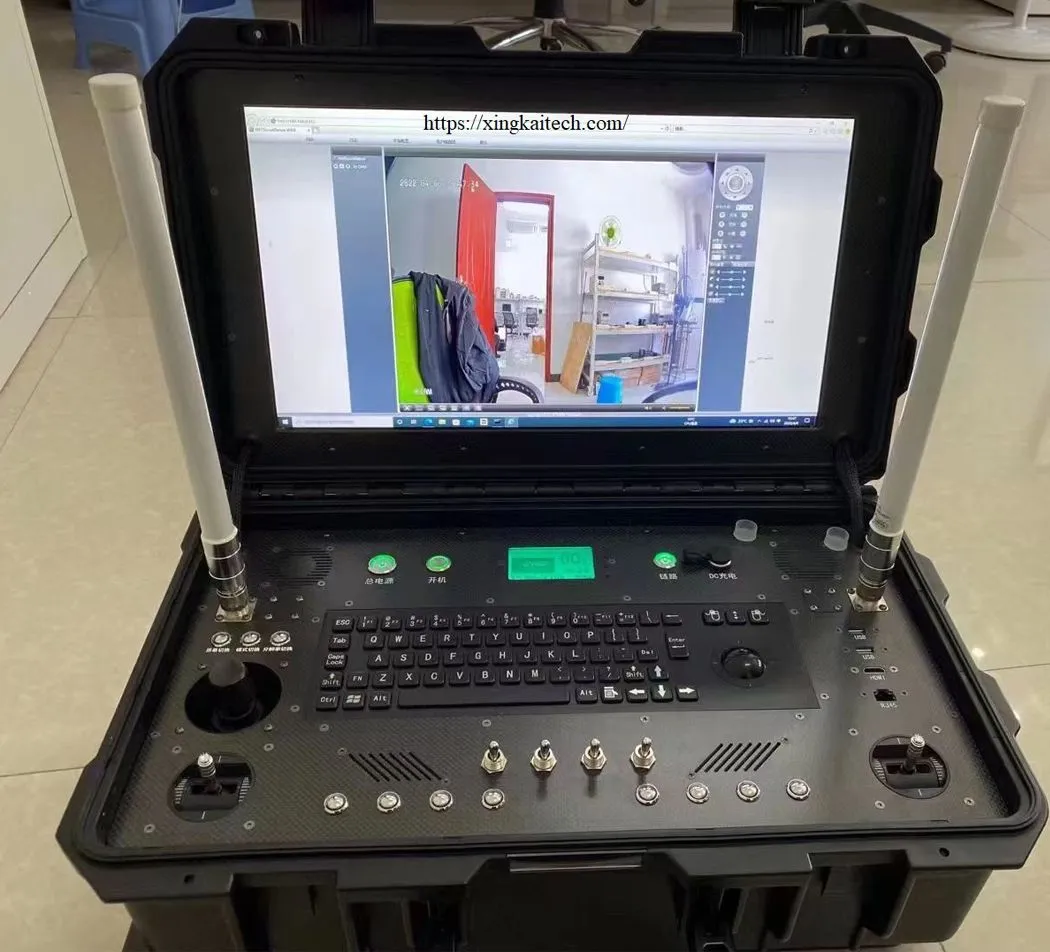

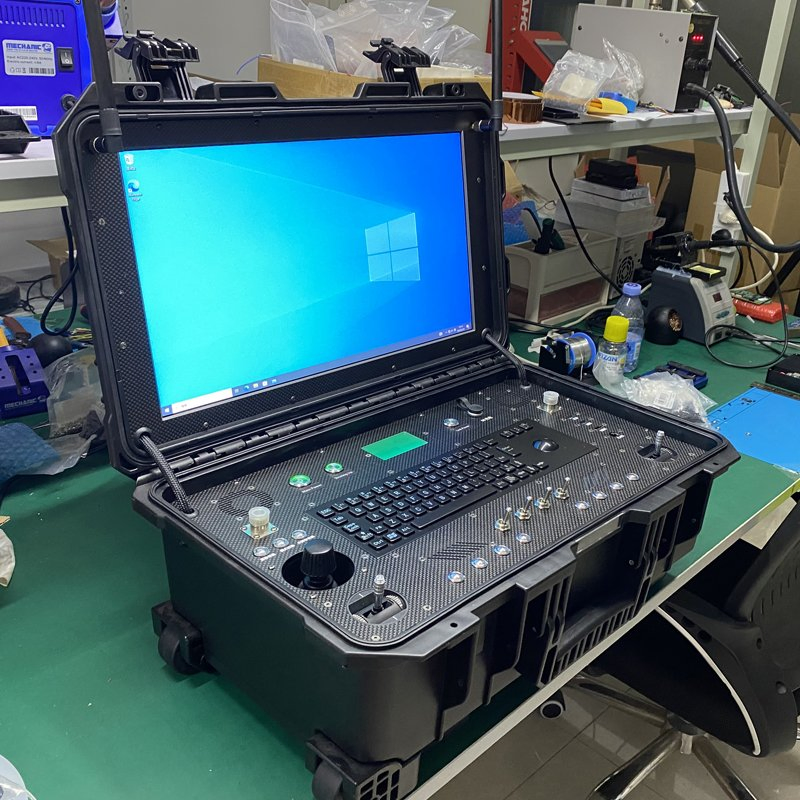

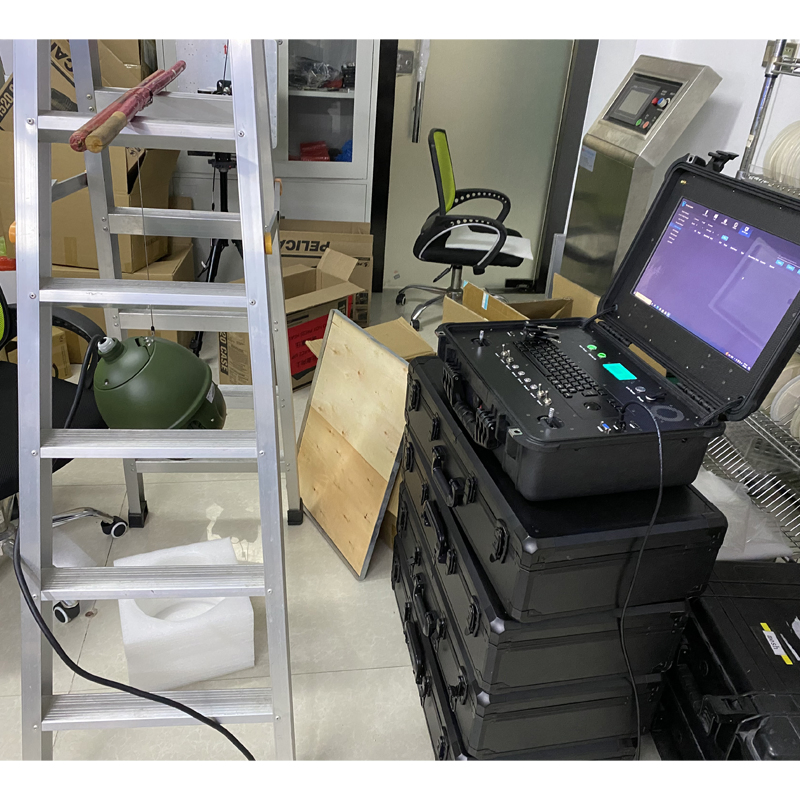

XK-GS300 portable camera control station, the appearance of the suitcase design, easy to carry, using a bright screen, visible in the sun, configured with the mainstream WINDOWS operating system, can be pre-installed with a variety of software.
| Control Station Box | |
|---|---|
| Cover size (L x W x H) | 490mm×390mm×190mm |
| Overall weight | 15KG |
| Shell material | PVC composite materials |
| Protection level | IP67 (Closing IP67) |
| Working temperature | -10°C~60°C |
| Color Type | Matte black |
| Portable features | Ready to use upon opening, with external handle |
| Operation Panel | |
| Panel material | 3K carbon fiber plate material |
| Interface support | USB*2, TYPE-C, DC IN, HDMI, RJ45, RS232 |
| The feeder and interface | SMA interfaces |
| Human computer interaction | 17.3" high brightness screen, mouse and keys |
| Switch parameters | Main power, power on button, link power, three-segment toggle × 2, key × 4, two-end toggle × 2, two-axis rocker × 2 |
| Industrial Control Host | |
| Processor | I7 |
| Operating System | Windows 10 |
| Memory | 16G |
| Hard disk | 256G |
| Display | |
| Size | 17.3 inch |
| Resolution | 1920*1080 |
| Max brightness | 1000nit (Auto-sensing adjustment) |
| Battery & Power Supply | |
| Electricity display | Current voltage, current, remaining capacity, power, etc. |
| Management protection | Overcurrent, overvoltage, low-voltage, over-capacity, over-power protection |
