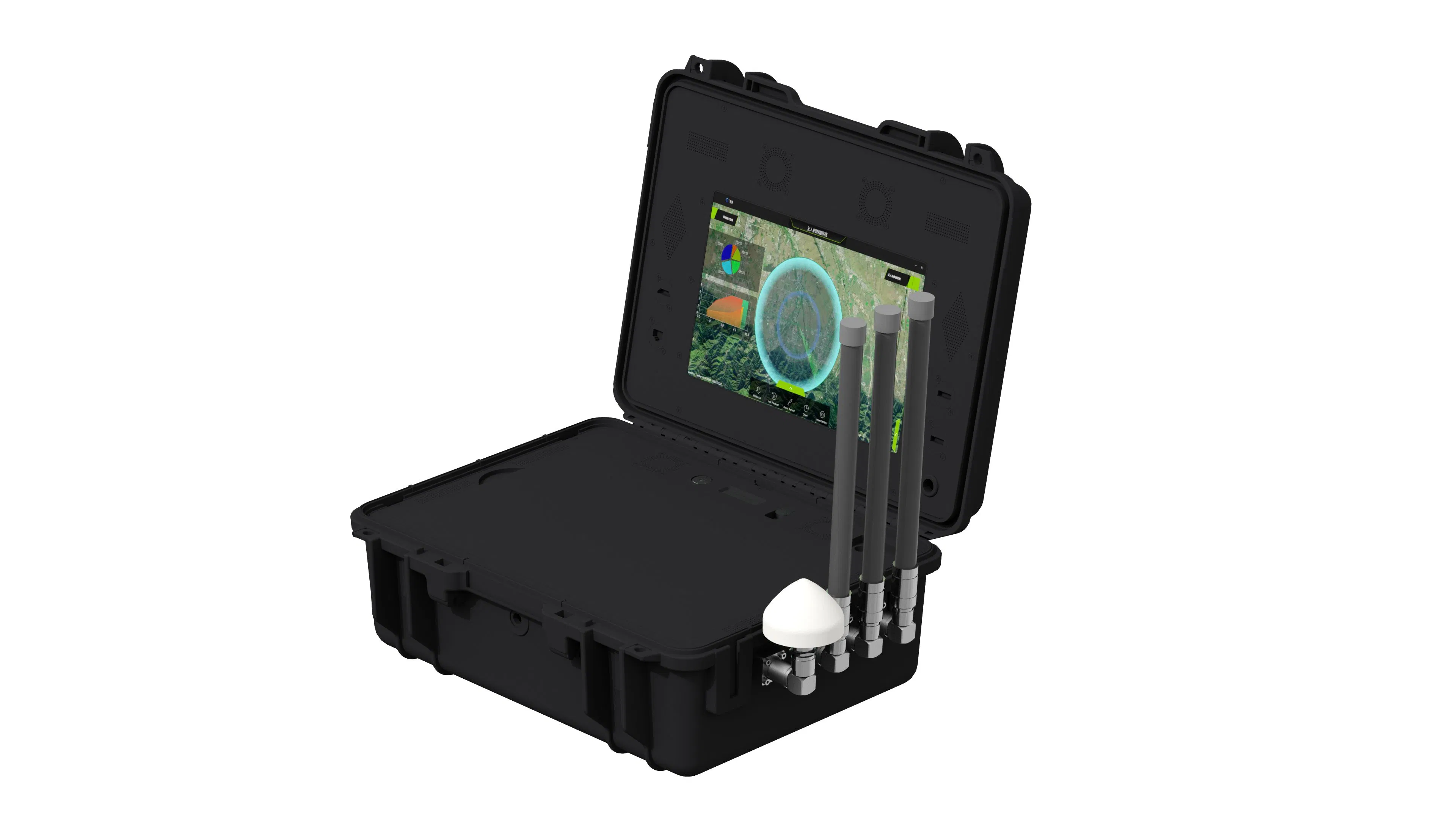

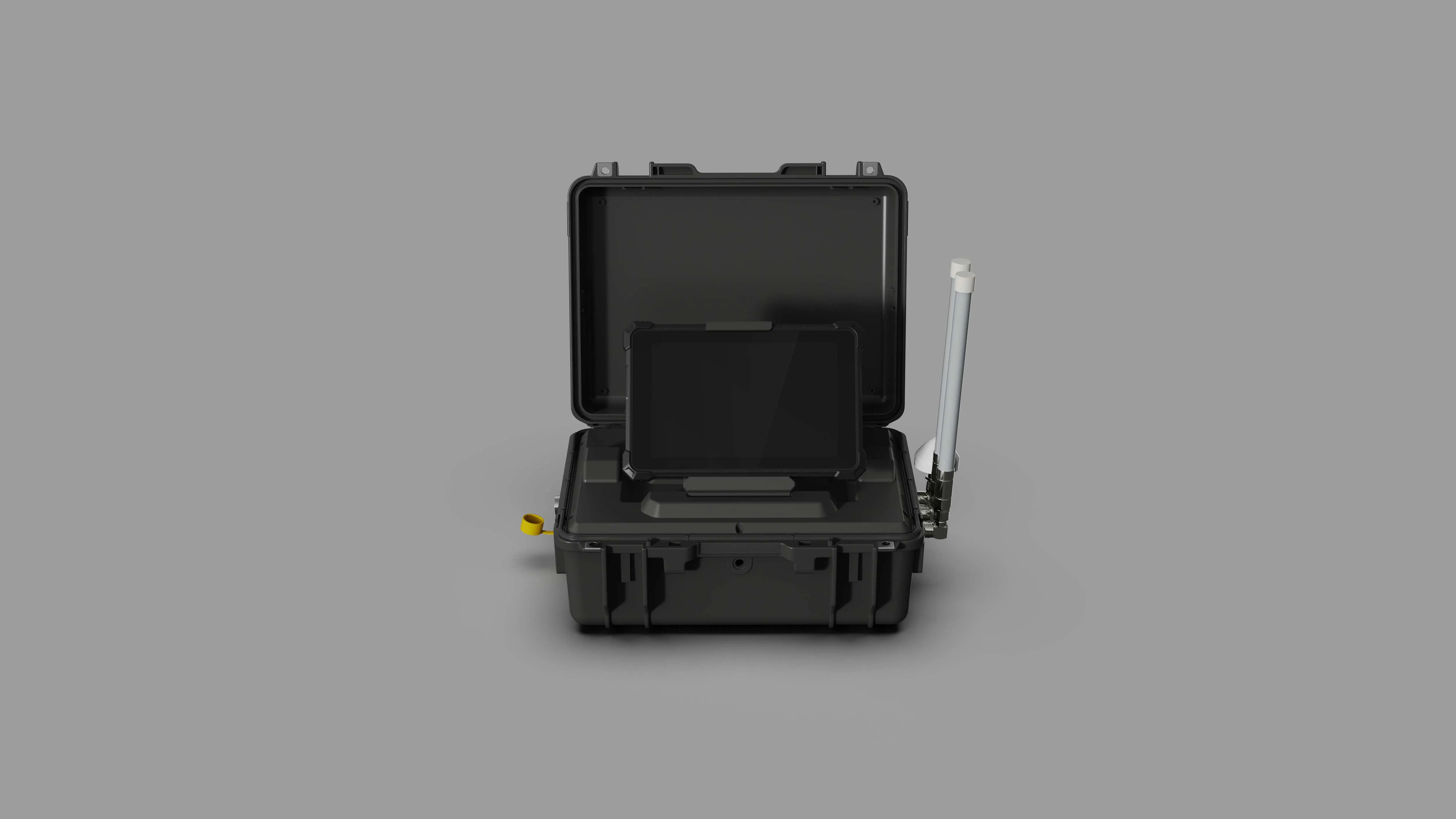

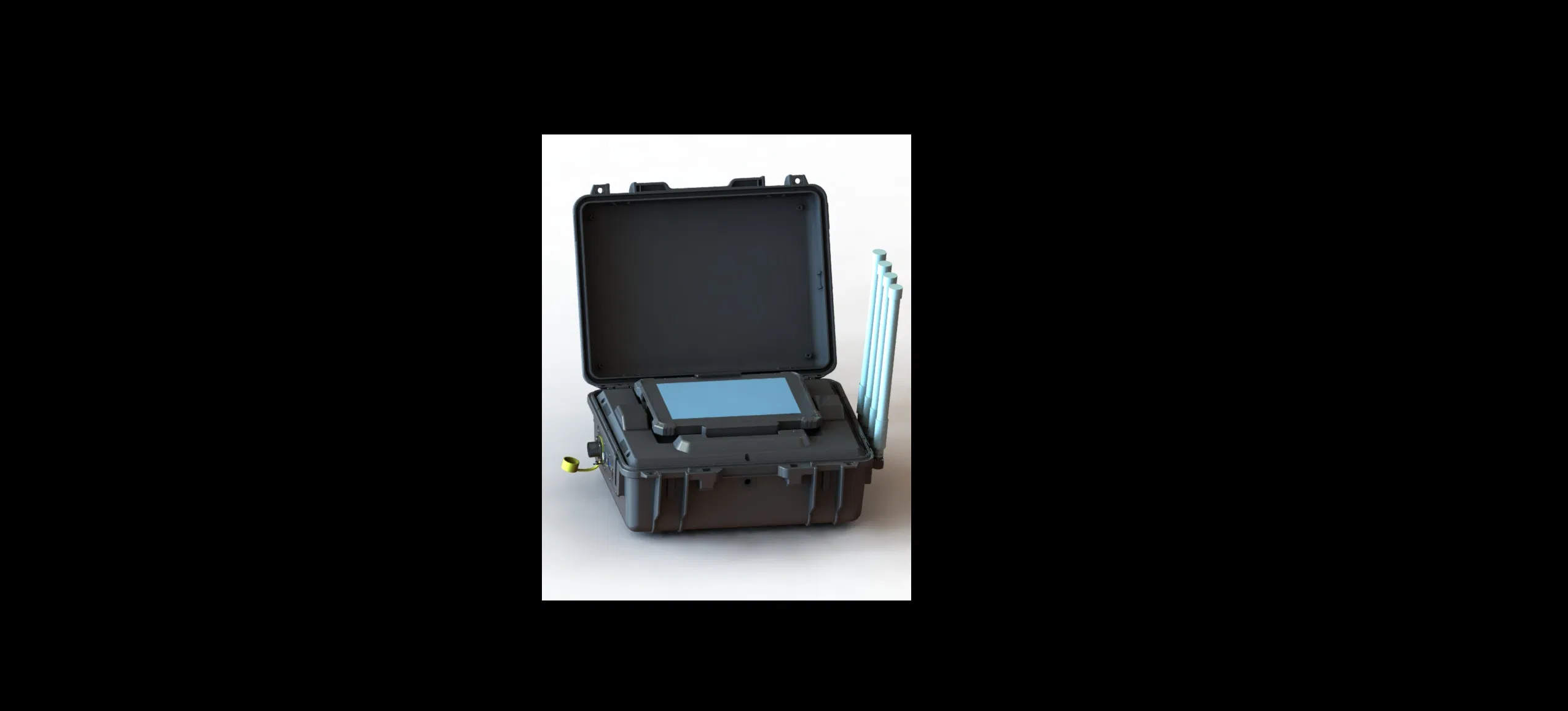

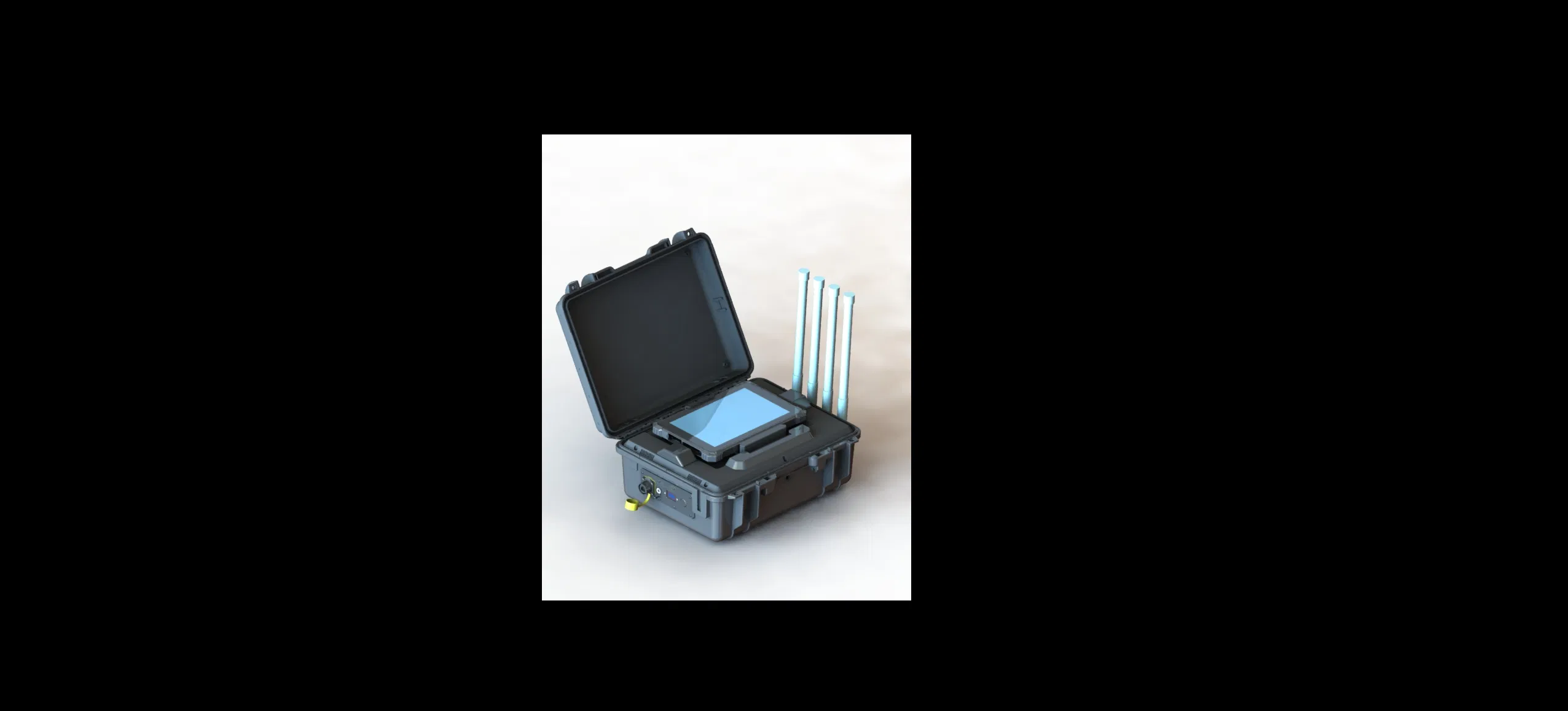

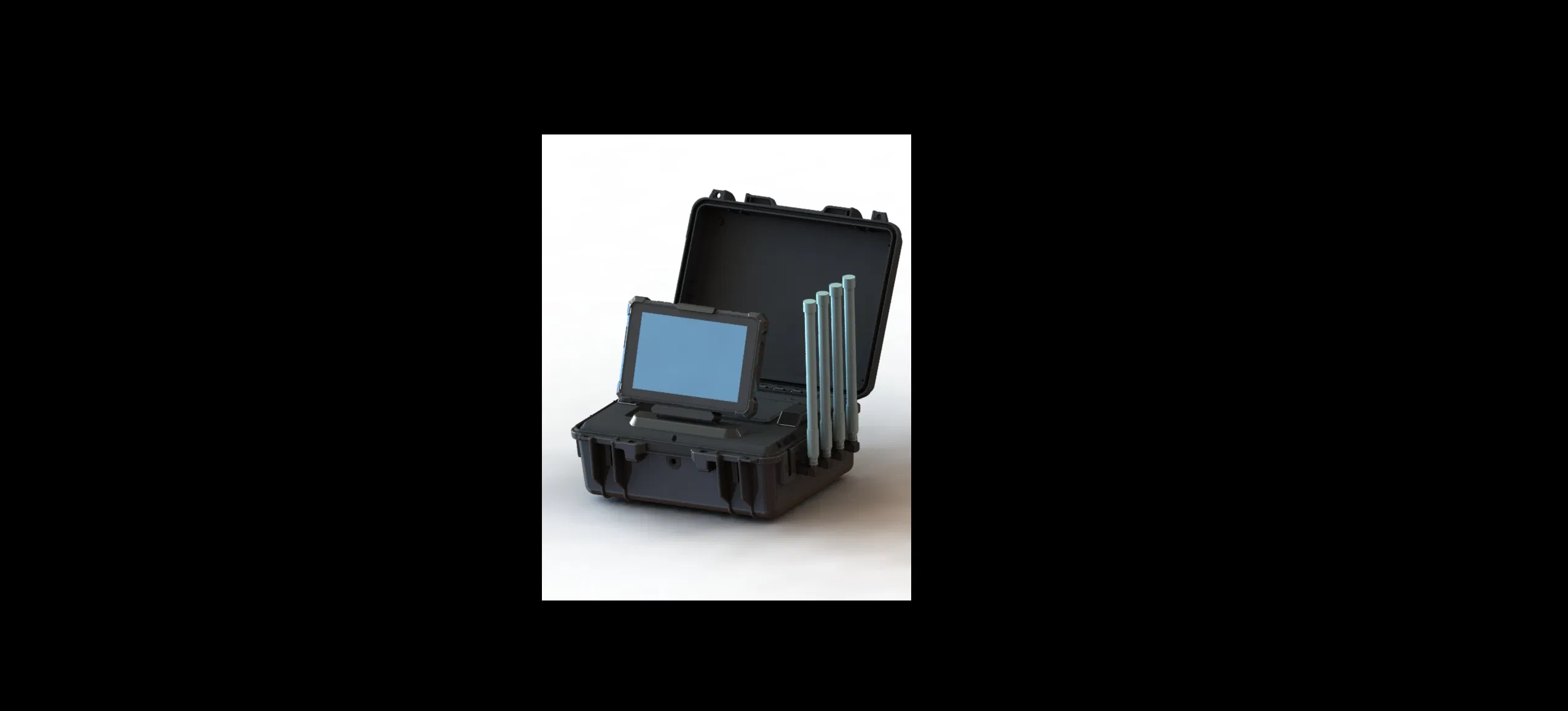

The Single-Soldier Deployable UAV Detection Device is a state-of-the-art portable instrument engineered for extensive long-range surveillance. This cutting-edge device integrates a multitude of functions, including UAV detection and positioning, remote pilot detection and positioning, flight path display, and pre-set black-and-white list management. By deeply analyzing UAV signals, it can precisely recognize the SN code, model, location, trajectory, time, distance, and other pertinent data of all UAVs within its surveillance range.
This indispensable product goes beyond basic early-warning capabilities, delivering a holistic defense strategy against drone intrusions. Its single-user deployable design, coupled with advanced feature integration, makes it a vital component in security protocols. By enhancing early-warning responses, users can swiftly detect and mitigate potential threats, establishing a formidable first line of defense that bolsters overall security measures.
| Supported Frequency Bands | 900MHz, 1.5GHz, 2.4GHz, 5.8GHz (expandable) |
| Operating Range | ≤ 3 km |
| Detectable UAVs | ≥ 10 sorties simultaneously |
| Screen Size | 13.3" (1920 × 1080) |
| Battery Endurance | ≥ 4 h (built-in lithium battery) |
| Charging Method | DC12.6V/10A power adapter |
| Ingress Protection Rating | IP 65 (box closed state) |
| Power Consumption | ≤ 150 W |
| Operating Temperature | -20ºC to 65ºC |
| Weight | ≤ 20 kg (battery, antenna, charger included) |
| Enclosure Dimensions | 567 mm × 467 mm × 274 mm ± 5mm |
*The data in the product specifications may be subject to change.
The device supports a wide range of frequency bands, including 900MHz, 1.5GHz, 2.4GHz, and 5.8GHz, facilitating extensive detection across various drone categories. Its expandable design also ensures it remains adaptable to future frequency band advancements.
With an impressive maximum operating range of up to 3 kilometers, this device offers superior long-distance detection and positioning capabilities. It is perfectly suited for broad applications, ensuring thorough monitoring across extensive areas.
Capable of concurrently detecting over 10 drone sorties, this device is adept at managing congested airspace environments efficiently.
Featuring a 13.3-inch large screen with a 1920×1080 resolution, the device provides a crystal-clear and detailed display. It supports touch screen functionality and external keyboard connections.
With an IP65 protection rating, the device ensures excellent dust and water resistance, guaranteeing operational reliability in challenging environments.
Our steadfast commitment lies in the relentless advancement of UAV defense technology and core algorithms. We delve deeply into the domain of low-altitude security, driven by our dynamic R&D team’s efforts. This dedication has propelled us to the forefront of industry core technologies, including multi-mode satellite signal simulation, open-loop control strategies for UAV navigation spoofing, modular radar digital signal processing, and UAV detection and recognition rooted in deep machine learning and AI-driven interference.

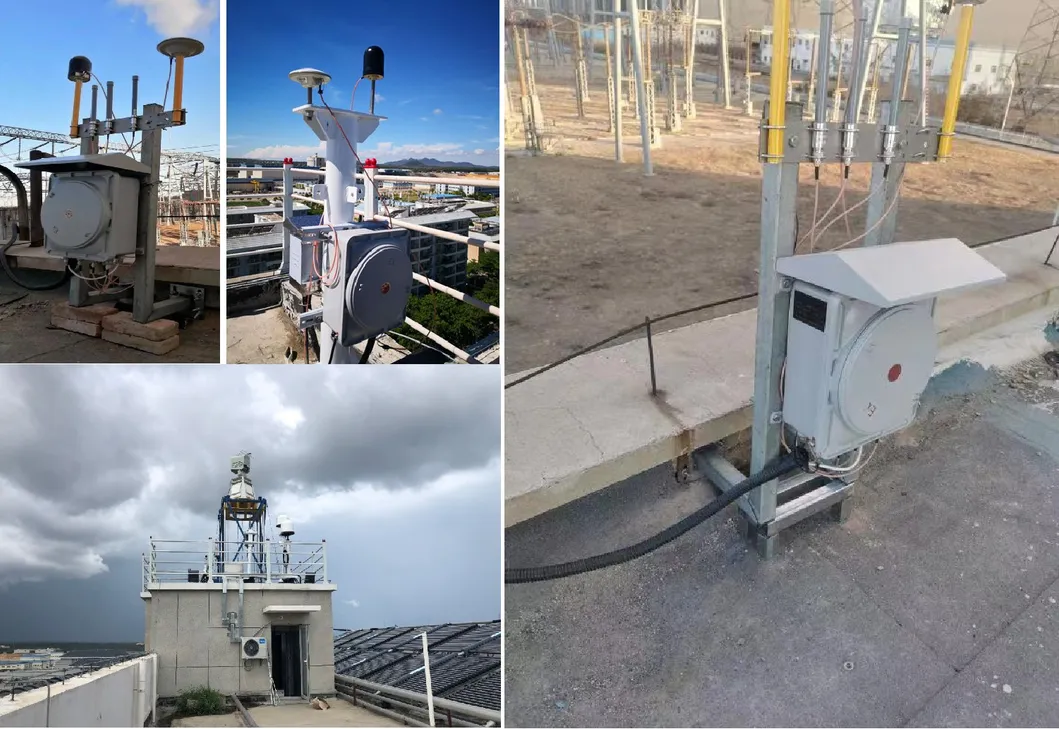

Securing the Power Industry and Counter-terrorism Efforts

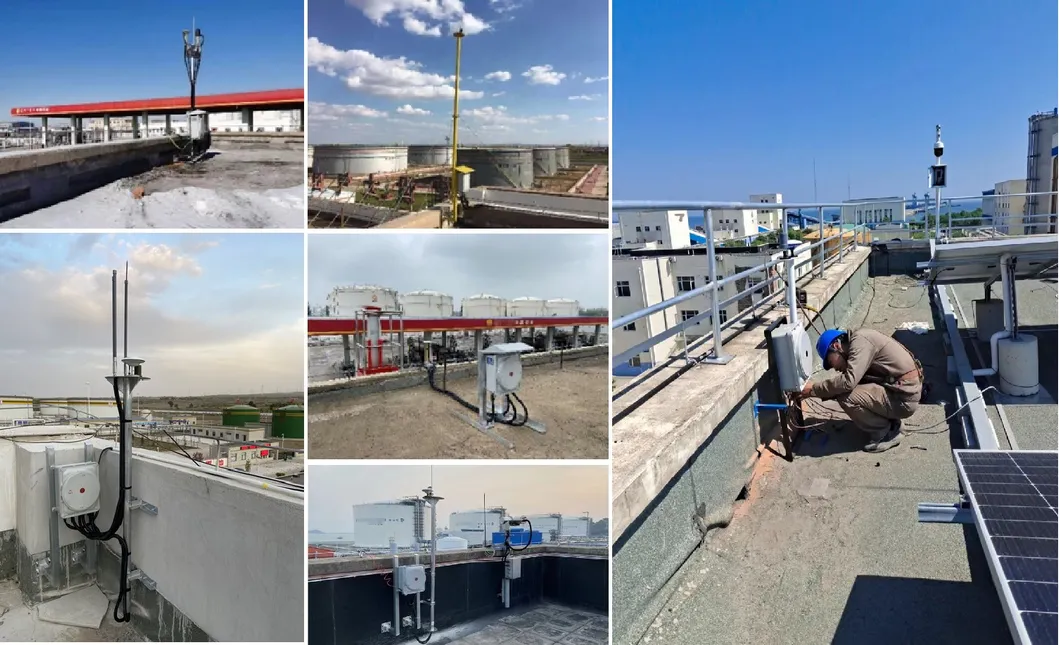

Ensuring Safety and Counter-terrorism in the Oil and Petrochemical Industry

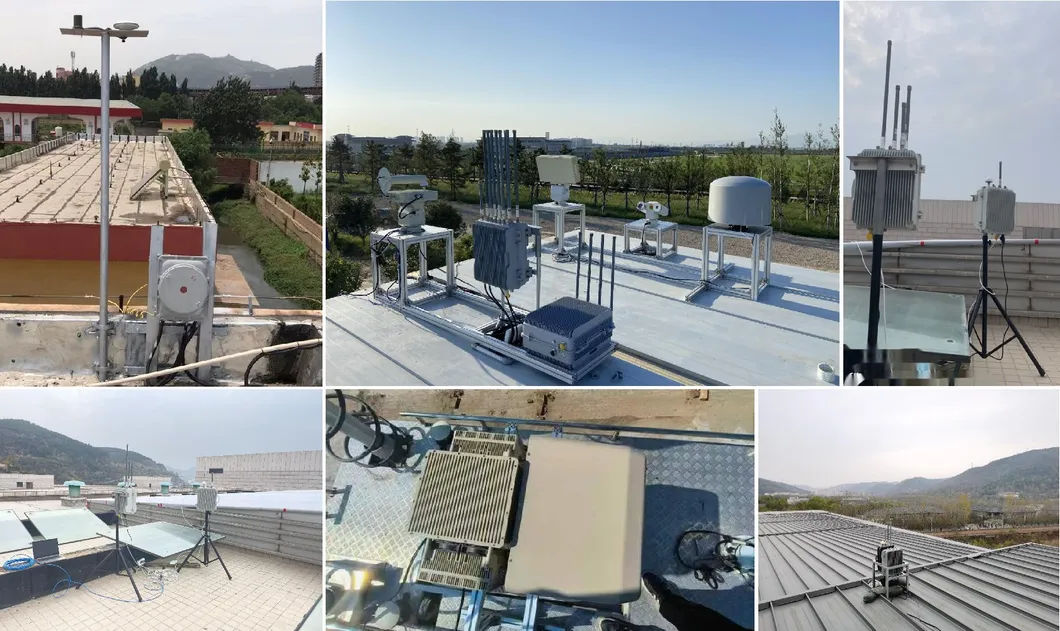

Border Defense and Management of Large-Scale Events

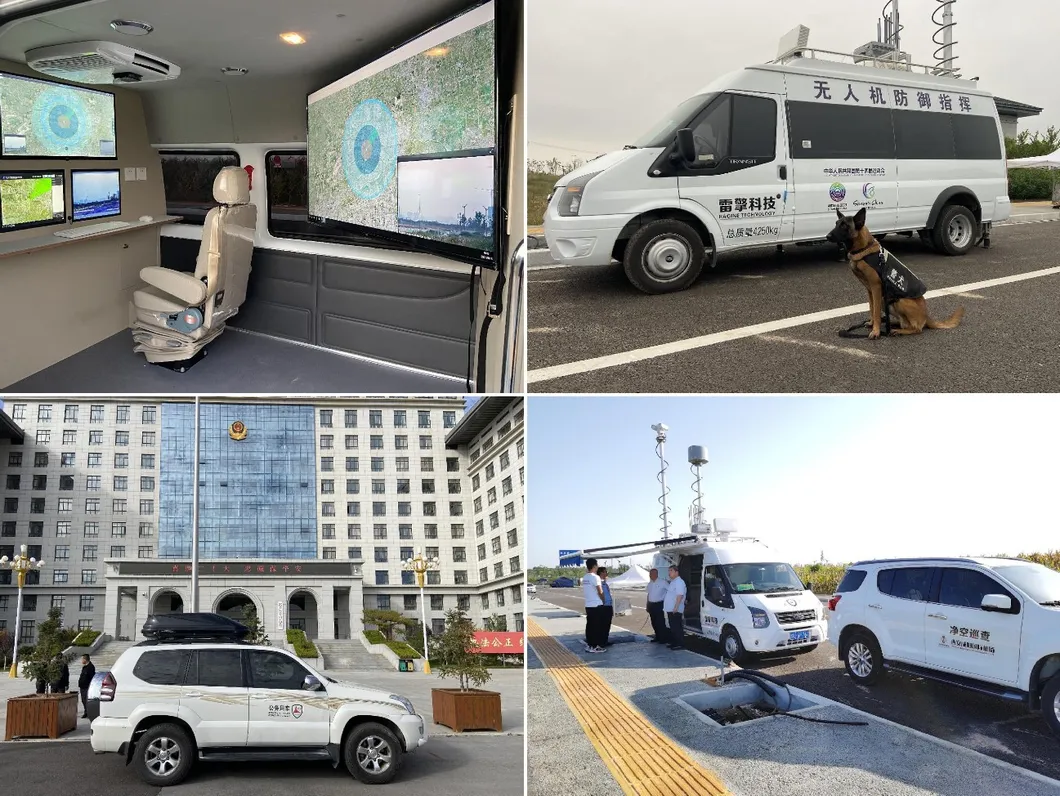

Countermeasure Vehicle
