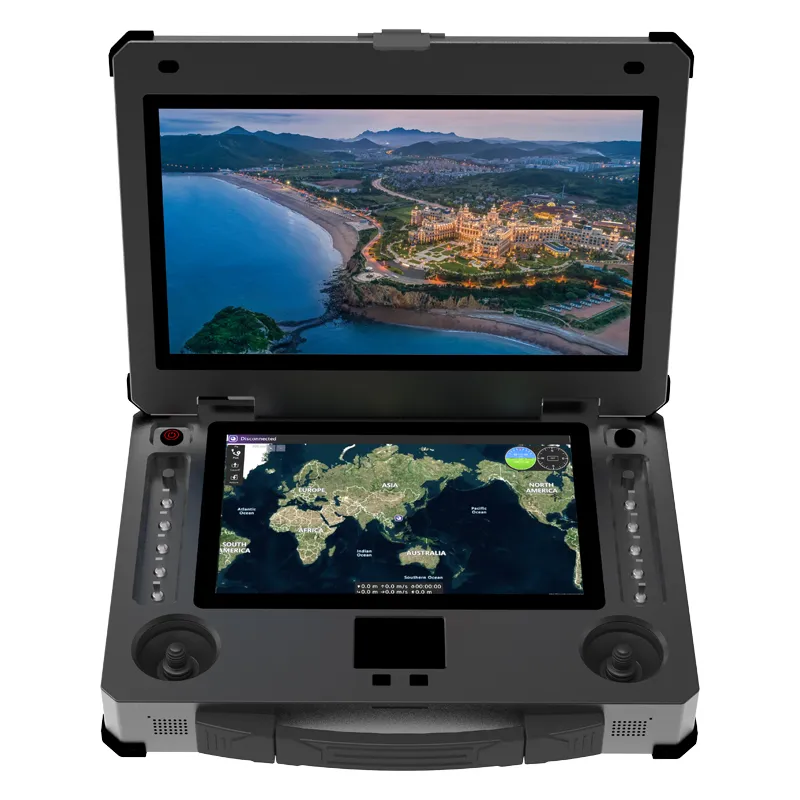

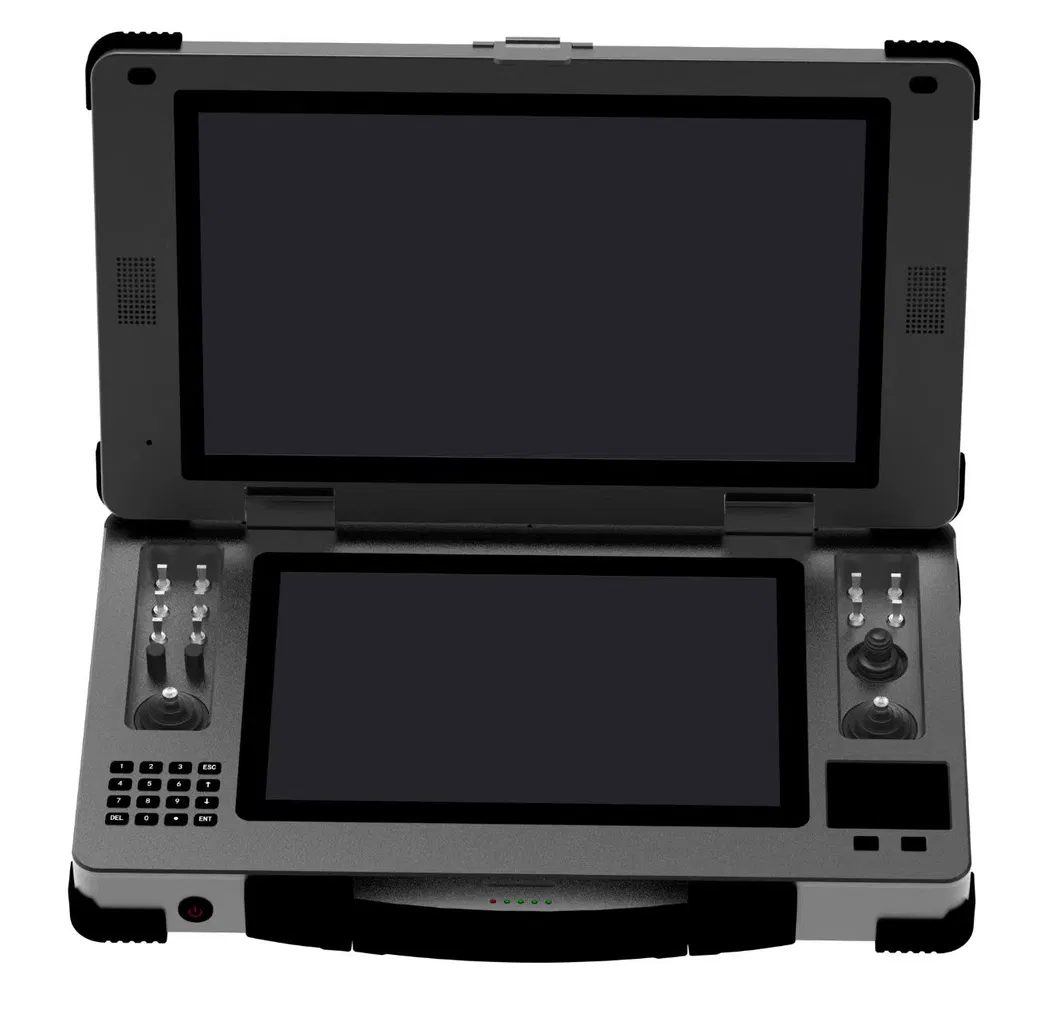

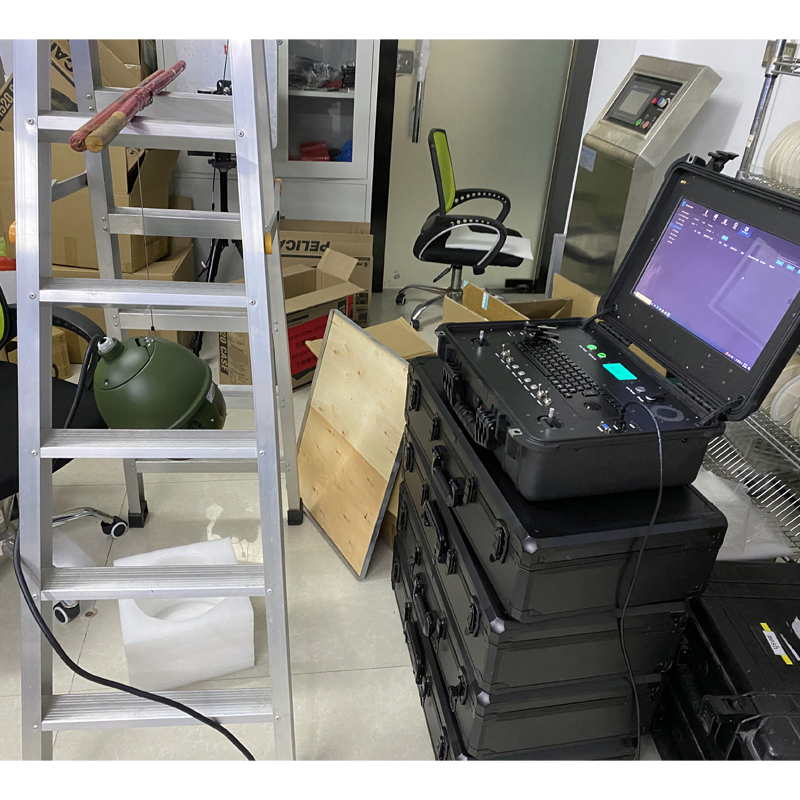

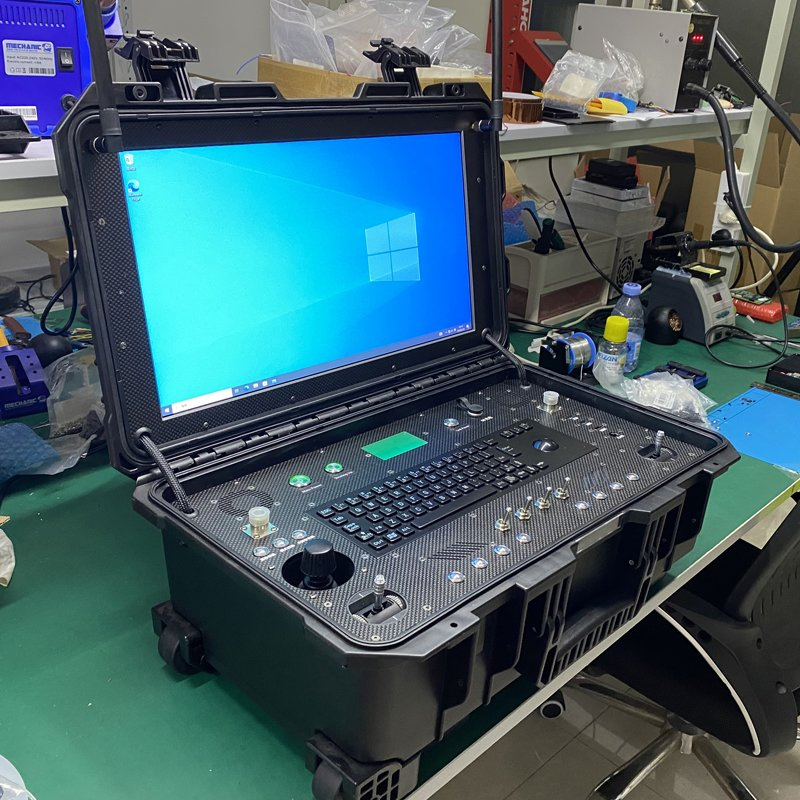

The XK-GS310 portable camera control station features a suitcase design for easy portability. It utilizes a high-brightness screen visible under direct sunlight and is configured with the mainstream WINDOWS operating system, allowing for the pre-installation of various professional software applications.
| Control Station Box | |
| Cover Size | 490mm × 390mm × 190mm |
| Overall Weight | 15KG |
| Shell Material | PVC composite materials |
| Protection Level | IP67 (Closed) |
| Working Temp | -10°C to 60°C |
| Color Type | Matte black |
| Portability | Ready to use upon opening, with external handle |

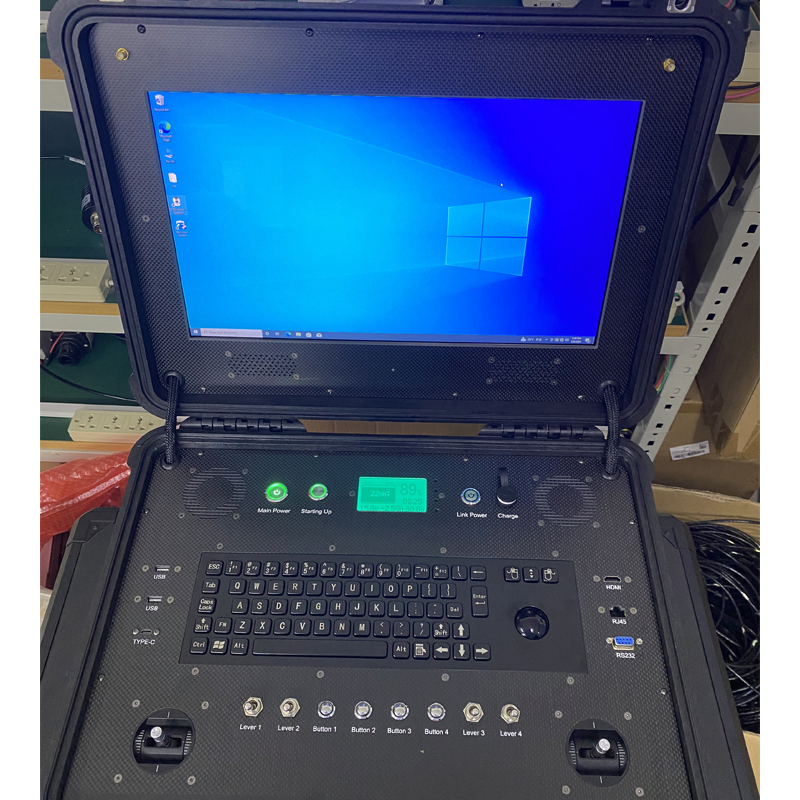

| Operation Panel | |
| Panel Material | 3K carbon fiber plate material |
| Interface Support | USB*2, TYPE-C, DC IN, HDMI, RJ45, RS232 |
| Antenna Interface | SMA interfaces |
| Human-Computer Interaction | 17.3" high brightness screen, mouse and keys |
| Switch Parameters | Main power supply, link power supply, three-segment toggle × 2, key × 4, two-end toggle × 2, two-axis rocker × 2 |
| Industrial Control Host | |
| Processor | i7 |
| Operating System | Windows 10 |
| Memory | 16G |
| Hard Disk | 256G |
| Display Details | |
| Size | 17.3 inch |
| Resolution | 1920*1080 (16:9) |
| Backlight | LED |
| Max Brightness | 1000nit (Auto-sensing adjustment) |
Our team has over 20 years of professional technical experience in design, development, and delivery of end-to-end advanced networking and communication systems. The product range covers MIMO mesh networks, tactical radios, software defined radios, and tactical data links used in defense, surveillance, and broadcast industries.
Packing: Packed in a professional shipping box.
Shipping Ports: Yantian, Shekou, or Hong Kong.
