Product Description

Basic Information

Model NO.

R-Eye-370A

Application

Anti-Drone System/C-Uav

Operating Range

3km

Detection Capacity

10 Sorties Simultaneously

Screen Size

13.3" (1920 × 1080)

Battery Endurance

≥ 4 Hours

IP Rating

IP 65 (Box Closed)

Power Consumption

≤ 150W

Weight

≤ 20 Kg

Dimensions

567mm x 467mm x 274mm

Origin

China

Capacity

500,000 Pieces/Year

Product Introduction

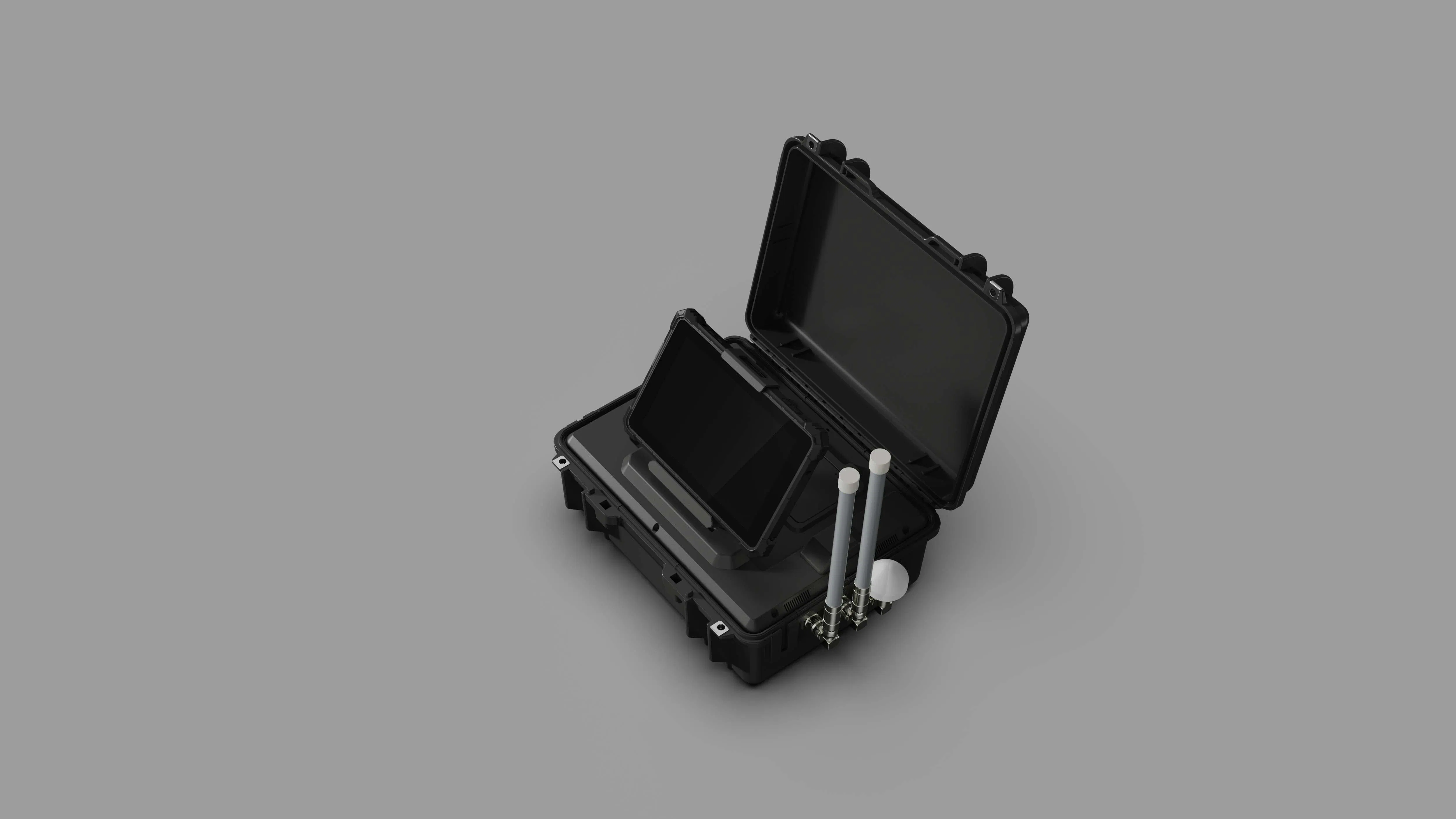

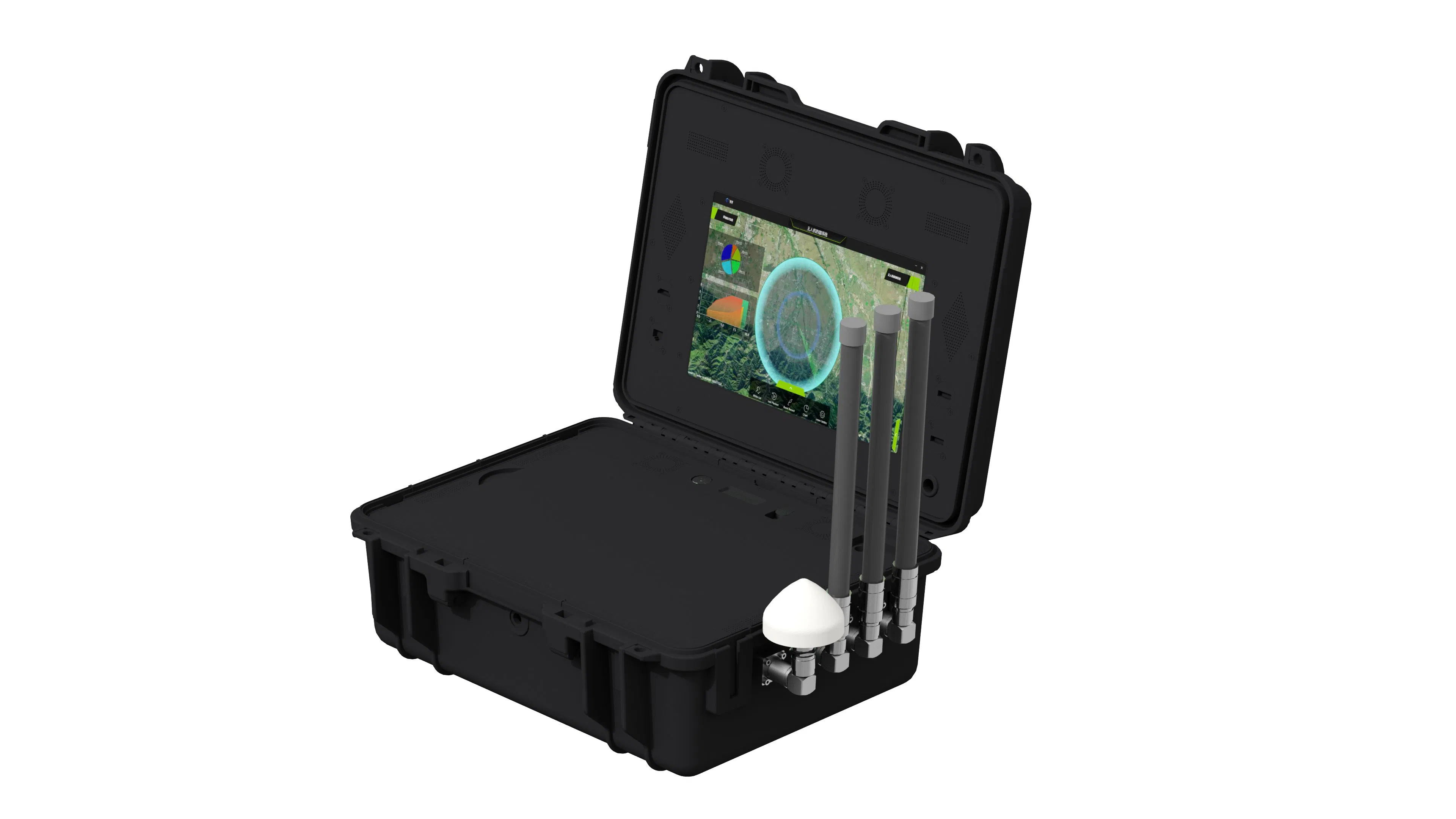

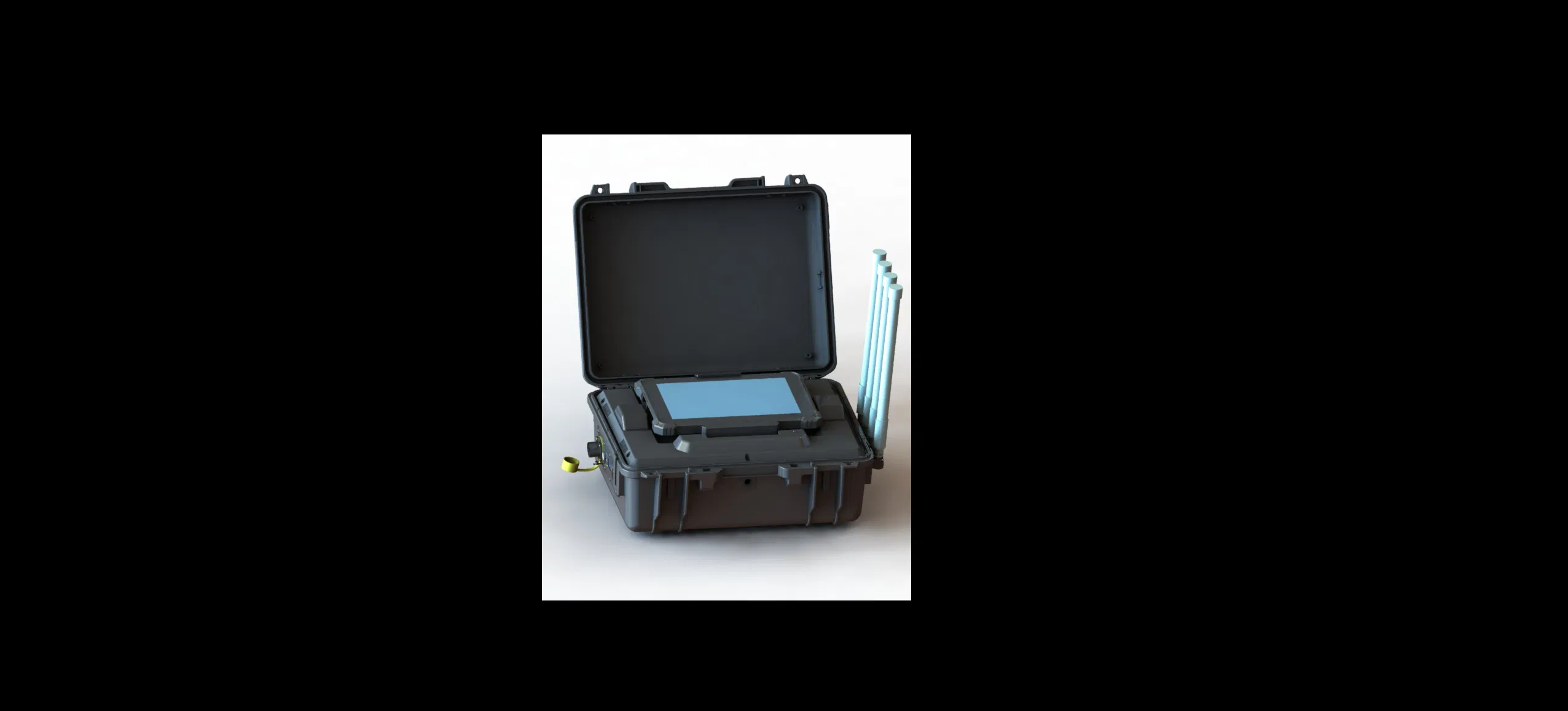

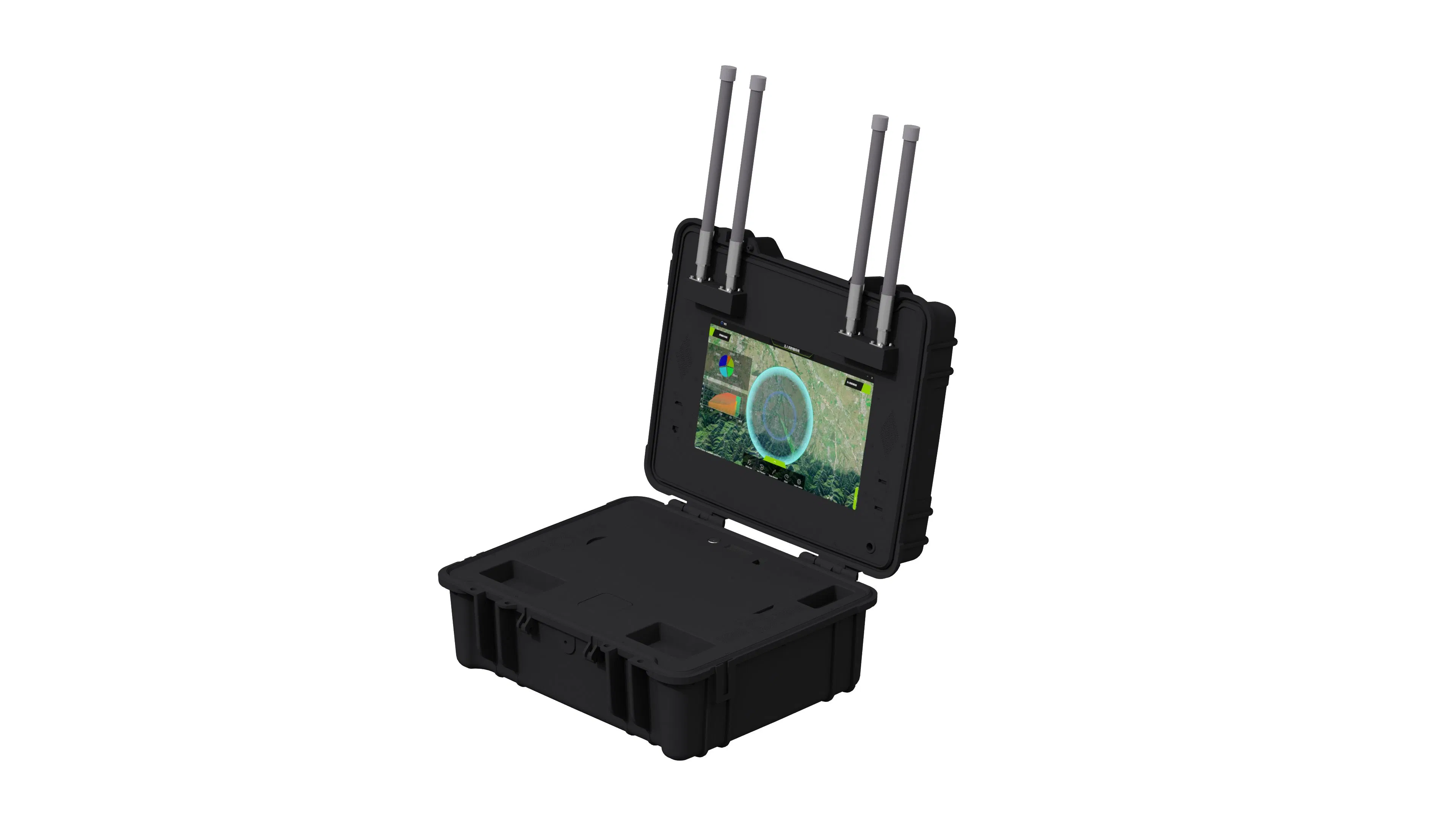

The Advanced Low Altitude Early-Warning Detector is a state-of-the-art portable device offering comprehensive long-range surveillance capabilities. It integrates a suite of features including UAV detection & positioning, UAV remote pilot detection & positioning, flight path display, and pre-set black-and-white list management. By performing a sophisticated analysis of UAV signals, it can accurately determine the SN code, model, positioning, trajectory, time, distance, and other crucial data of all UAVs within its warning range.

◈ Trackable Trajectories

◈ Black-and-white List Support

◈ Portable Deployment

◈ Superb Battery Endurance

Technical Specifications

Supported Frequency Bands	900MHz, 1.5GHz, 2.4GHz, 5.8GHz (expandable)
Operating Range	≤ 3 km
Simultaneous Detection	≥ 10 sorties
Screen Resolution	13.3" (1920 × 1080)
Battery Type	Built-in lithium battery (≥ 4h endurance)
Charging Method	DC12.6V/10A power adapter
Operating Temperature	-20ºC to 65ºC
Protection Rating	IP 65 (box closed state)
System Weight	≤ 20 kg (including accessories)

Performance Analysis

Support for Multiple Frequency Bands: Covers 900MHz, 1.5GHz, 2.4GHz, and 5.8GHz, providing extensive support for diverse types of drones. Adaptable to future frequency band changes.

Exceptional Operating Range: Maximum range up to 3 kilometers, excelling in long-distance detection and positioning for expansive areas.

Visual Interface: 13.3-inch high-resolution screen (1920×1080) with touch functionality and external keyboard support for intuitive operations.

Robust Build: IP65 protection ensures dust and water resistance, suitable for harsh environments and diverse climatic conditions (-20°C to 65°C).

Portable Design: The entire system weighs under 20 kilograms, designed for rapid operational needs and easy transport.

Applications

Oil & Petrochemical Security Power Industry Protection Government Agencies Civil Aviation Airports Large-Scale Events Urban No-Fly Zones Logistics Bases

Product Gallery

Professional Qualifications & Support

Comprehensive Support for Partners

Field Application Photos

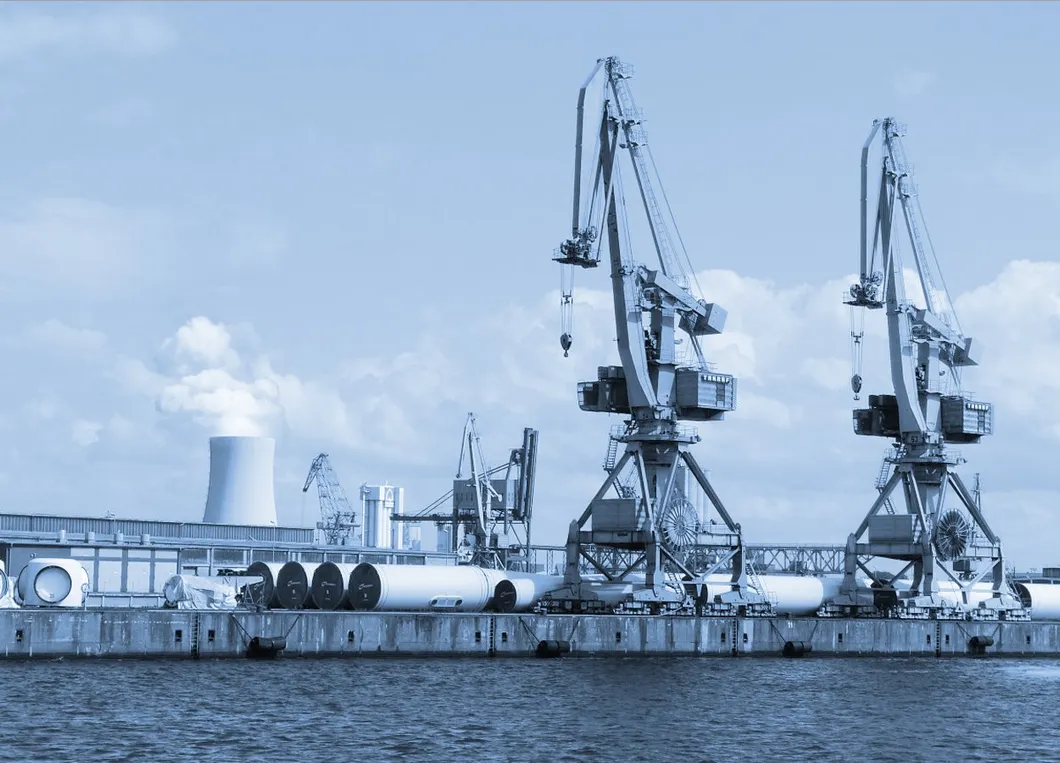

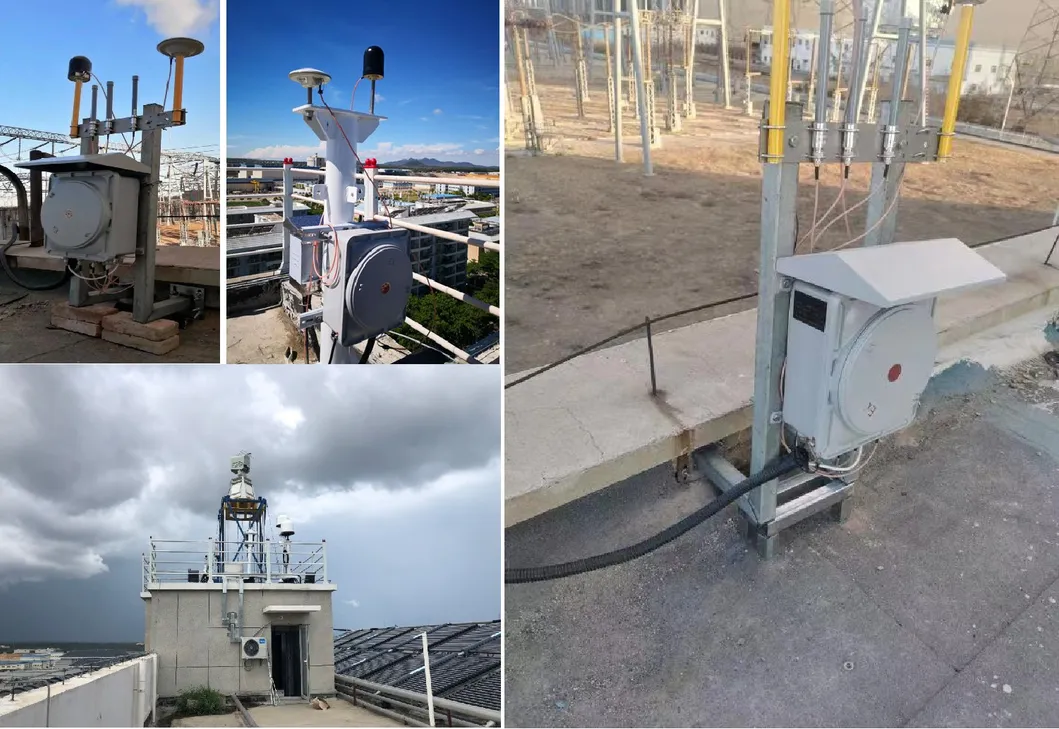

Security and Counter-terrorism in the Power Industry

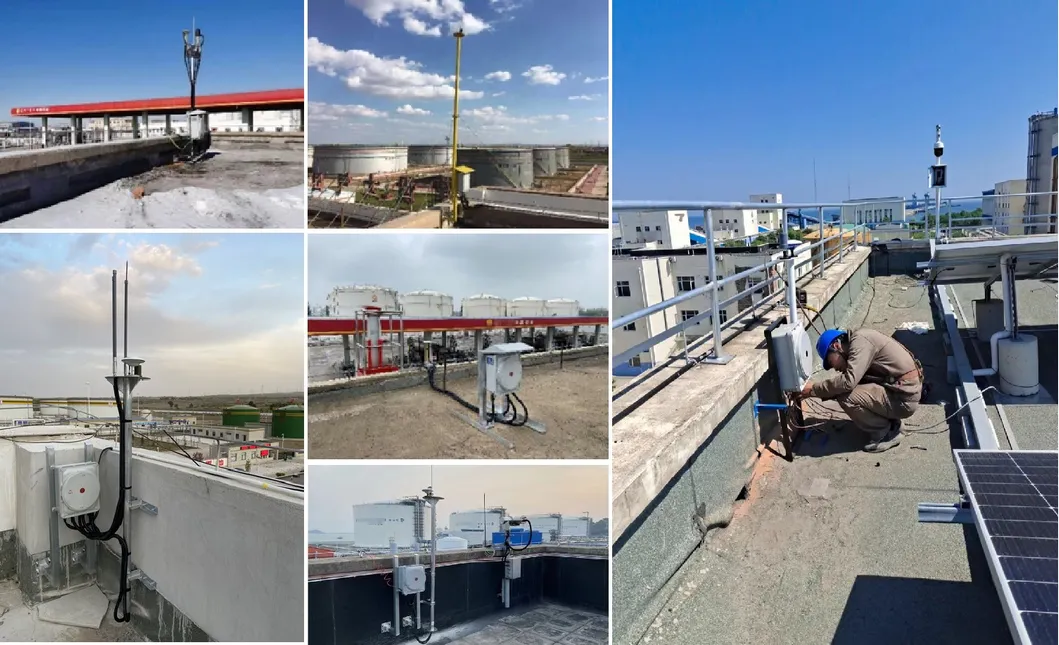

Security and Counter-terrorism in the Oil and Petrochemical Industry

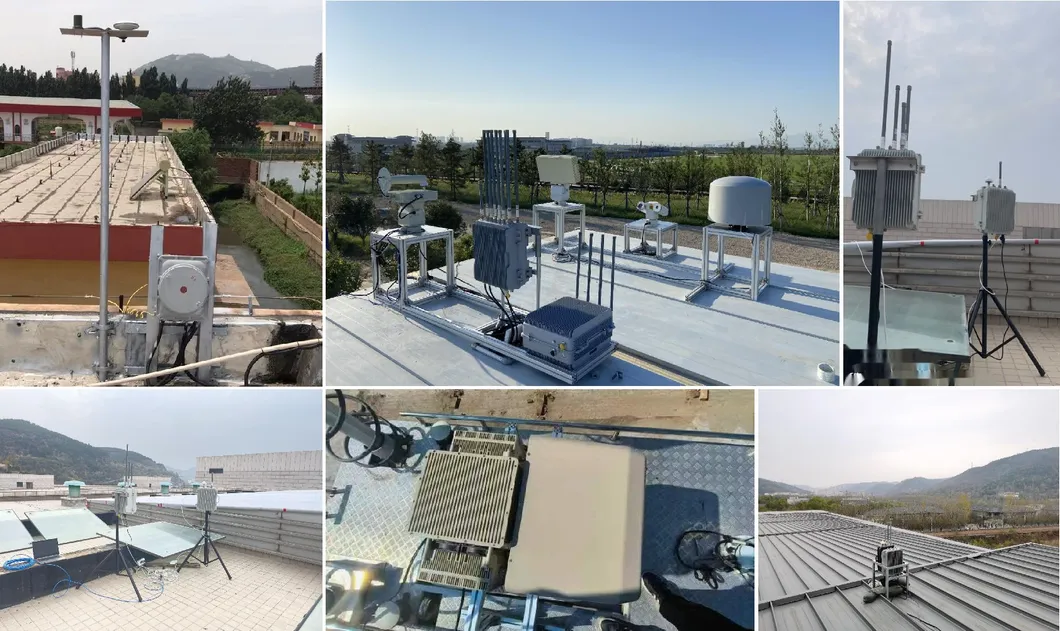

Border Defense and Large-Scale Events

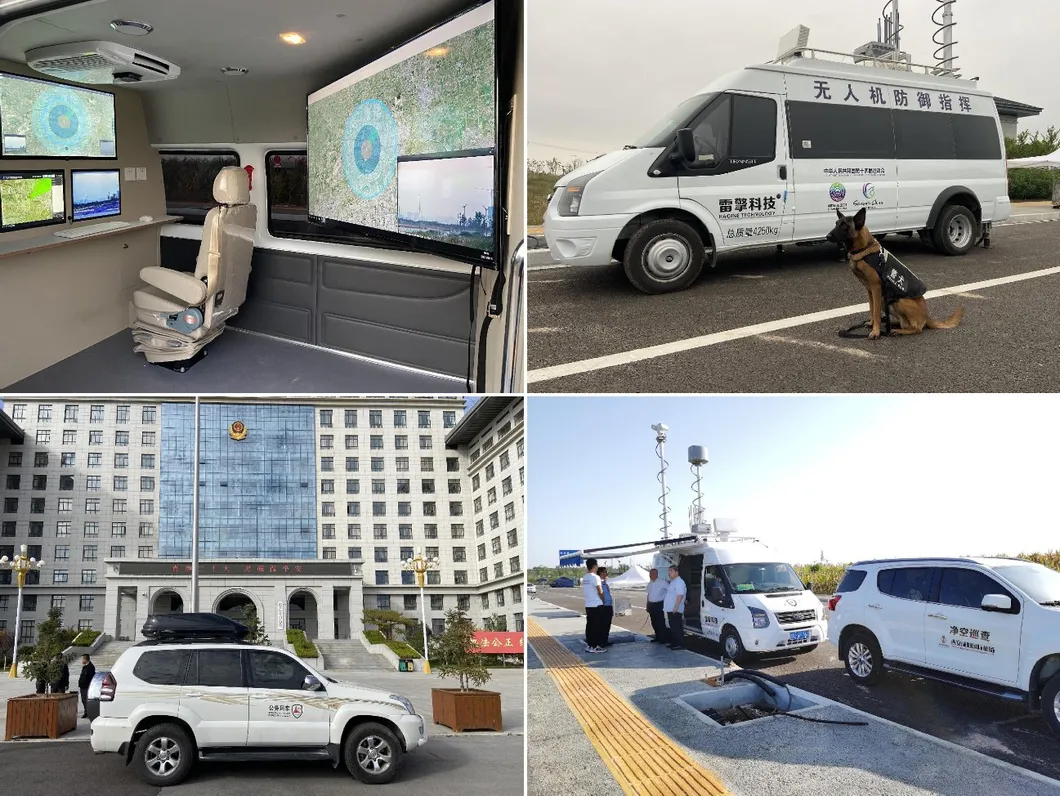

Countermeasure Vehicle Integration

Frequently Asked Questions

1. What types of drones can your products detect? Our systems are capable of identifying a wide range of mainstream models, including DJI, AUTEL, custom-built DIY drones, WiFi drones, and FPV drones, among others.

2. What is the range of your anti-drone systems? The detection range varies by model, generally covering between 1 to 5 kilometers. The R-Eye-370A specifically offers a stable range of up to 3km.

3. Do you accept OEM/ODM orders? Yes, both ODM & OEM orders are welcome. We can customize brand logos, colors, and frequencies to meet your specific operational requirements.

4. Can the products be used in all weather conditions? Yes, our products are engineered with an IP65 rating to perform reliably in various conditions, including rain, snow, and high temperatures (-20°C to 65°C).

5. What is the response time of the detection system? Our state-of-the-art systems boast a response time typically within mere seconds, ensuring unparalleled security and immediate threat identification.

6. Is special training required to operate the equipment? Despite the user-friendly design and 13.3" touch interface, we provide comprehensive manuals and support to ensure users operate the systems with maximum efficiency.
